Description
Overview

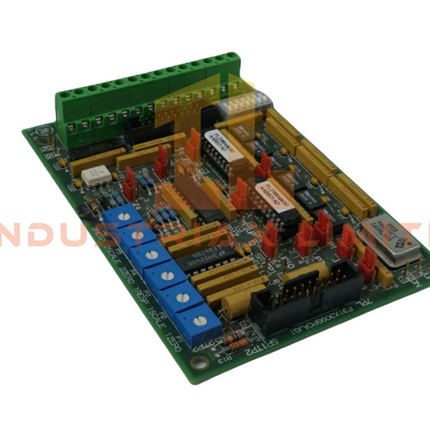

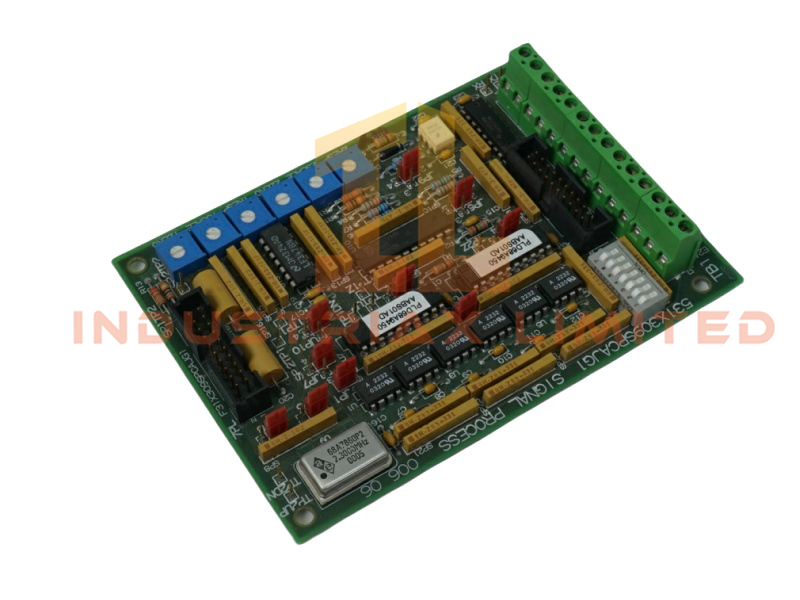

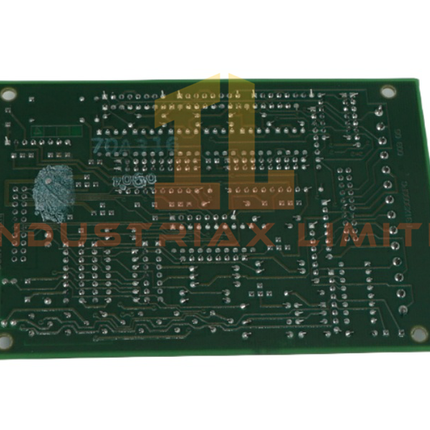

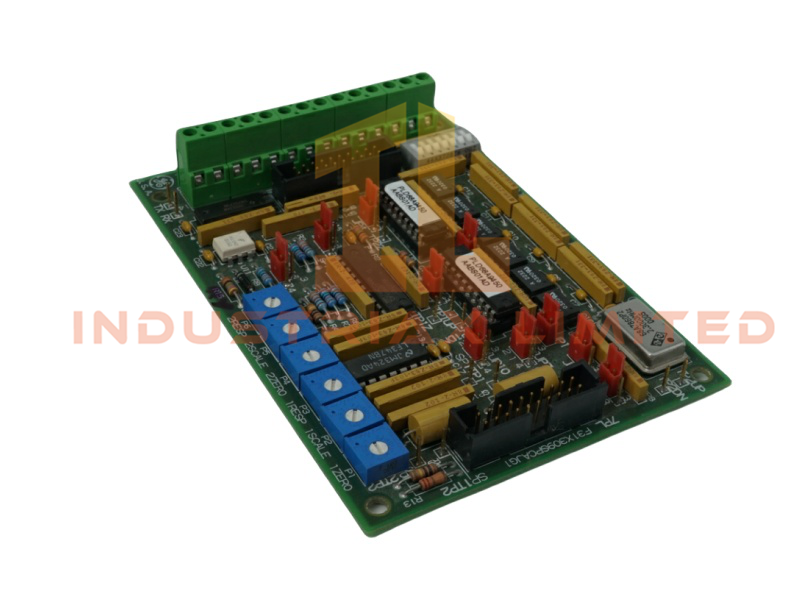

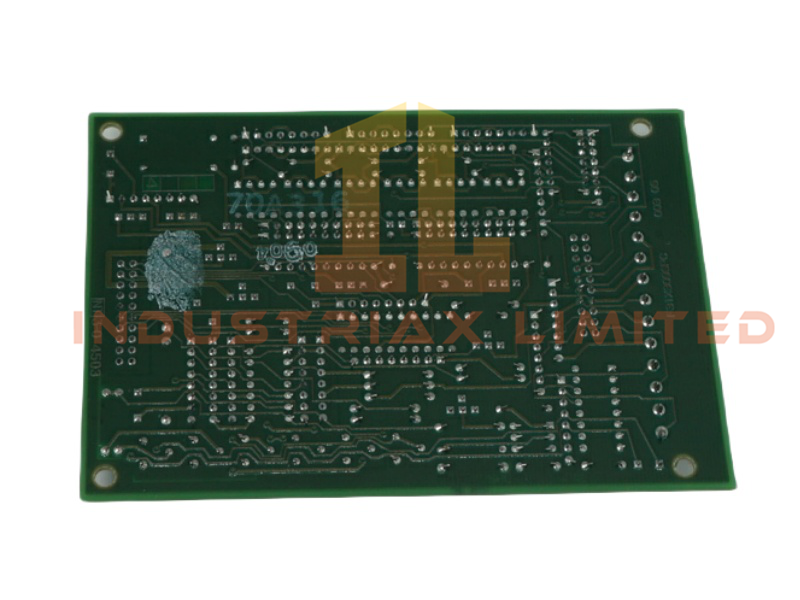

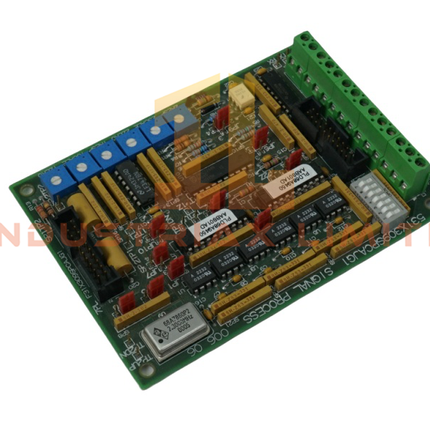

The 531X309SPCAJG1 digital signal process card from General Electric is a compact, high-performance module used in Multilin DCS drive systems. It handles LAN control, RS-422 signal processing, and I/O feedback from encoders and tachometers.
This board measures 13.3×9.2×2.3 cm and weighs 0.12 kg. The 531X309SPCAJG1 converts current and voltage signals into precise voltage references, ensuring accurate motor control and system response.
Technical Specifications
| Specification |
Details |
| Model Number |
531X309SPCAJG1 |
| Module Type |
Digital Signal Process Card |
| Manufacturer |
General Electric (GE) |
| Series |
Multilin |
| System |
DCS |
| Dimensions |
13.3 × 9.2 × 2.3 cm |
| Weight |
0.12 kg |
| Signal Inputs |
3 Current, Multiple Voltage |
| Serial Interface |
RS-422 |
| Feedback Devices |
Encoders, Tachometers |
| Adjustments |
Switches, Jumpers, Potentiometers |
| Functionality |
LAN Control, Drive I/O Processing |
| Installation |
Static-Safe, Professional Setup |
| Communication |
Ethernet Router |
| HS Code |
8537101190 |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Status |
Active |
Features & Performance
-
The 531X309SPCAJG1 interfaces with external sensors to deliver real-time speed feedback.
-
It converts analog signals into voltage references for precise motor command execution.
-
RS-422 support ensures reliable serial communication with motor control processors.
-
Users can fine-tune signal behavior using onboard switches and potentiometers.
Applications & Compatibility
The 531X309SPCAJG1 integrates into GE drive systems for signal processing, speed feedback, and control logic. It suits industrial automation tasks requiring encoder input, current signal conversion, and RS-422 communication.
Compatible with various 531X series boards, the 531X309SPCAJG1 enhances drive performance and supports flexible system customization.
