Description

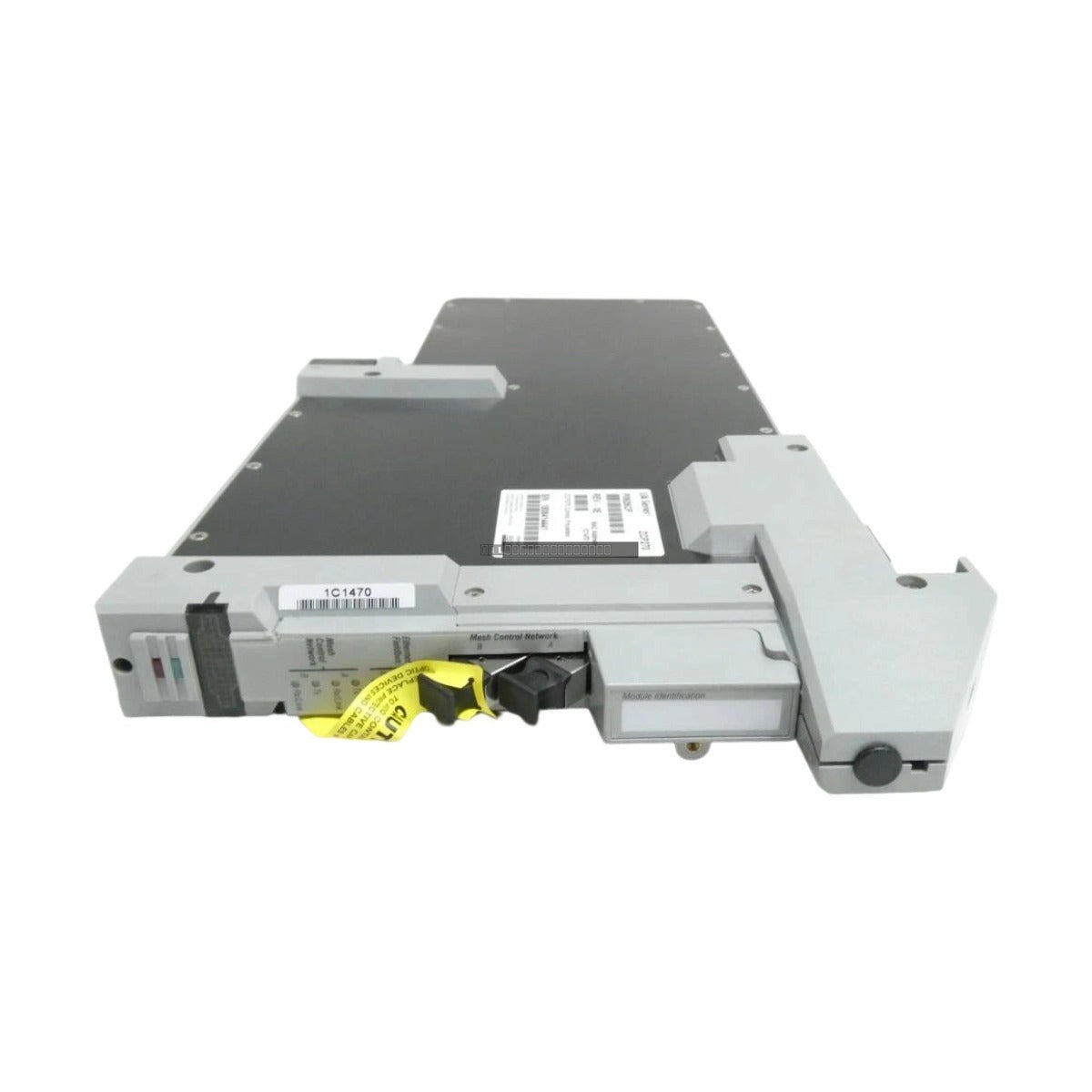

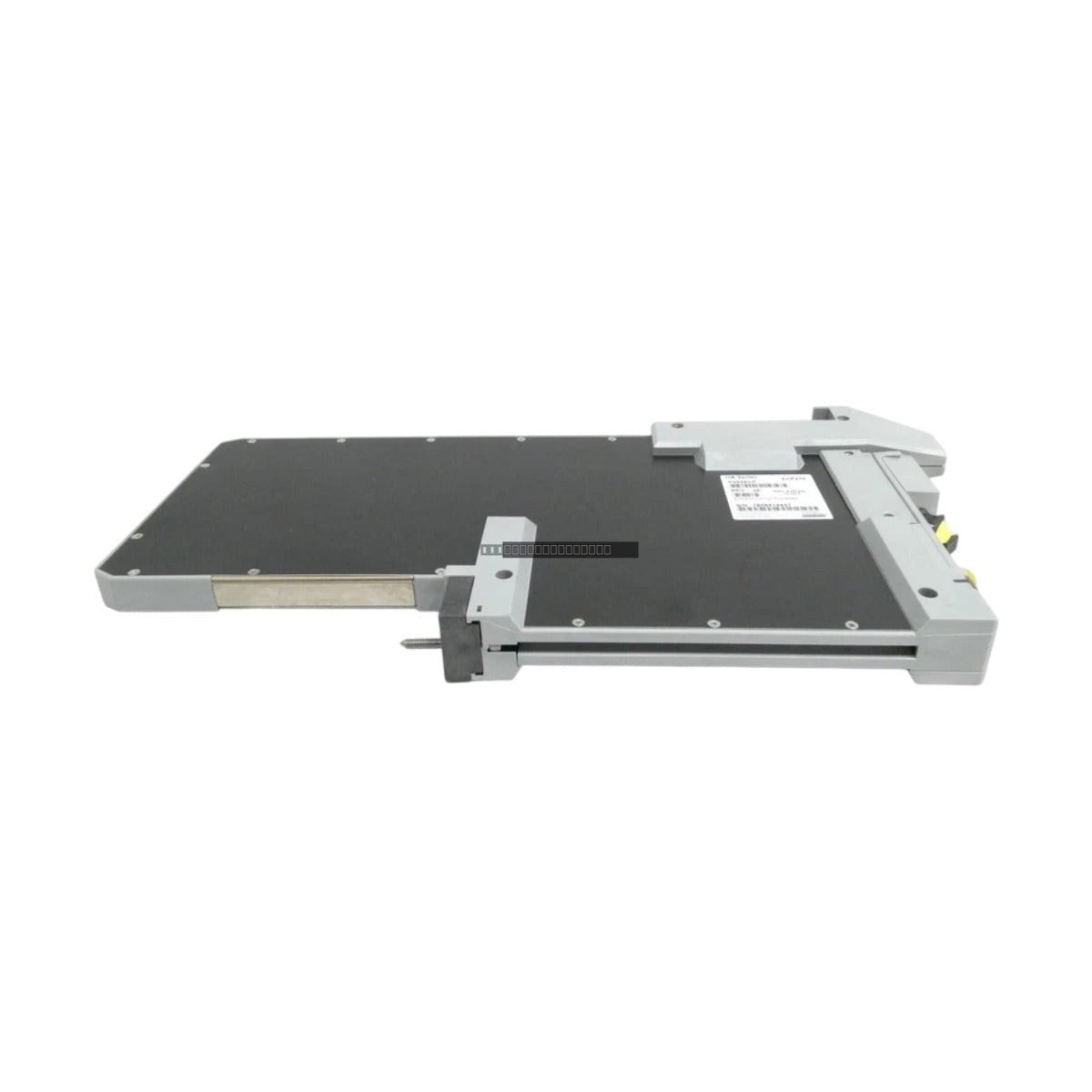

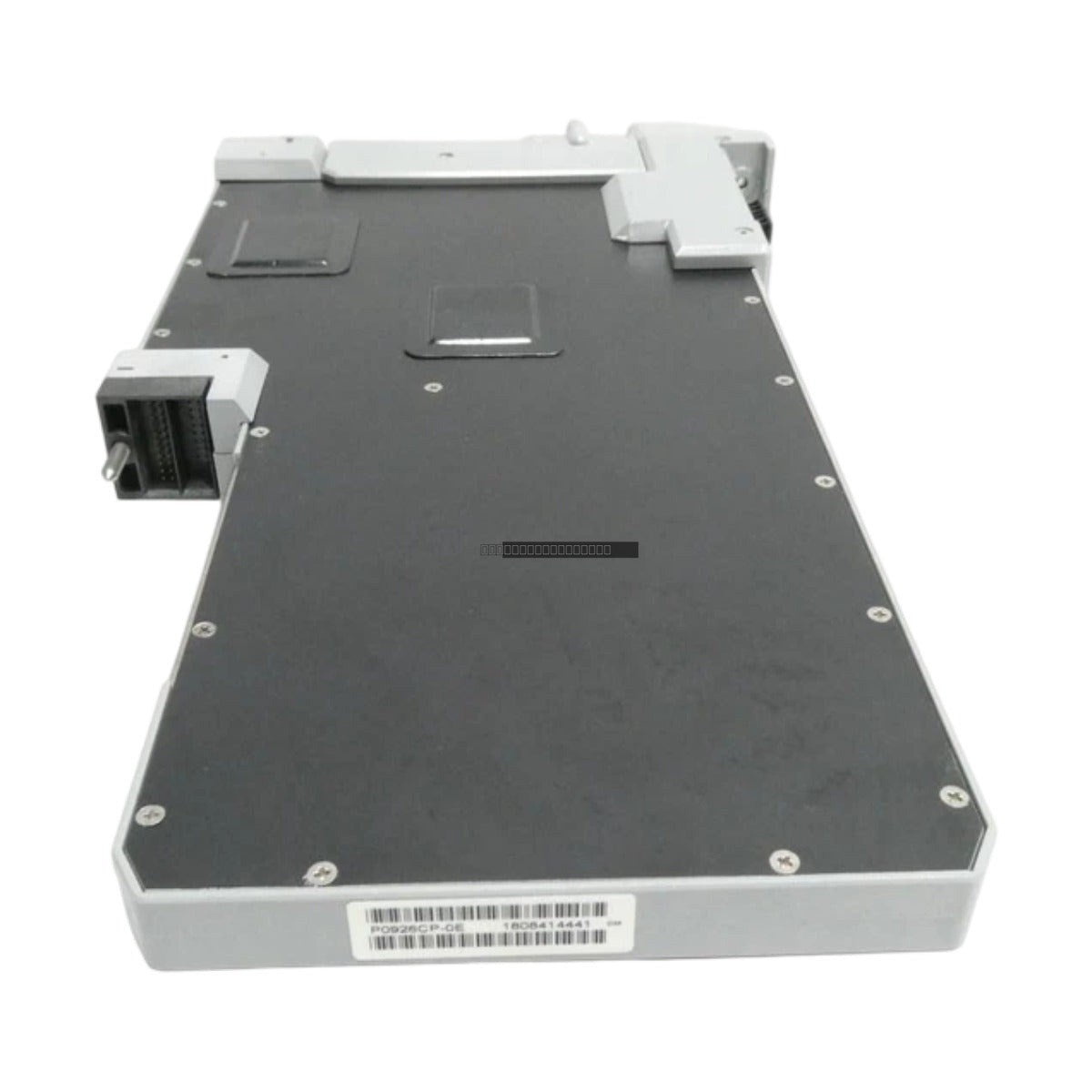

The Foxboro ZCP270 is a robust, high-performance control processor engineered for the I/A Series Distributed Control System (DCS). This module serves as a critical component in large-scale industrial control environments, including power generation, petrochemical processing, and mining operations. By utilizing dedicated hardware for communication and control, the ZCP270 delivers real-time deterministic performance, enabling it to manage high-density I/O and complex control algorithms while maintaining minimal latency.
System Architecture and Redundancy
Designed for mission-critical reliability, the ZCP270 supports both standalone and fully redundant configurations. In redundant setups, the processors function in a primary/tracker arrangement, maintaining continuous database synchronization. This architecture enables seamless, bumpless failover, ensuring that control loops remain active and stable even if a hardware fault occurs. The processor operates without internal fans or moving parts, significantly improving the Mean Time Between Failures (MTBF) and reducing maintenance requirements.
Features
- High-speed RISC processor for complex control logic execution.
- Support for up to 10,000 software blocks (application-dependent).
- Integrated 100 Mbps Ethernet-based interface for The Mesh network.
- Fanless design for enhanced reliability in industrial environments.
- Real-time operating system for deterministic process control.
- Supports redundancy for high-availability system architectures.
Technical Specifications
| Brand |
Foxboro (Invensys / Schneider Electric) |
| Model |
ZCP270 |
| Series |
I/A Series |
| Module Type |
Control Processor |
| Processor Type |
High-speed RISC |
| Memory |
128 MB SDRAM, 128 MB Flash |
| Network Interface |
100 Mbps The Mesh (Ethernet) |
| Input Voltage |
24 VDC (Nominal) |
| Power Consumption |
8.5 W |
| Operating Temperature |
0 to 60 deg C |
| Vibration Resistance |
5 to 500 Hz |
Installation Guidelines
- Ensure the control cabinet is clean and dry; the ZCP270 is designed for standard industrial panel mounting.
- Always power down the system before inserting or removing the processor module to prevent electrical damage.
- Verify that the 24 VDC power supply is stable and within the specified nominal operating range.
- Maintain proper ventilation within the cabinet to stay within the 0 to 60 deg C operating temperature range.
- Use shielded cabling for network connections to minimize EMI/RFI interference in high-noise industrial environments.
- Follow standard ESD (Electrostatic Discharge) procedures when handling the module to protect sensitive internal components.
FAQ
Is the ZCP270 compatible with redundant systems? Yes, the ZCP270 is specifically designed to support redundant configurations, allowing for a primary/tracker setup that ensures bumpless failover.
What is the primary network interface for this processor? The ZCP270 connects to the Foxboro The Mesh network via a 100 Mbps Ethernet-based interface.
Does this module require active cooling? No, the ZCP270 is designed without internal fans or moving parts, relying on passive cooling within the cabinet environment.
