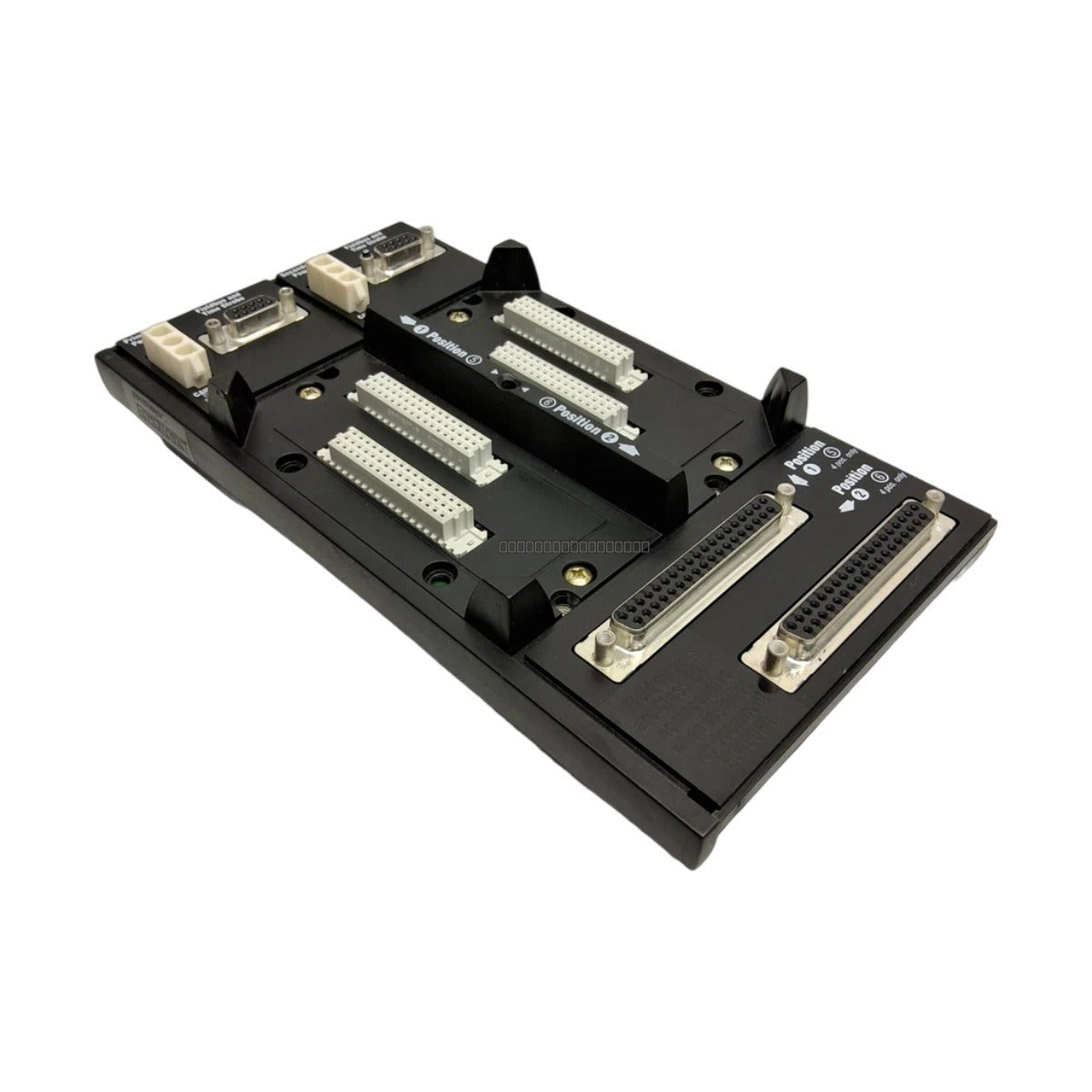

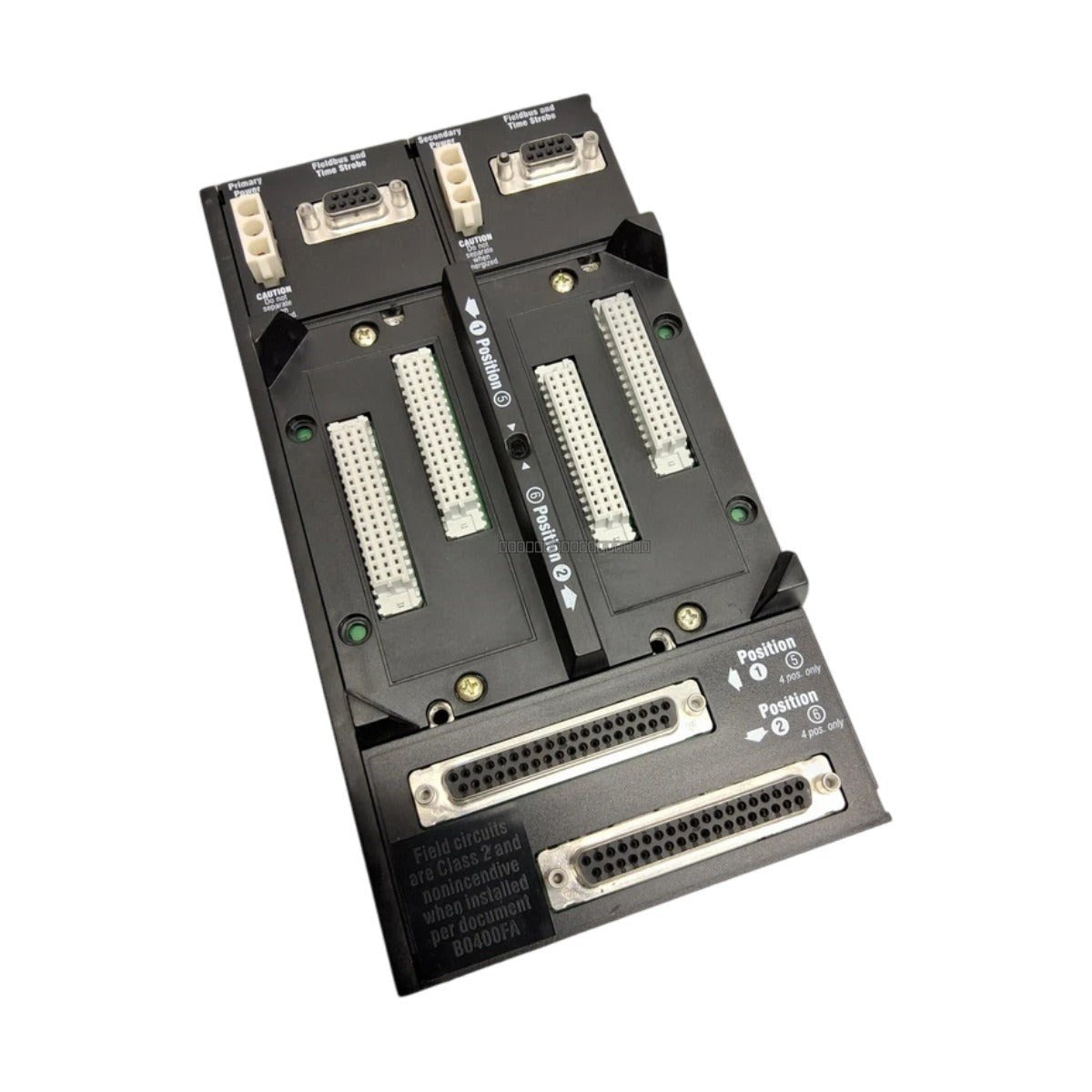

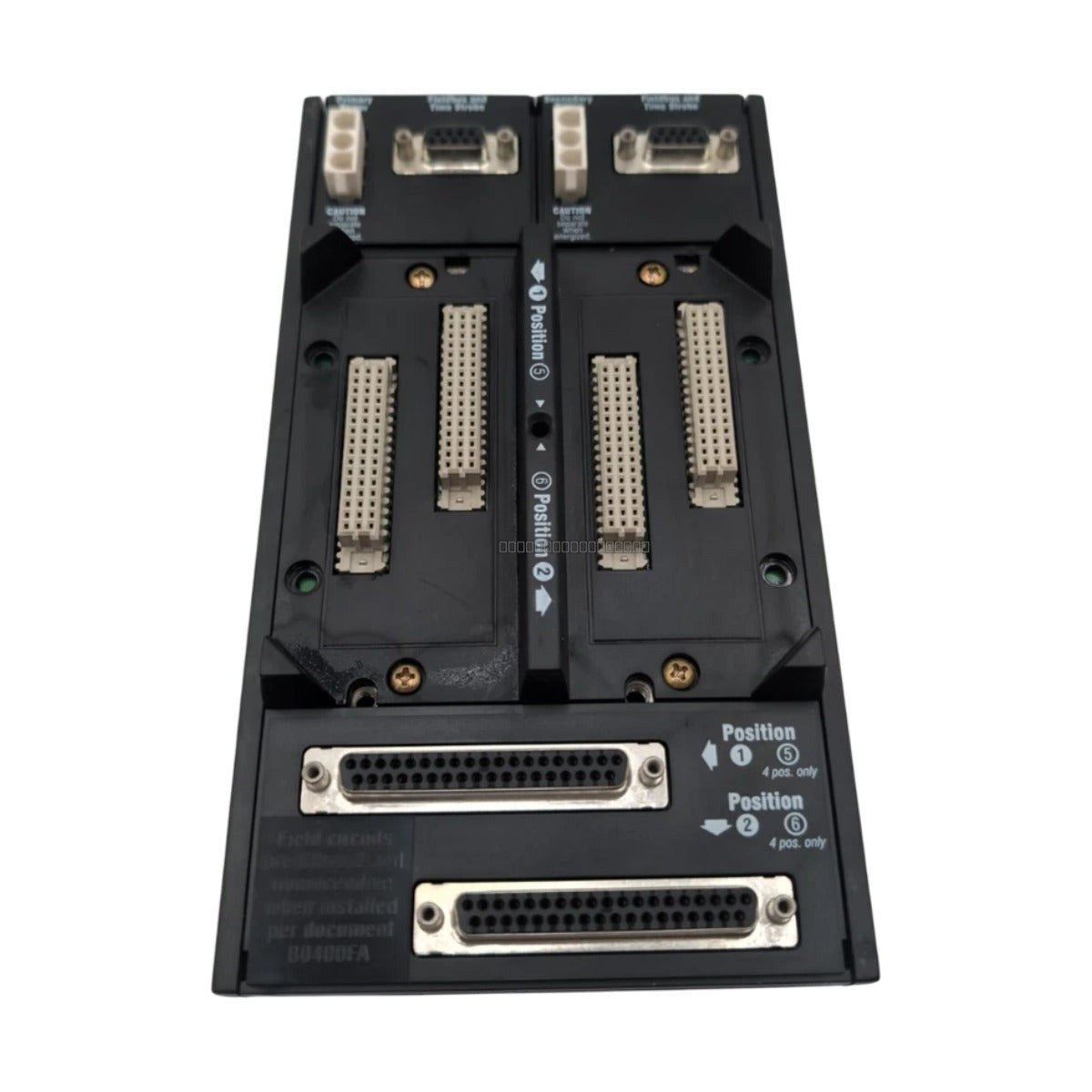

The Foxboro P0926KE (also identified as RH926KE) is a 2-position modular baseplate engineered for the Foxboro I/A Series and Foxboro Evo process automation systems. This baseplate serves as a critical mounting platform and communication backplane for 200 Series Fieldbus Modules (FBM) and Field Communications Modules (FCM). Designed for high-reliability industrial environments, it supports seamless integration and hot-swapping of modules, allowing for maintenance without interrupting field wiring or system power.
Features
- Supports up to two 200 Series FBM or FCM modules.
- Passive backplane architecture for enhanced system reliability.
- Redundant 24 VDC power input connections for high availability.
- Integrated module guides for precise alignment and protection of electrical contacts.
- Supports 2 Mbps redundant Module Fieldbus (HDLC) communication.
- Fixed baseplate addressing (Baseplate 0) with slots 1 and 2.
Applications
This baseplate is widely utilized in distributed control environments, including oil and gas refining, power generation, and large-scale mining operations where modular, high-availability I/O configurations are required.
Technical Specifications
| Model |
P0926KE (RH926KE) |
| Brand |
Foxboro by Schneider Electric |
| Module Positions |
2 |
| Mounting |
Horizontal DIN rail |
| Input Voltage |
24 VDC (Redundant) |
| Communication |
2 Mbps Redundant Module Fieldbus (HDLC) |
| Operating Temperature |
-20 to +60 deg C |
| Storage Temperature |
-40 to +70 deg C |
| Relative Humidity |
5 to 95% (Noncondensing) |
| Material |
PC and ABS (UL94 V0) |
Installation Guidelines
- Ensure the DIN rail is securely mounted and grounded according to local electrical codes before installing the baseplate.
- The baseplate is designed for horizontal mounting; ensure adequate clearance for airflow and module insertion/removal.
- Handle with care to avoid ESD damage to the backplane connectors.
- Verify that the 24 VDC power supply is properly connected to the redundant terminals to ensure system availability.
- Modules may be hot-swapped; however, always ensure the module is fully seated and locked into the guide rails to prevent contact misalignment.
Compliance and Certifications
The P0926KE is designed for use in hazardous locations, holding certifications including UL/UL-C Class I Div 2 and ATEX Zone 2. It is CE compliant. Please note this specific model is not Marine certified.
FAQ
Is this baseplate compatible with all 200 Series modules?
The P0926KE is designed for standard 200 Series FBMs and FCMs. Please verify your specific module's compatibility with the 2-position baseplate architecture before installation.
Can I replace modules while the system is running?
Yes, the P0926KE supports hot-swapping of modules, allowing you to remove or install units without powering down the baseplate or disconnecting field wiring.
