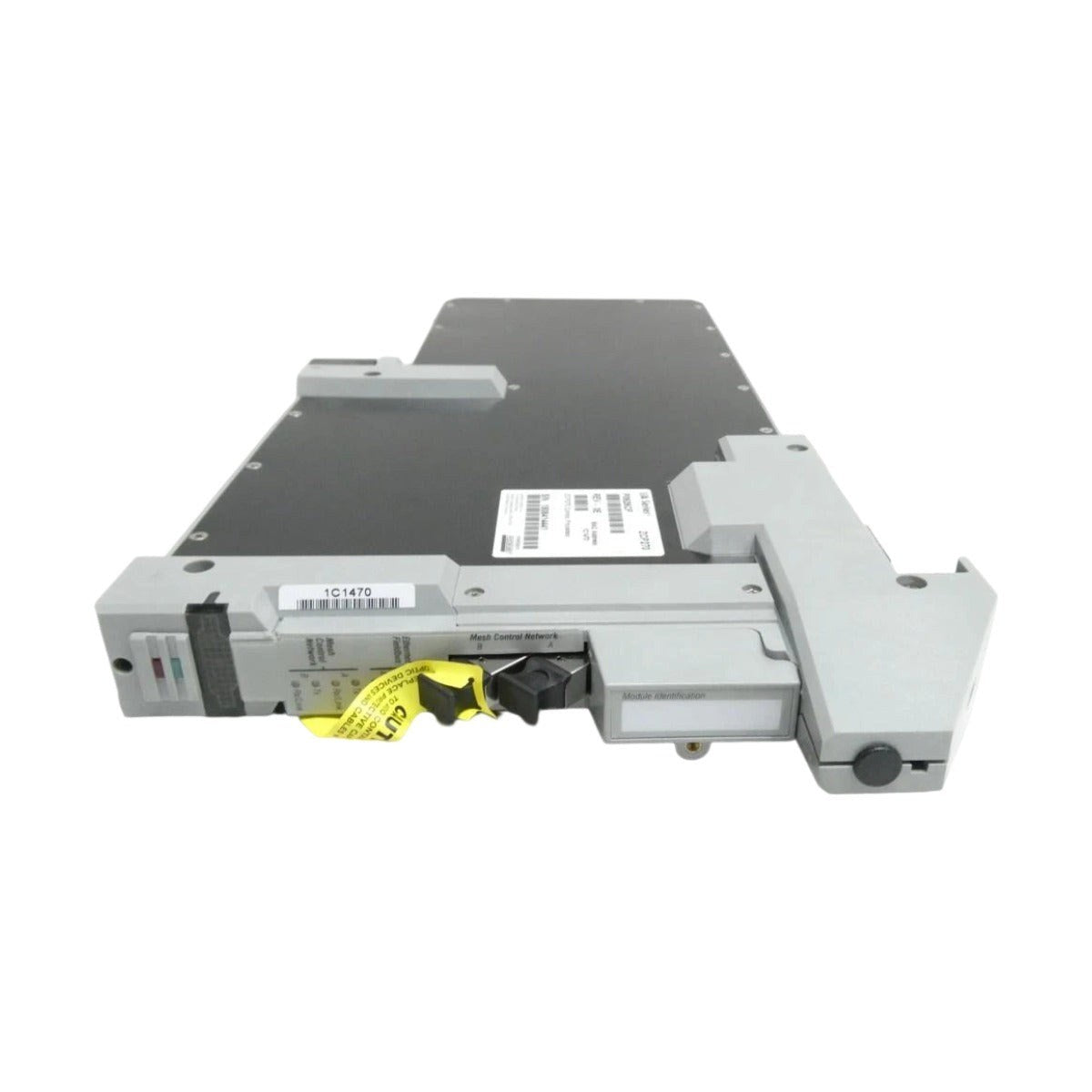

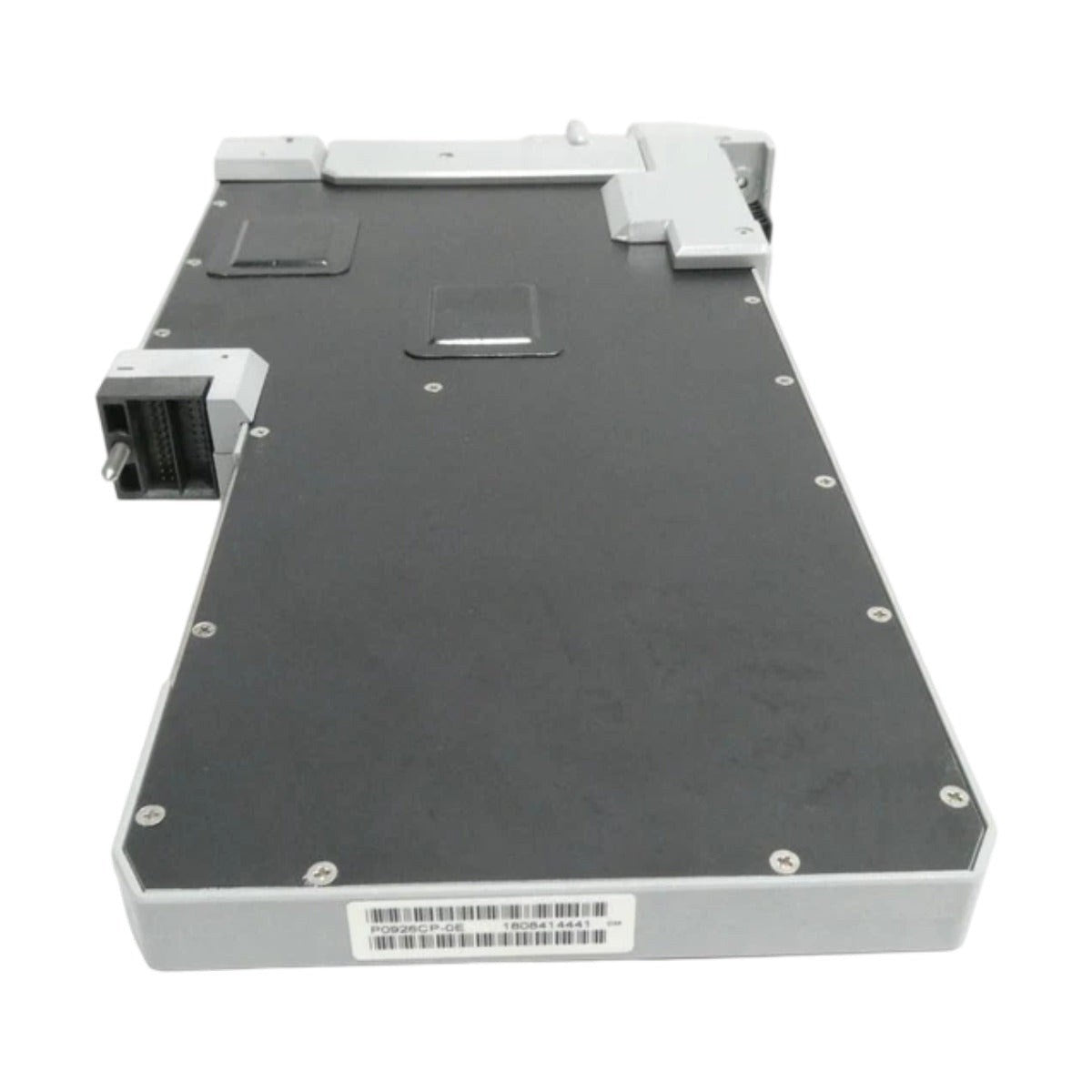

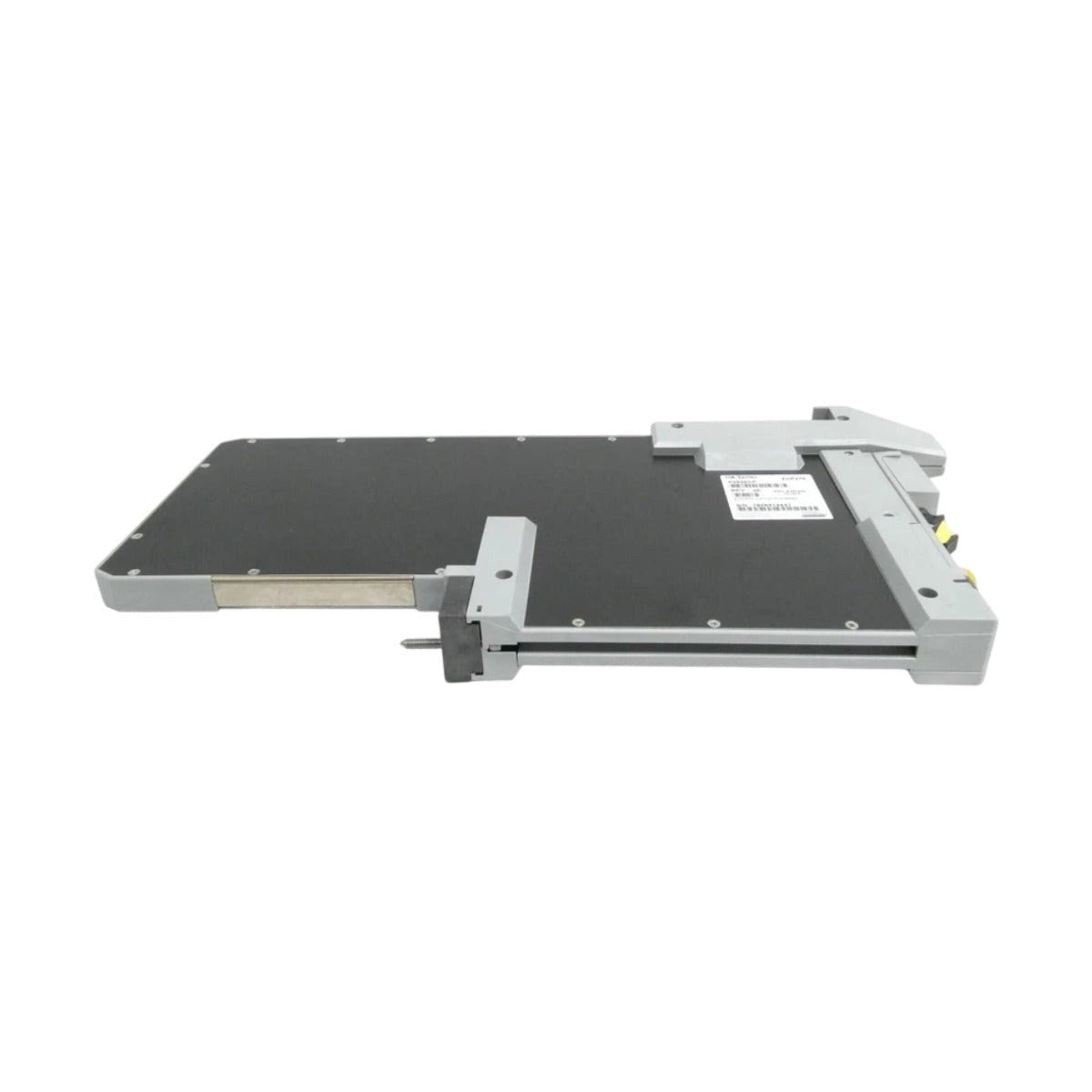

The Foxboro ZCP270 (P0926CP) is a high-performance, fault-tolerant Control Processor designed for the I/A Series (Intelligent Automation) distributed control system. As a core processing unit, it executes complex regulatory, logic, and sequential control algorithms for large-scale industrial operations such as petrochemical refining, power generation, and offshore extraction. The ZCP270 facilitates high-speed communication with Field Bus Modules (FBMs) via the 100 Mbps fiber optic The Mesh control network. By offering advanced computational power and seamless redundancy, this module ensures continuous process integrity and eliminates single points of failure, directly contributing to the reduction of plant-wide downtime and the enhancement of operational safety.
Features
- High-speed RISC processor architecture for deterministic control execution.
- Supports 1-to-1 redundancy for bumpless failover in less than one scan cycle.
- Interfaces with up to 120 Field Bus Modules (FBMs).
- Integrated high-speed fiber optic communication via The Mesh network.
- Continuous internal self-diagnostics monitoring hardware health, memory parity, and communication status.
Applications
The ZCP270 is engineered for demanding industrial environments where high availability and deterministic control are critical. Typical applications include large-scale petrochemical processing, power plant automation, and complex offshore extraction facilities requiring robust, fault-tolerant distributed control.
Technical Specifications
| Model |
ZCP270 (P0926CP) |
| Brand |
Foxboro (Schneider Electric) |
| Processor Type |
RISC Architecture |
| Memory |
16 MB SDRAM, 32 MB Flash |
| Network Interface |
100 Mbps Fiber Optic (The Mesh) |
| Max FBMs Supported |
120 Modules |
| Input Voltage |
24 VDC |
| Power Consumption |
8.5 Watts |
| Operating Temp |
0 to 60 deg C |
| Storage Temp |
-40 to 85 deg C |
| Relative Humidity |
5 to 95% (Non-condensing) |
Installation Guidelines
- Ensure the control processor is installed in a clean, dry, and vibration-free environment.
- Verify that the baseplate is properly grounded before inserting the module.
- Handle the module using ESD-safe practices to prevent damage to internal circuitry.
- Ensure the module is fully seated in the baseplate slot to maintain reliable backplane communication.
- Power down the system before inserting or removing the module to prevent electrical arcing or data corruption.
- Route fiber optic cables carefully to avoid exceeding minimum bend radii and to prevent signal attenuation.
FAQ
What is the primary function of the ZCP270?
The ZCP270 acts as the central control processor for the Foxboro I/A Series system, responsible for executing control algorithms and managing communication between field devices and the control network.
Does this module support redundancy?
Yes, the ZCP270 supports 1-to-1 redundancy, allowing for a primary/shadow configuration that ensures continuous operation in the event of a processor failure.
