Description
Description

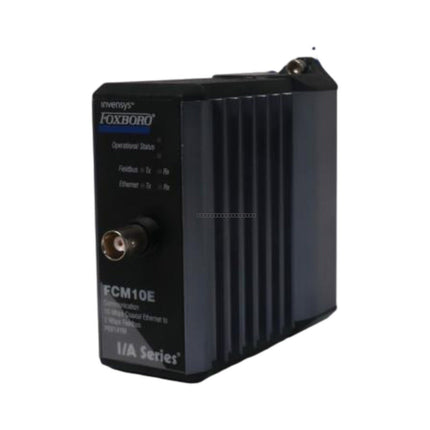

The FCM10E functions as a high-performance Fieldbus Communications Module within the Foxboro I/A Series distributed control system. It acts as a critical signal converter between the 10 Mbps Ethernet control network and the 2 Mbps HDLC-based module fieldbus. Specifically engineered for mission-critical deployments in oil refineries, petrochemical plants, and thermal power stations, the FCM10E facilitates the seamless exchange of process data and diagnostic information between the control processor and Fieldbus Modules (FBMs). Its robust architecture supports redundant configurations, ensuring that a single point of network failure does not disrupt process control. By providing high-speed deterministic communication, this module plays a pivotal role in maximizing system availability and reducing unscheduled plant downtime.
Communication Architecture
The hardware architecture of the FCM10E is optimized for high-speed protocol translation and data buffering. It features a dedicated 10 Mbps Ethernet port to interface with the Nodebus or Mesh network and a secondary interface for the internal module fieldbus. The module manages all low-level communication tasks, including error checking, packet framing, and collision detection, offloading these requirements from the main control processor. It supports redundant pair installation, where two modules share the same address and provide bumpless switchover in the event of hardware or link failure. Integrated self-diagnostics continuously monitor the internal power rails and communication port integrity, reporting status changes immediately to the system manager.
Features
- High-speed protocol translation between 10 Mbps Ethernet and 2 Mbps HDLC fieldbus.
- Supports redundant configuration for high-availability control environments.
- Integrated self-diagnostics for real-time monitoring of power and communication integrity.
- Offloads low-level communication tasks from the main control processor.
- Supports up to 64 FBMs per fieldbus segment.
Applications
The FCM10E is designed for integration into Foxboro I/A Series DCS environments, commonly utilized in:
- Oil and gas processing facilities.
- Petrochemical manufacturing plants.
- Thermal power generation stations.
- Large-scale industrial automation systems requiring high-speed deterministic data exchange.
Technical Specifications
| Model |
FCM10E |
| Module Type |
Fieldbus Communications Module |
| Ethernet Data Rate |
10 Mbps |
| Fieldbus Data Rate |
2 Mbps (HDLC) |
| Max FBM Support |
64 modules |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to +85 deg C |
| Relative Humidity |
5 to 95% (Noncondensing) |
| Power Consumption |
5 W (Typical) |
| Isolation |
600 VAC (port-to-ground) |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the rack.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
- Ensure the module is fully seated in the designated I/A Series rack slot to maintain proper backplane connection.
- Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI).
- Verify that the module is configured correctly for redundant operation if used in a fault-tolerant pair.
Compliance and Certifications
The FCM10E is designed to meet industrial standards including UL, CSA, CE, and ATEX Zone 2 requirements for hazardous locations.
FAQ
Does the FCM10E support redundant operation?
Yes, the FCM10E supports redundant pair installation, allowing two modules to share the same address and provide bumpless switchover if a hardware or link failure occurs.
What is the primary function of the FCM10E?
It acts as a communication bridge, converting signals between the 10 Mbps Ethernet control network and the 2 Mbps HDLC-based module fieldbus within the Foxboro I/A Series system.
