Description

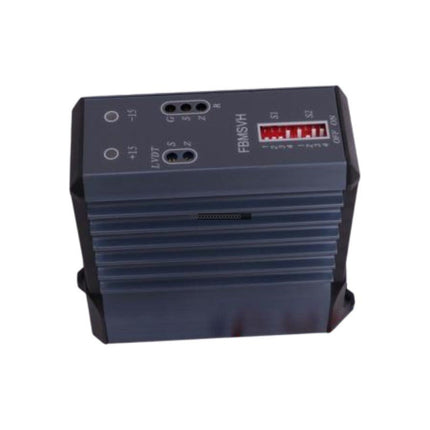

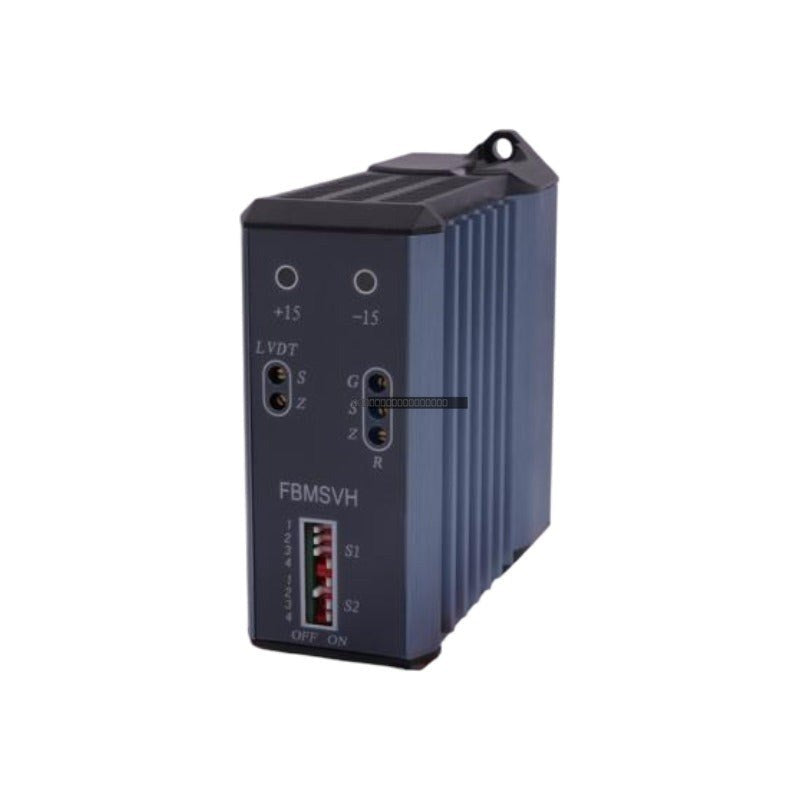

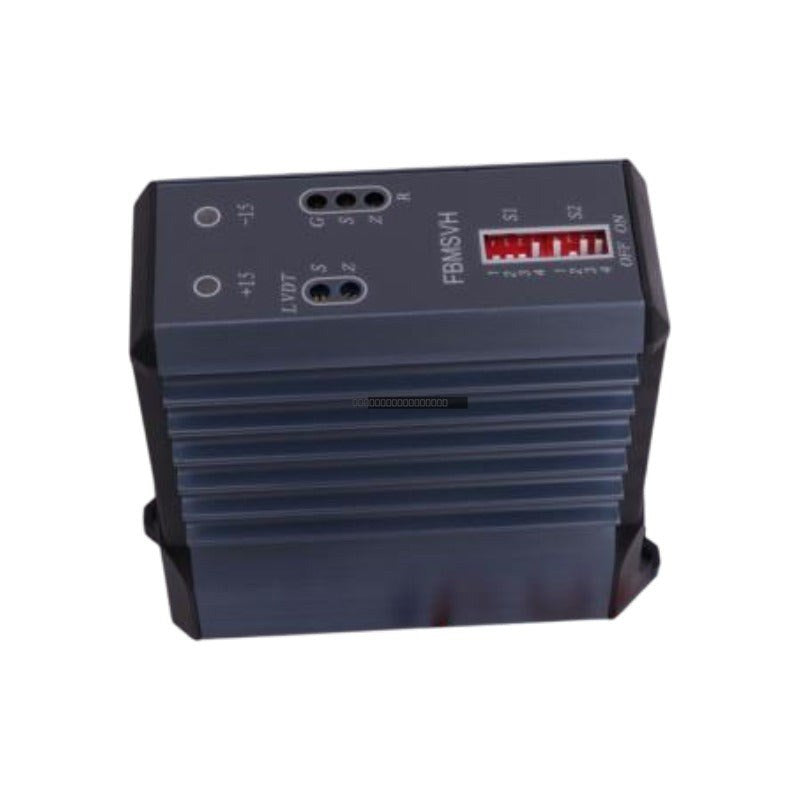

The Foxboro FBMSVH is a robust Control Processor Card engineered for the I/A Series distributed control system (DCS). This module serves as a primary computational engine, managing complex regulatory control loops, sequential logic, and real-time data processing for industrial automation environments. Built for high-availability applications, the FBMSVH is designed to maintain process stability in demanding sectors such as power generation, chemical processing, and large-scale manufacturing, ensuring deterministic execution and system reliability.
Features
- High-performance RISC-based processor architecture for rapid, low-latency control execution.
- Integrated ECC memory to protect against data integrity issues in high-EMI industrial environments.
- Support for redundant configurations, enabling bumpless failover between primary and tracker modules.
- Continuous onboard diagnostic monitoring for proactive hardware and communication status reporting.
- Seamless integration with Foxboro I/A Series control networks and Fieldbus modules.
Applications
The FBMSVH is optimized for mission-critical control tasks where uptime and process precision are paramount. It is widely utilized in continuous process control, batch processing, and safety-related monitoring within distributed control architectures.
Technical Specifications
| Brand |
Foxboro (Invensys / Schneider Electric) |
| Model |
FBMSVH |
| Series |
I/A Series |
| Processor |
High-speed RISC |
| Power Consumption |
12 W (Typical) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Humidity |
5 to 95 percent (Non-condensing) |
| Weight |
0.32 kg |
Installation Guidelines
- Ensure the control system is powered down before inserting or removing the FBMSVH module from the chassis.
- Handle the card using proper ESD (Electrostatic Discharge) mitigation practices to protect sensitive onboard components.
- Verify that the module is fully seated in the designated I/A Series rack slot to ensure reliable connection with the backplane.
- Maintain adequate ventilation around the chassis to keep the ambient temperature within the specified 0 to 60 deg C operating range.
- Route communication cables away from high-voltage power lines to minimize electromagnetic interference.
FAQ
Is the FBMSVH compatible with redundant configurations?
Yes, the FBMSVH supports redundant pairing, allowing a primary and a tracker module to work in tandem for instantaneous, bumpless failover.
What type of memory does this processor use?
The module utilizes onboard Flash and ECC (Error Correcting Code) RAM to ensure high reliability and data integrity during operation.
