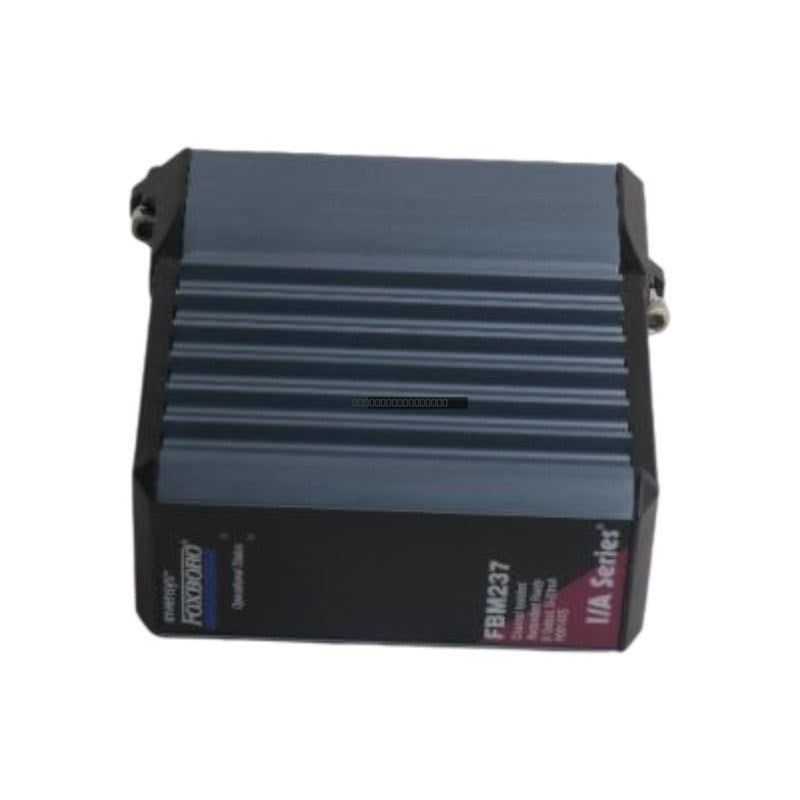

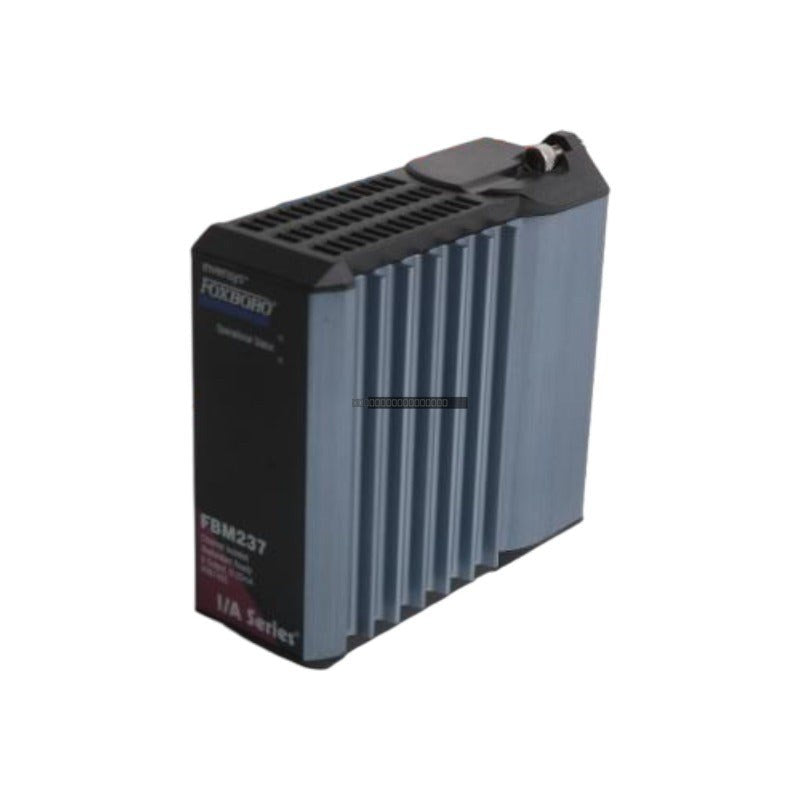

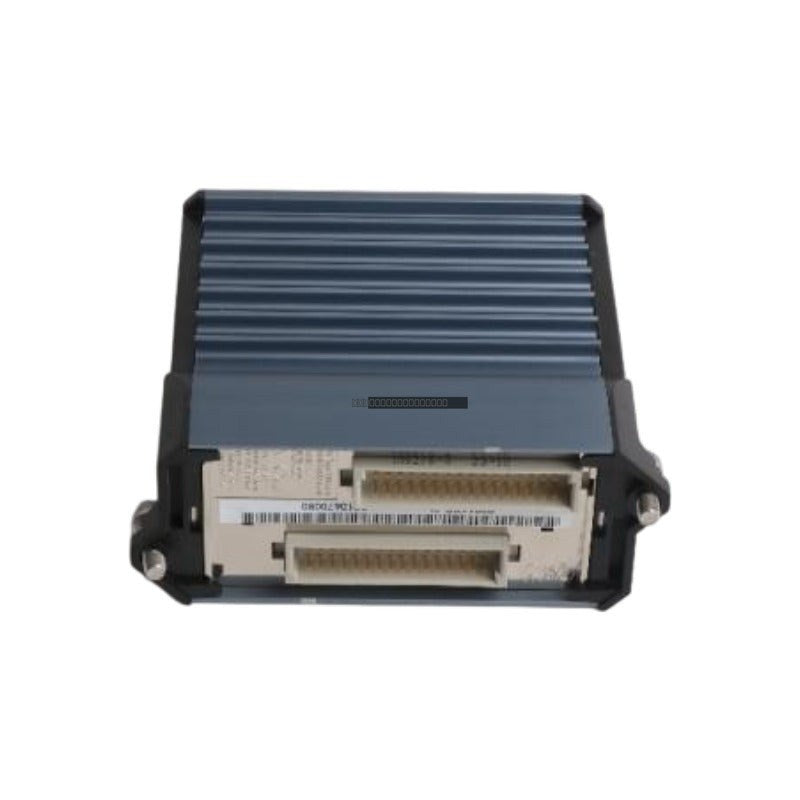

The Foxboro FBM237 (P0914XS) is a high-reliability 0 to 20 mA isolated output interface module engineered for the I/A Series Distributed Control System (DCS). This module provides eight channels of isolated analog output, converting digital commands from the control processor into precise current signals for field-mounted actuators, valves, and positioners. Extensively utilized in hazardous industrial environments including offshore oil platforms, chemical refineries, and mining operations, the FBM237 provides essential galvanic isolation to protect system integrity from field-side electrical interference.
Features
- Eight independent analog output channels.
- Galvanic isolation between channels and from the Fieldbus logic to prevent ground loops.
- Dedicated digital-to-analog converter (DAC) per channel for high-precision signal integrity.
- Configurable fail-safe output states for communication loss scenarios.
- High-speed redundant Fieldbus interface for seamless DCS integration.
- Ruggedized design suitable for high-density cabinet mounting.
Applications
The FBM237 is designed for critical process control applications where signal stability and electrical isolation are paramount. It is commonly used to drive proportional control valves, I/P transducers, and other 0-20 mA field devices in petrochemical, power generation, and water treatment facilities.
Technical Specifications
| Model |
FBM237 (P0914XS) |
| Module Type |
Isolated Analog Output (8-Channel) |
| Output Range |
0 to 20 mA DC |
| Output Load |
750 Ohms (Maximum) |
| Isolation Rating |
600 VAC (channel-to-earth), 600 VAC (channel-to-channel) |
| Accuracy |
+/- 0.05% of span |
| Resolution |
13 bits |
| Power Consumption |
6 Watts (Maximum) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to +70 deg C |
| Relative Humidity |
5 to 95% (non-condensing) |
Installation Guidelines
- Ensure the control system is powered down before inserting or removing the FBM237 module from the baseplate.
- Use shielded twisted-pair cabling for all analog output connections to minimize EMI/RFI interference.
- Verify that the module is fully seated and the locking mechanism is engaged to ensure reliable backplane communication.
- Maintain proper cabinet ventilation to ensure the operating temperature remains within the 0 to 60 deg C range.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
Compliance and Certifications
The FBM237 is designed to meet rigorous industrial standards, including CE, CSA, FM, and ATEX Class 1 Division 2 certifications for operation in hazardous locations.
FAQ
What is the primary function of the FBM237?
The FBM237 acts as an interface between the Foxboro I/A Series DCS and field devices, converting digital control signals into 0-20 mA analog outputs for precise process control.
Does this module require external power?
The module is powered via the I/A Series baseplate connection; ensure the power supply capacity of your rack can accommodate the 6W maximum consumption of this module.
