Description

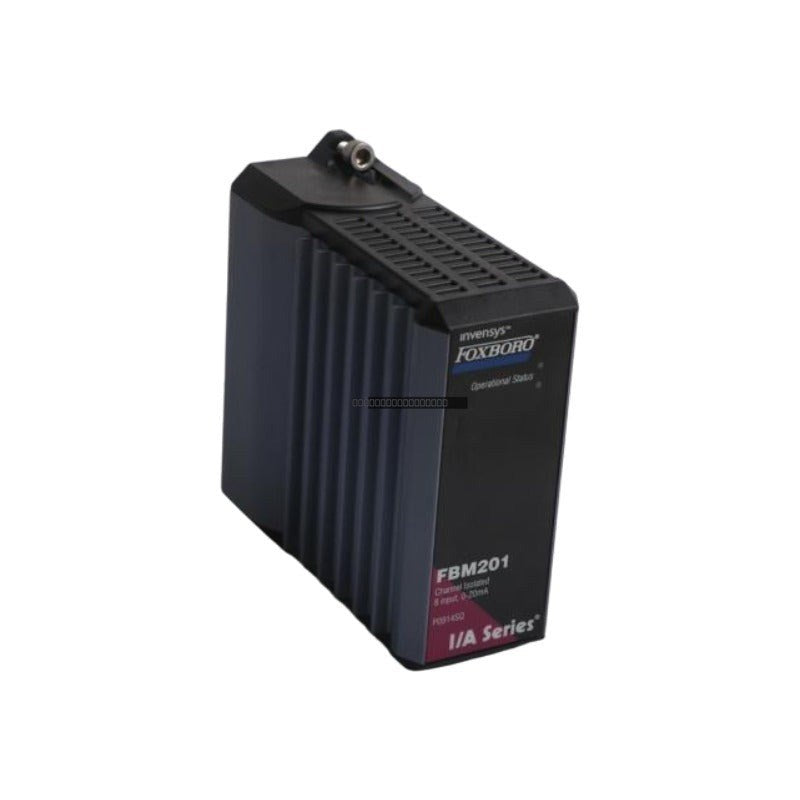

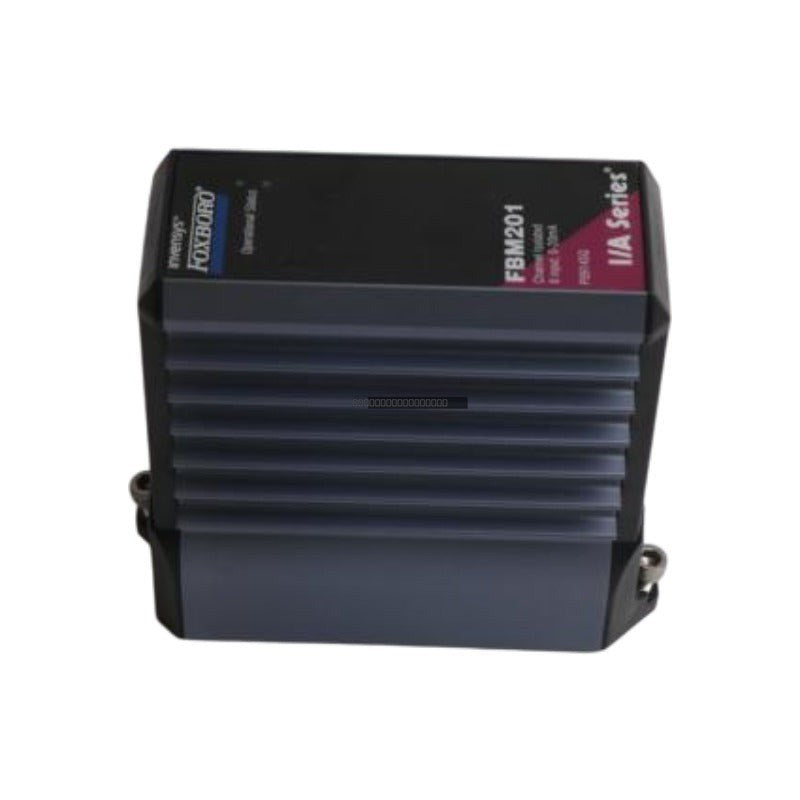

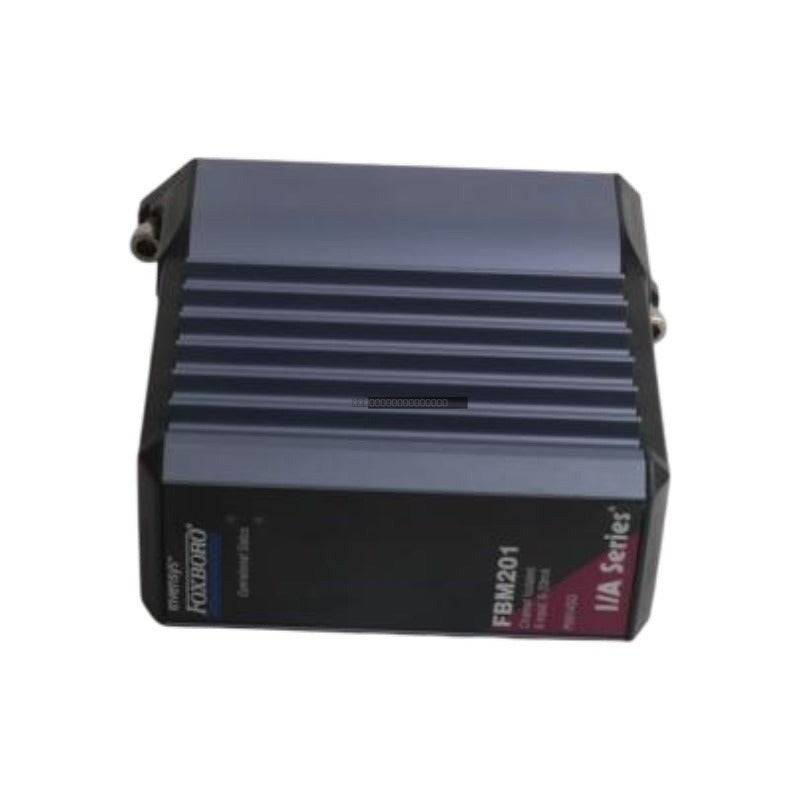

The Foxboro FBM201 (P0914SQ) is a high-performance Analog Input Interface Module designed for the I/A Series distributed control system. This module features eight isolated input channels, each capable of interfacing with 0 to 20 mA DC analog signals. It is primarily utilized in heavy industrial sectors such as oil refining, chemical processing, and power generation to monitor critical variables like pressure, flow, and temperature. The FBM201 serves as a high-precision data acquisition point, converting field-side analog signals into digital data for the control processor. By providing superior signal isolation and noise rejection, it ensures the integrity of process data, which is essential for maintaining loop stability and preventing costly unscheduled system shutdowns.
Hardware Architecture
The FBM201 incorporates eight independent input channels, each galvanically isolated from the other and from the system logic. This robust isolation prevents ground loops and protects the control system from high-voltage transients common in industrial field environments. The module utilizes a high-resolution Sigma-Delta analog-to-digital converter per channel to ensure maximum accuracy and fast data refresh rates. It communicates with the control processor via the redundant 2 Mbps HDLC Fieldbus, ensuring high availability. The module also supports software-configurable digital filtering and integration times, allowing engineers to tune the input response based on specific process requirements or environmental noise levels.
Features
- 8 galvanically isolated analog input channels
- Input range: 0 to 20 mA DC
- 15-bit resolution for high-precision measurement
- Redundant 2 Mbps HDLC Fieldbus communication
- Software-configurable digital filtering
- High noise rejection for stable process control
Applications
- Oil and gas refining process monitoring
- Chemical and petrochemical processing plants
- Power generation control systems
- Water and wastewater treatment facilities
- General industrial automation and data acquisition
Technical Specifications
| Model |
FBM201 (P0914SQ) |
| Brand |
Foxboro (Schneider Electric) |
| Input Channels |
8 Isolated |
| Input Signal Range |
0 to 20 mA DC |
| Input Impedance |
250 Ohms (Nominal) |
| Resolution |
15 bits |
| Accuracy |
+/- 0.03% of span |
| Power Consumption |
3.0 Watts (Maximum) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Relative Humidity |
5 to 95% (Non-condensing) |
Installation Guidelines
- Ensure the control system power is disconnected before installing or removing the FBM201 module from the baseplate.
- The module is designed for mounting on a standard Foxboro I/A Series baseplate; ensure proper seating to engage the backplane connector.
- Use shielded twisted-pair cabling for all analog input signals to minimize electromagnetic interference (EMI).
- Maintain proper grounding practices for the cable shields at the field end or the marshalling cabinet to prevent ground loops.
- Ensure adequate ventilation in the cabinet to maintain ambient temperatures within the specified 0 to 60 deg C range.
- Handle with ESD-safe precautions to prevent damage to internal sensitive electronic components.
FAQ
Is the FBM201 compatible with all I/A Series systems?
The FBM201 is designed for use within the Foxboro I/A Series distributed control system. Please verify your specific system revision and baseplate compatibility before installation.
Does this module require external power for the loops?
The FBM201 typically interfaces with 0-20 mA loops; please refer to your specific system wiring diagram to determine if loop power is provided by the FBM or an external power supply.
