Description

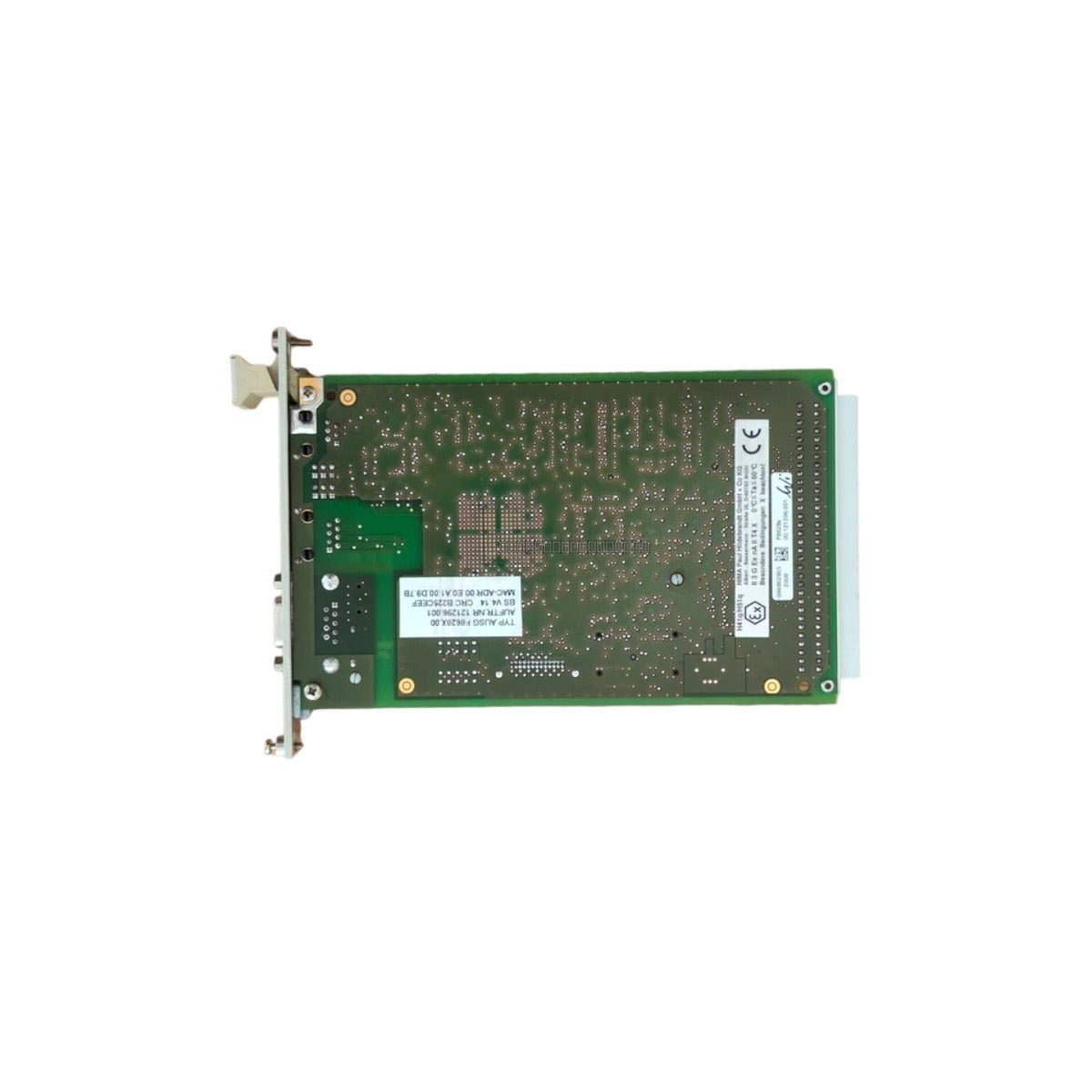

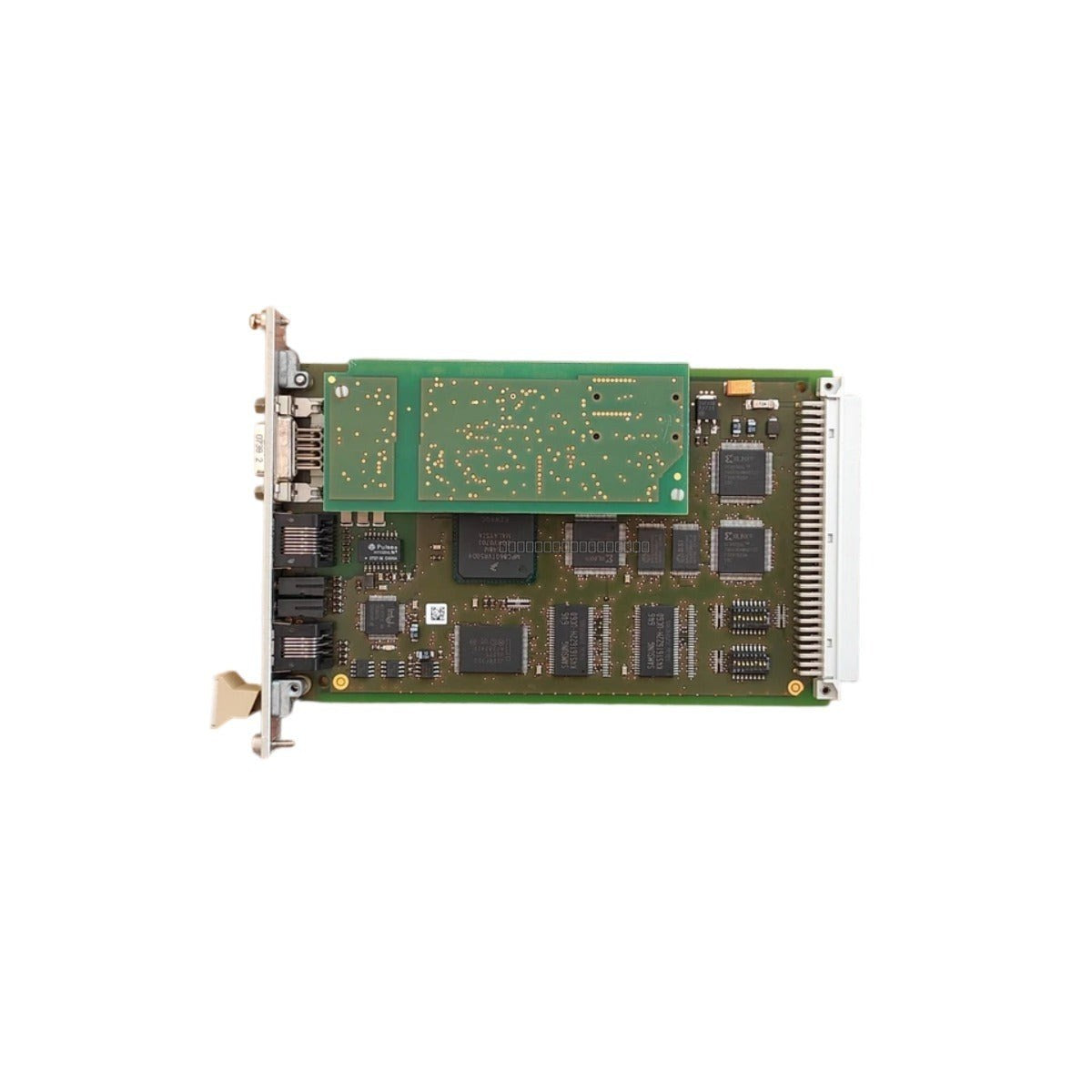

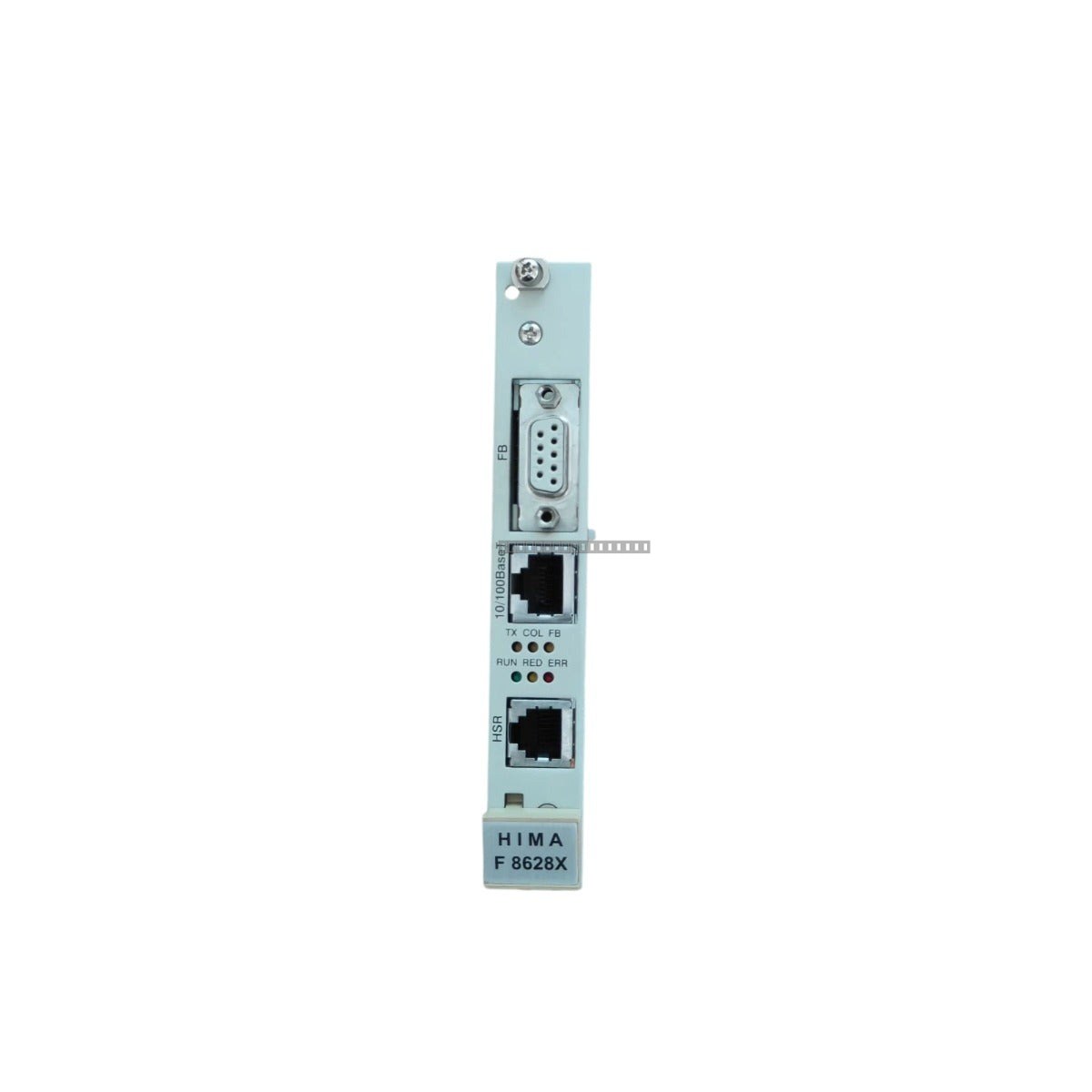

The HIMA F 8628X is a dedicated PROFIBUS-DP slave communication module designed for integration within HIMA H41q and H51q Programmable Electronic Systems (PES). This module facilitates reliable data exchange between the HIMA safety controller and a PROFIBUS-DP network, serving as a slave node in industrial automation architectures. It is compatible with systems beginning with OS41q/51q V7.0-7 (9906) and utilizes the HK-COM-3 function block for configuration and communication management.
Features
- Designed for PROFIBUS-DP slave communication.
- Equipped with a 32-bit Motorola MPC860T processor featuring an integrated RISC communication controller.
- Optimized for seamless integration into H41q/H51q safety systems.
- Compact hardware footprint requiring 3 HU (height units) and 4 SU (slot units).
- Supports data input capacity of up to 192 bytes.
Technical Specifications
| Model |
F 8628X |
| Function |
PROFIBUS-DP Slave Module |
| Operating Voltage |
5 VDC / 1 A |
| Processor |
32-bit Motorola MPC860T |
| Max Input Data |
192 Byte |
| Physical Dimensions |
3 HU (Height), 4 SU (Width) |
| Manufacturer |
HIMA |
Installation Guidelines
- Ensure the system is powered down before inserting or removing the F 8628X module from the rack to prevent electrical damage.
- The module is designed for standard HIMA rack mounting; ensure the module is fully seated and the locking mechanisms are engaged.
- Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.
- Verify that the system firmware version is compatible (OS41q/51q V7.0-7 or higher) before commissioning.
- Ensure proper grounding of the PROFIBUS cable shield at the designated terminal points to minimize EMI interference.
FAQ
What is the primary function of the F 8628X?
The F 8628X acts as a PROFIBUS-DP slave communication interface, allowing HIMA H41q/H51q safety systems to communicate with external PROFIBUS-DP masters.
Which systems are compatible with this module?
This module is compatible with HIMA H41q and H51q series PES, specifically those running OS41q/51q V7.0-7 (9906) or later.
