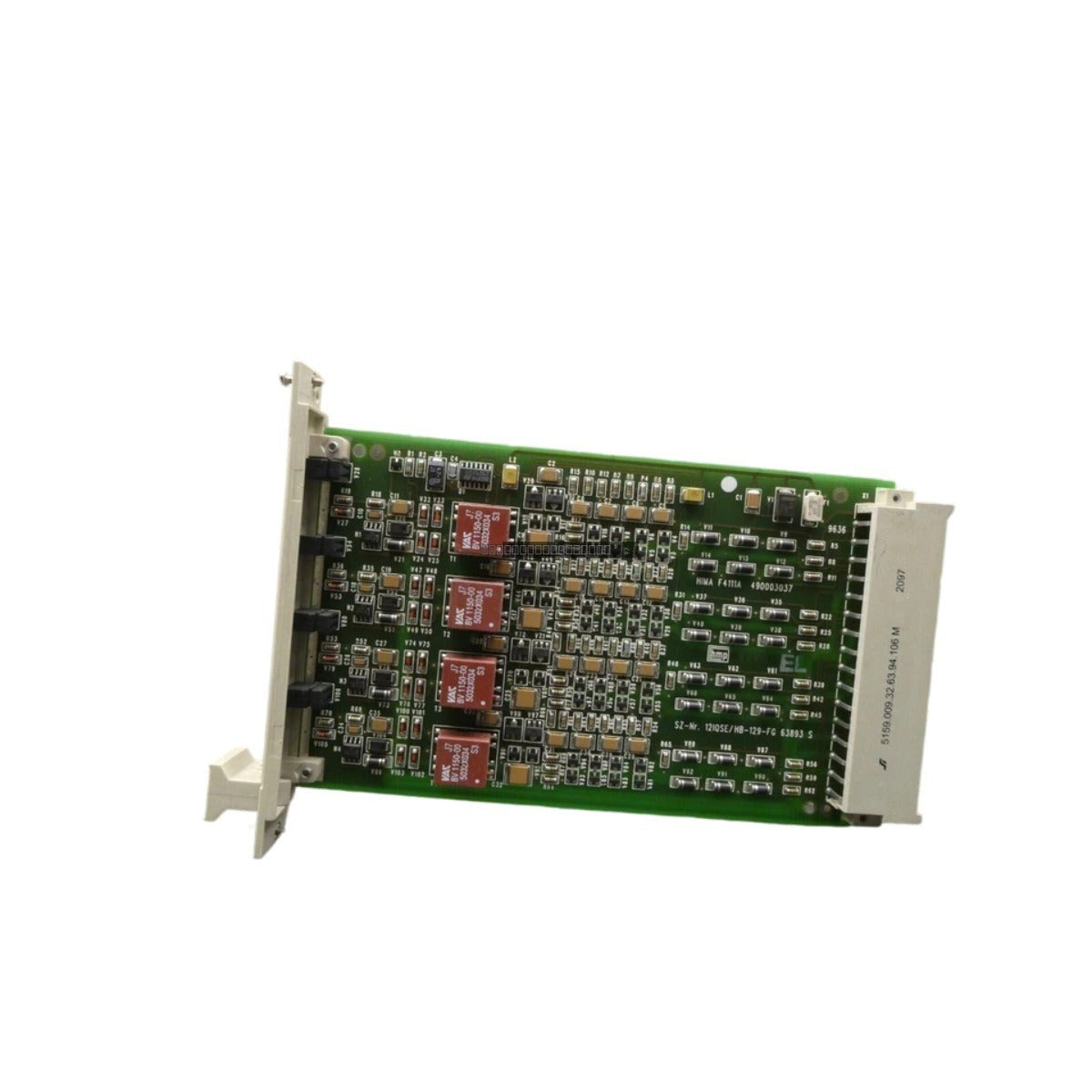

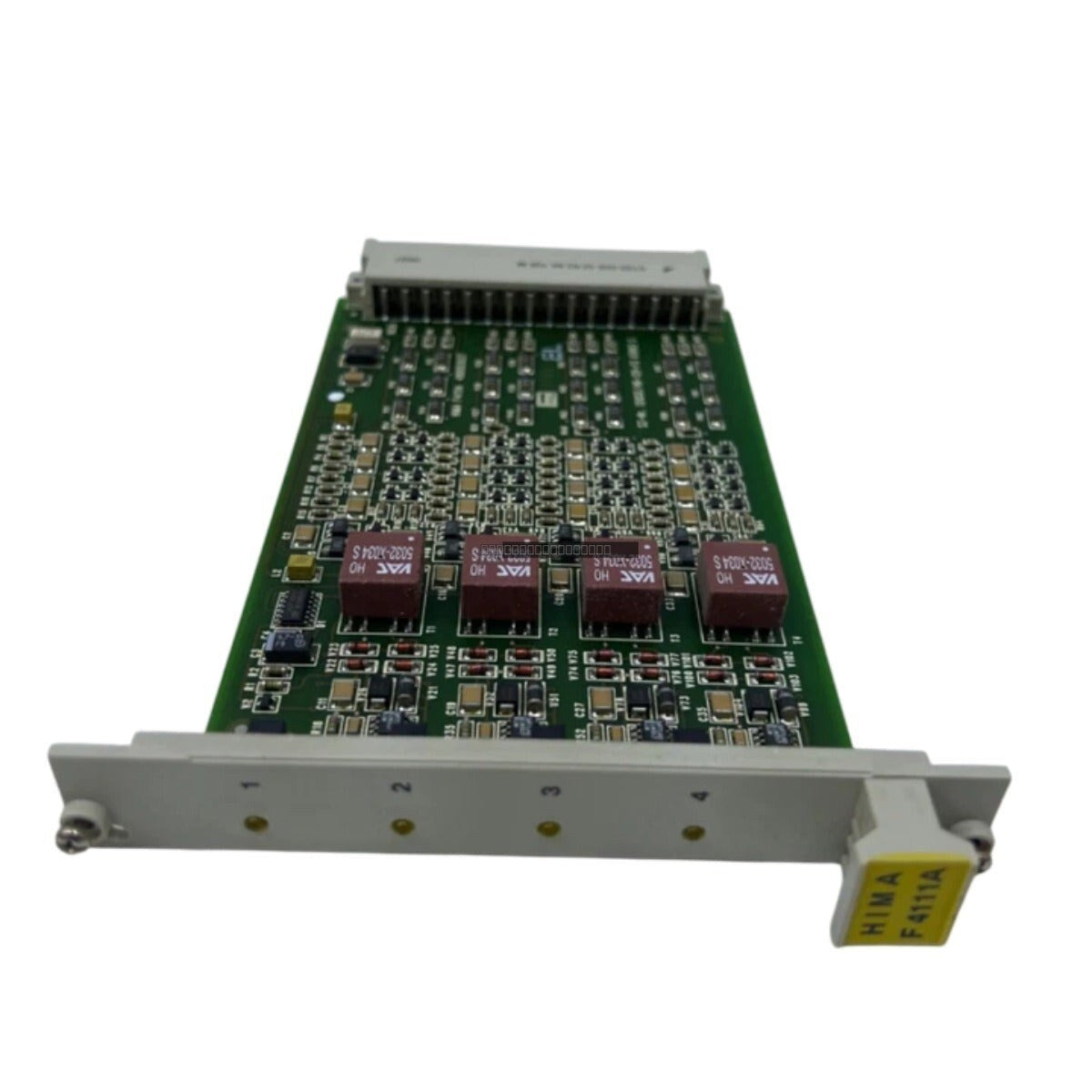

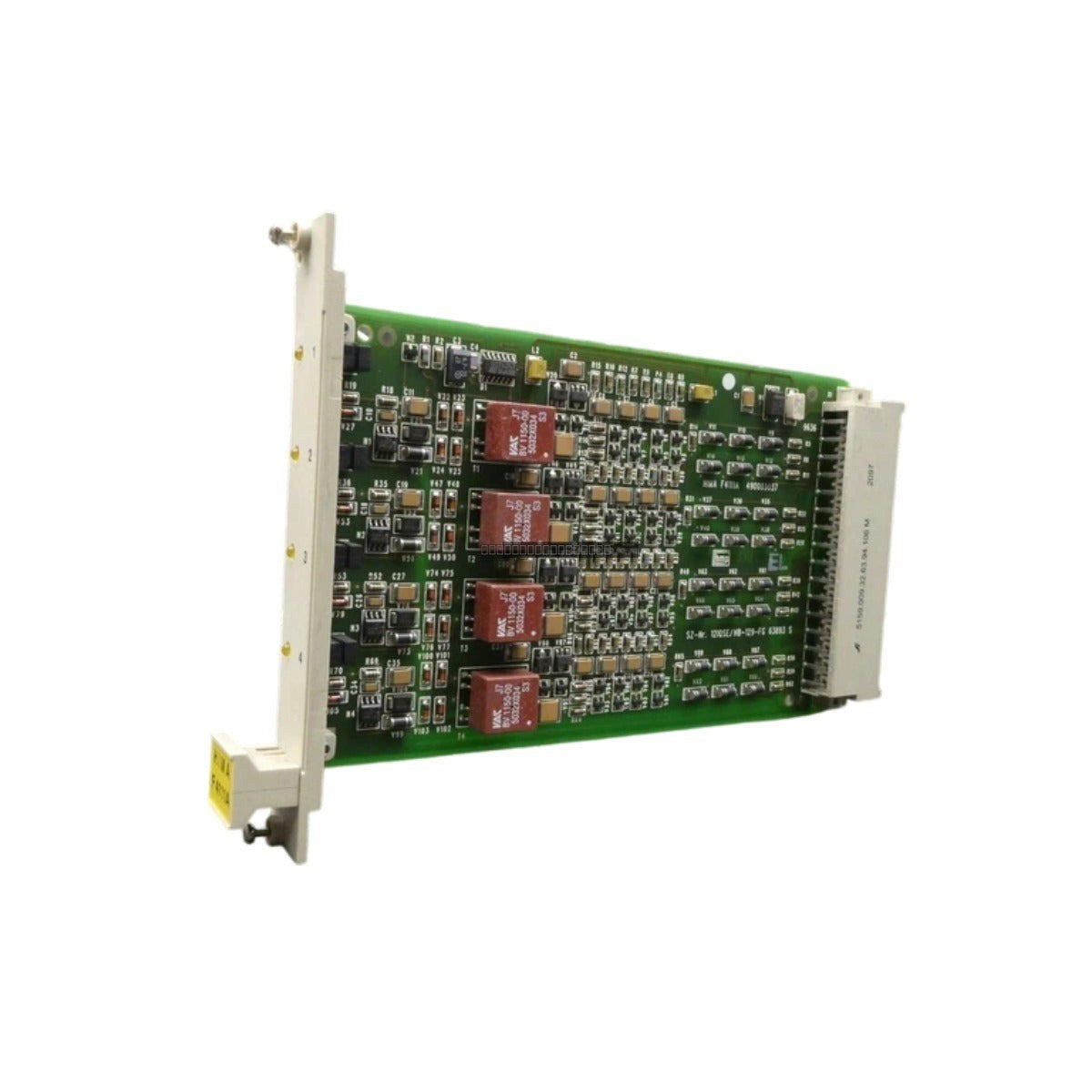

The HIMA F 4111A is a 4-fold fail-safe AND gate module designed for the Planar-F safety system architecture. This hard-wired safety controller component executes deterministic logical AND operations for high-integrity signaling in safety-critical applications. By providing hardware-based logic, the F 4111A ensures that specific safety conditions are met before allowing process execution, effectively reducing the risk of spurious trips and system downtime in demanding industrial environments.
Features
- Four independent, hard-wired AND gate circuits for high-integrity safety logic.
- Fail-safe design: defaults to a de-energized state upon signal loss or internal component failure.
- Immune to software-based vulnerabilities and EMI-induced logic errors.
- Designed for integration within the robust HIMA Planar-F safety system.
- Reliable operation in high-stakes emergency shutdown (ESD) applications.
Applications
The F 4111A is primarily utilized in safety-critical sectors where deterministic logic is required, including:
- Offshore drilling platforms and marine safety systems.
- Petrochemical refineries and hazardous chemical processing plants.
- Emergency Shutdown (ESD) systems requiring physical-layer protection.
- Safety-instrumented systems (SIS) where software-independent logic is mandated.
Technical Specifications
| Model |
F 4111A |
| Brand |
HIMA |
| Series |
Planar-F |
| Module Type |
4-Fold Fail-Safe AND Gate |
| Operating Voltage |
24 VDC |
| Power Consumption |
4.5 W |
| Operating Temperature |
0 to 60 degC |
Installation Guidelines
- Ensure the system power is completely disconnected before inserting or removing the module from the Planar-F backplane.
- Handle the module using ESD-safe practices to prevent damage to internal components.
- Verify that all field wiring is properly secured to the backplane terminals to maintain signal integrity.
- Ensure adequate ventilation within the cabinet to maintain the operating temperature between 0 and 60 degC.
- Keep signal cabling routed away from high-voltage power lines and significant EMI sources to prevent induced noise.
FAQ
What is the primary function of the F 4111A?
The F 4111A acts as a hardware-coded AND gate. It requires all inputs to be in a high state to produce a high output, serving as a critical logic layer in safety-instrumented systems.
Is this module programmable?
No, the F 4111A is part of the Planar-F system, which utilizes a hard-wired, non-programmable architecture. Logic is determined by the physical wiring of the system backplane.
What happens if the module loses power?
The module is designed to be fail-safe; in the event of a power loss or internal component failure, the module defaults to a safe, de-energized state.
