Description

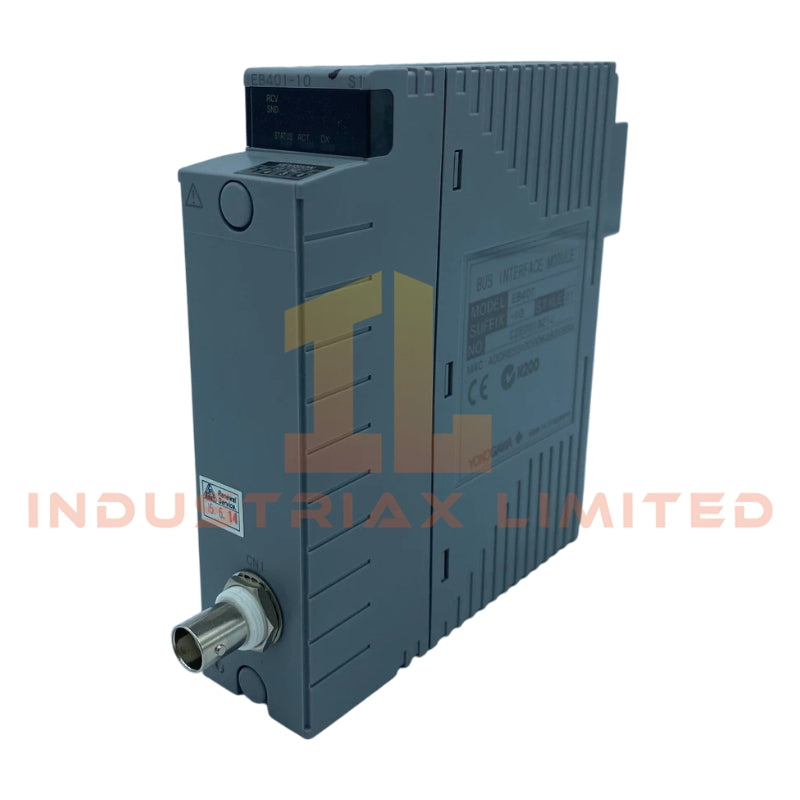

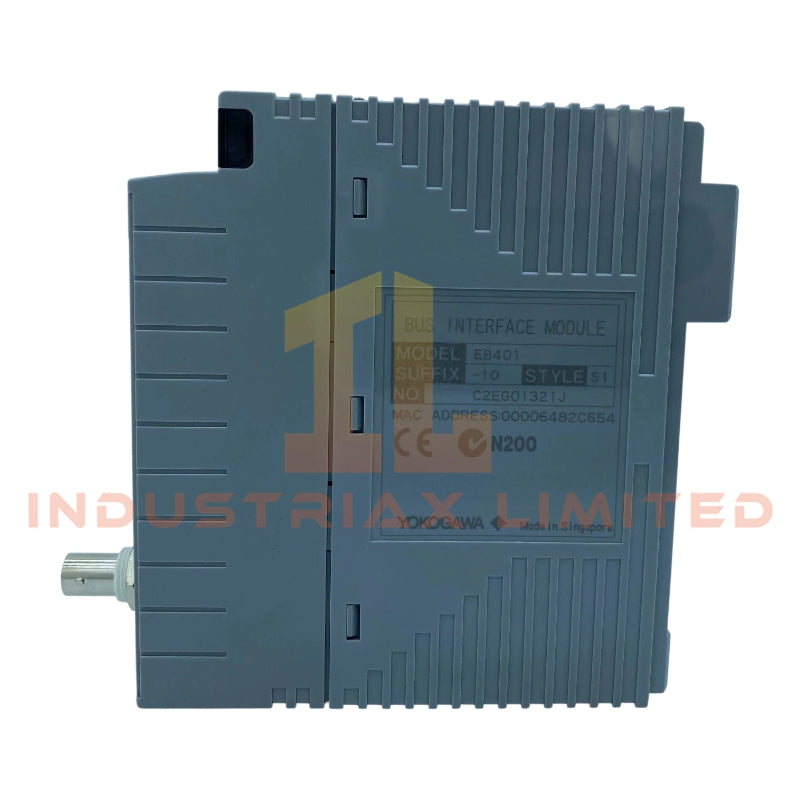

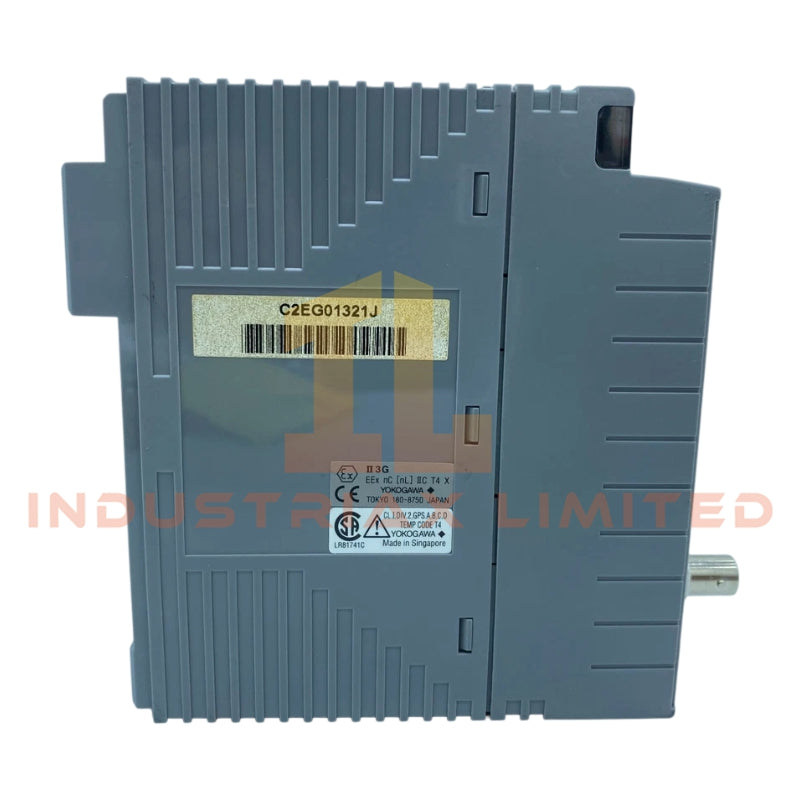

Yokogawa EB401-10 ER Bus Interface Master Module

The Yokogawa EB401-10 serves as the primary EB401 ER Bus Interface Master Module utilized to execute high-speed data communication and I/O management across Yokogawa DCS platforms. It provides deterministic Ethernet Remote (ER) bus control for distributed I/O networks within field control units.

HardwareSpecifications

Parameter	Specification
ModelBrand	Yokogawa EB401-10S1
Origin	Japan
Weight	0.4 kg
Dimensions	150 mm (W) x 100 mm (L) x 50 mm (H)
OperatingTemp	Operating: -10 degC to +60 degC; Storage: -20 degC to +70 degC
PowerConsumption	15 W max
CommunicationProtocol	Ethernet Remote (ER) Bus Protocol
CommunicationSpeed	10/100 Mbps Ethernet
I/O Support	Compatible with Yokogawa I/O modules (digital and analog signals)
MountingType	DIN rail mountable
InputVoltage	24 VDC ±20%
HumidityRange	5% to 95% RH (non-condensing)

Process Control Technical Features

The module implements channel-to-channel isolation to prevent cross-coupling between analog and digital I/O signals, maintaining signal integrity under industrial electrical noise conditions. The EB401-10 supports 4-20 mA HART loop integration on compatible analog I/O modules, allowing for standard field device communication without additional signal converters. Cold junction compensation (CJc) is applied internally for thermocouple measurements connected to the module.

Frequently Asked Questions

Q: Is the EB401-10 hot-swappable within the node rack?
A: No, the module must be powered down before insertion or removal to avoid backplane faults.

Q: Can multiple EB401-10 modules be installed in the same node unit?
A: Yes, but each must occupy odd-numbered slots and be separated by a dummy module (ADCV01) for proper backplane termination.

Q: Does the EB401-10 support firmware upgrades?
A: Firmware can only be updated through the host controller interface; direct module flash is not supported.

Field Installation Guidelines

1. Mount the EB401-10 module on a DIN rail, ensuring proper alignment with the node unit slots.
2. Verify that the module occupies an odd-numbered slot; cover the adjacent right slot with a dummy module (ADCV01) to maintain bus integrity.
3. Connect the ER Bus using standard YCB141 coaxial cabling; do not exceed 185 meters per segment.
4. Ensure proper grounding and shield connection to minimize electromagnetic interference (EMI).
5. Maintain ambient temperature between -10 degC and +60 degC; avoid direct exposure to condensation or dust accumulation.
6. Confirm that input voltage is within 24 VDC ±20% before powering the module.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
