Product Description
Overview

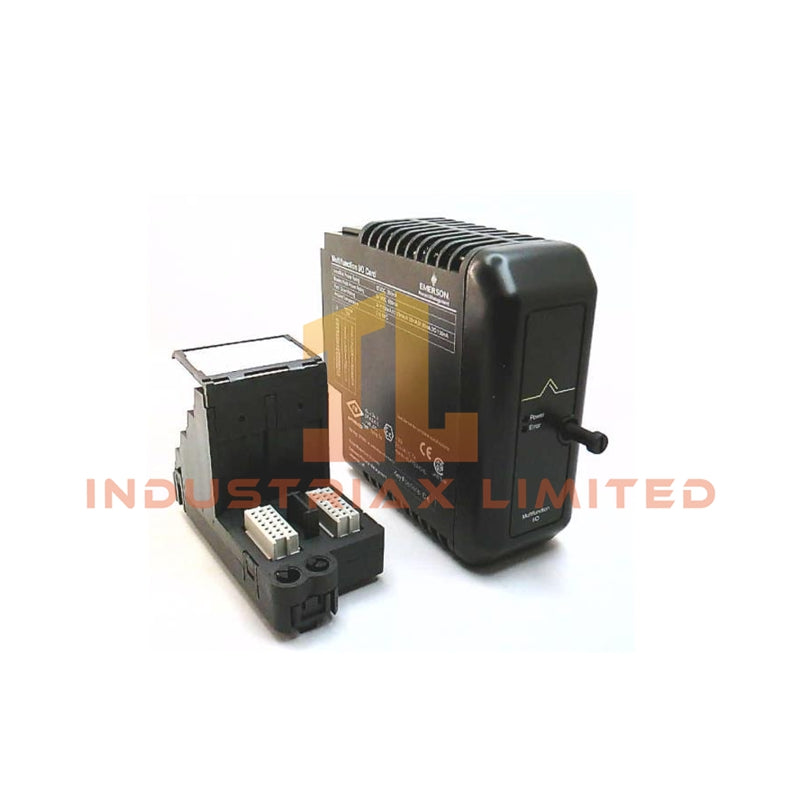

The VE4015 (KJ3006X1-BA1/12P2180X072) Multifunction I/O Module from EMERSON integrates multiple signal types into the DeltaV Distributed Control System. Designed for applications requiring flexible I/O configurations, this module handles digital inputs, analog inputs, and pulse outputs efficiently. Its built-in counter and timer functions allow advanced process monitoring and control within a compact, DIN-rail or cabinet-mountable package.
Technical Specifications
-
Model: VE4015
-
Part Number: KJ3006X1-BA1/12P2180X072
-
Product Type: Multifunction I/O Module
-
Channels: 16 configurable channels
-
Supported I/O Types: Digital Inputs, Analog Inputs, Pulse Outputs
-
Built-in Functions: Counter, Timer
-
Power Supply: Standard DeltaV system power specifications
-
Mounting Options: DIN rail or DeltaV system cabinet
-
Operating Temperature: -40°C to +70°C
-
Storage Temperature: -40°C to +85°C
-
Humidity Range: 5% to 95% non-condensing
-
Dimensions: 30.5 × 9 × 3.5 cm
-
Weight: 0.5 kg
-
Origin: USA / Germany
Applications
-
Distributed process control requiring versatile I/O handling
-
Integration of mixed signal types within DeltaV systems
-
Monitoring and automation in chemical, pharmaceutical, and energy plants
FAQ
Q: Can this module handle both analog and digital signals simultaneously?
A: Yes, the VE4015 is designed to process digital inputs, analog inputs, and pulse outputs on its configurable channels.
Q: What mounting options are available?
A: The module supports both DIN-rail mounting and installation in a DeltaV system cabinet.
Q: Is it suitable for harsh industrial environments?
A: Yes, it operates reliably in temperatures from -40°C to +70°C and humidity levels up to 95% non-condensing.
Q: How does it compare with VE4010 or VE4012 modules?
A: Unlike VE4010/4012, VE4015 combines multifunction channels with integrated counter and timer capabilities, offering enhanced flexibility in complex automation setups.
