Description
Overview

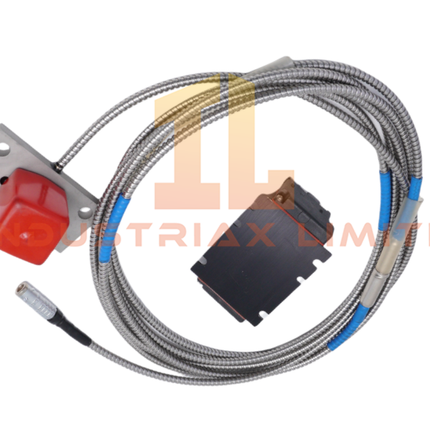

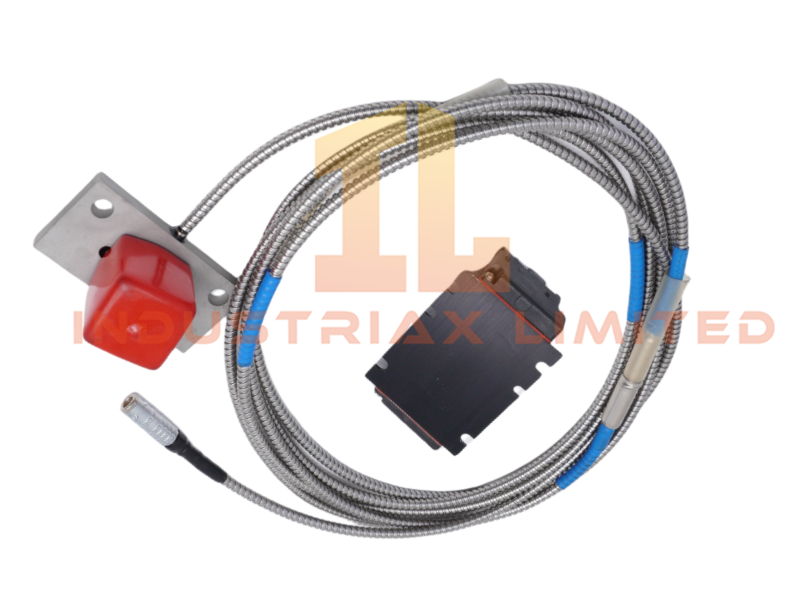

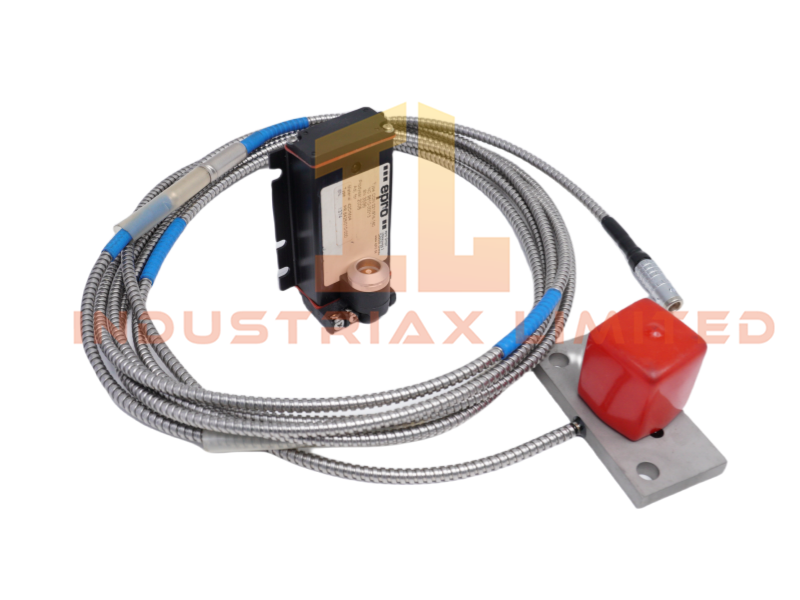

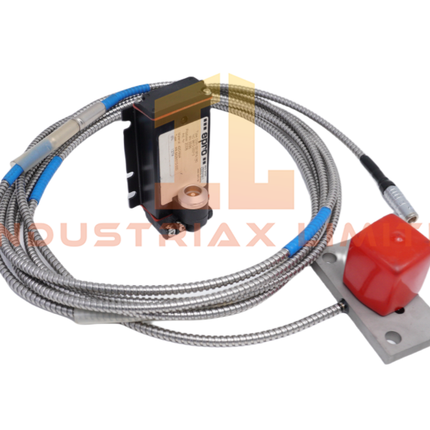

The Emerson PR6426/010‑000 CON021 is an eddy‑current proximity sensor module designed for the AMS 6500 Classic machinery monitoring system. It provides high‑accuracy, non‑contact measurement of shaft displacement and vibration, supporting continuous condition monitoring and machinery protection in demanding industrial environments.
Functional Characteristics
This module is part of the PR6426 proximity probe series and is engineered for applications requiring extended measurement range and robust signal stability. Its electronics maintain accuracy under harsh operating conditions, including high temperatures, oil contamination, and strong mechanical vibration. The sensor integrates seamlessly with CON021‑series signal conditioning units, ensuring compatibility with existing AMS 6500 Classic installations.
The module’s stable output and fast response enable early detection of mechanical degradation such as rotor instability, bearing wear, and misalignment. Its rugged construction supports long‑term reliability, making it suitable for critical rotating equipment in heavy‑duty industrial applications.
Technical Specifications
| Parameter |
Specification |
| Model |
PR6426/010‑000 |
| Part Number |
CON021 |
| Product Type |
Eddy Current Sensor Module |
| Measurement Principle |
Non‑contact eddy current displacement |
| Typical Applications |
Shaft vibration, axial/radial displacement |
| System Platform |
AMS 6500 Classic / EPRO monitoring systems |
| Output Compatibility |
Works with CON021 signal converters |
| Operating Environment |
High‑temperature, oil‑contaminated, vibration‑intense zones |
| Dimensions |
24 × 22 × 5 cm |
| Weight |
0.78 kg |
| Country of Origin |
USA |
| HS Code |
8537101190 |
| System Type |
DCS / Condition Monitoring |
| Availability |
In stock |
Performance Description
The PR6426/010‑000 CON021 delivers high‑resolution displacement and vibration data for real‑time machinery diagnostics. Its extended‑range probe design is ideal for large rotating assets such as turbines, compressors, and industrial pumps. The module’s robust mechanical and electrical design ensures stable operation over long service periods, even in extreme industrial environments.
Integrated diagnostics within the associated CON021 signal converter support rapid troubleshooting and predictive maintenance strategies. This reduces downtime, enhances operational efficiency, and extends equipment lifespan.
Application Scenarios
-
Turbine and generator shaft monitoring
-
Compressor vibration and displacement measurement
-
Pump condition monitoring in petrochemical and power facilities
-
Machinery protection systems in heavy manufacturing
-
Continuous monitoring in predictive maintenance programs
FAQ
Q: Is this module compatible with all PR6426 probe variants? A: It is designed for PR6426‑series probes, but compatibility depends on probe length and calibration range.
Q: Does this module function as a valve positioner? A: No. Despite the original text’s incorrect description, this is an eddy‑current vibration/displacement sensor, not a valve positioner.
Q: What signal converter is required? A: It must be paired with a compatible CON021 signal conditioning module.
Q: Can this sensor operate in high‑temperature environments? A: Yes, the PR6426 series is engineered for elevated temperatures and harsh industrial conditions.
