Description
Overview

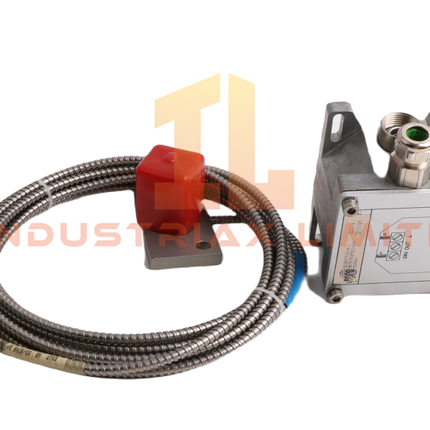

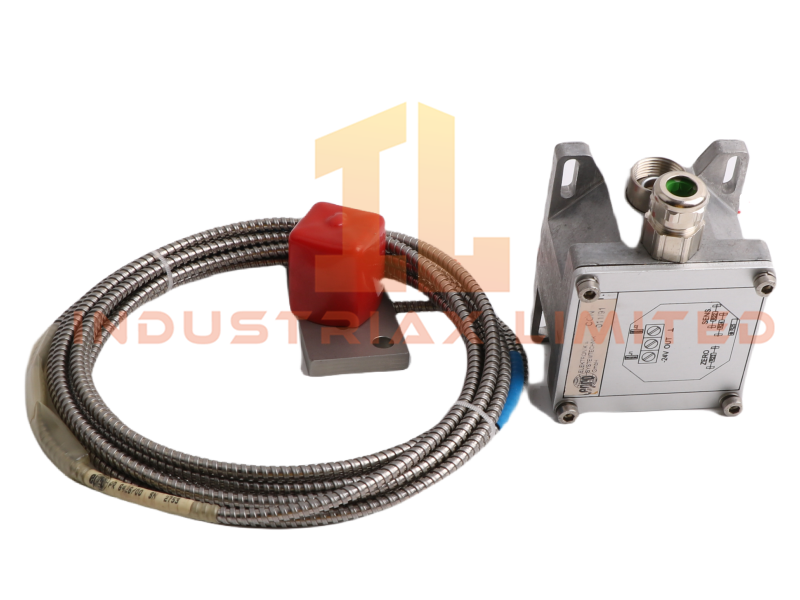

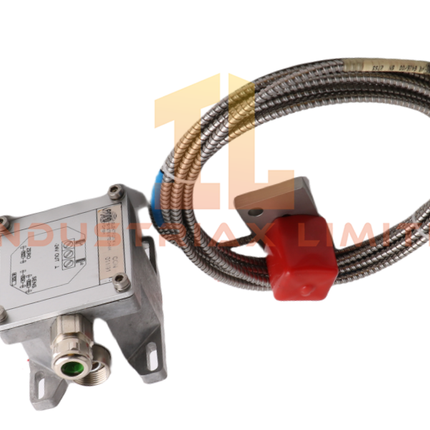

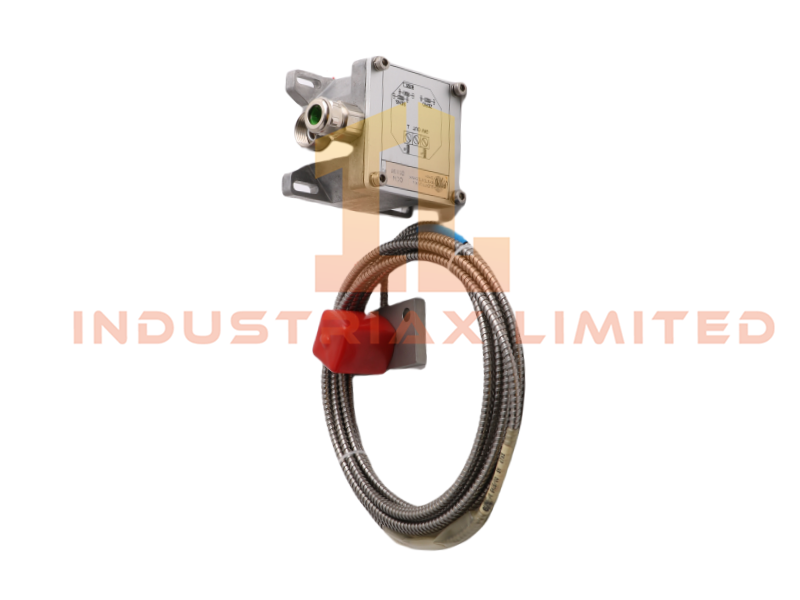

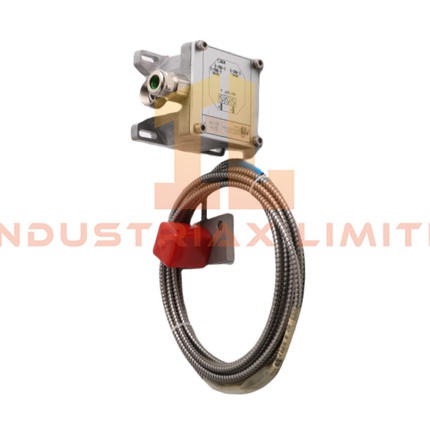

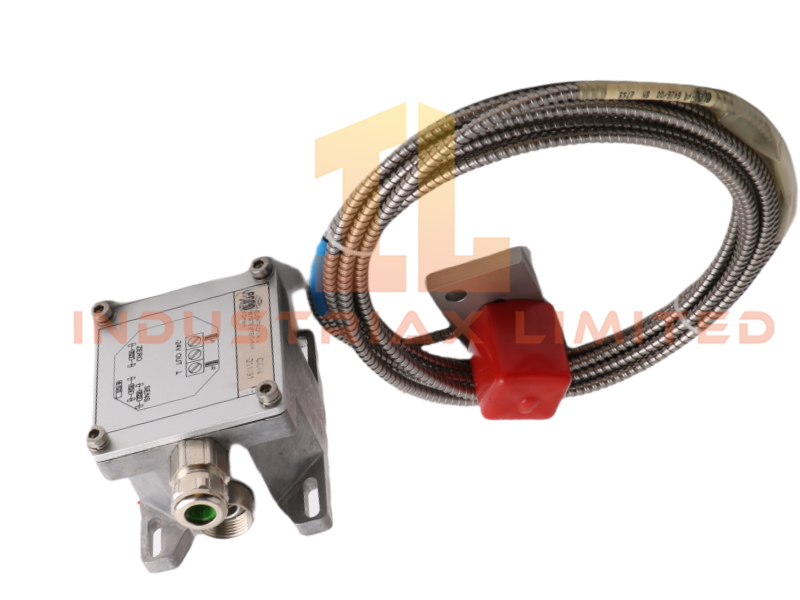

The Emerson PR6426/00 CON011/916‑200 is a current‑signal converter designed for use with PR6426‑series eddy‑current proximity probes within the AMS 6500 Classic machinery monitoring platform. It conditions raw probe signals into standardized current outputs suitable for vibration, displacement, and shaft position monitoring in rotating equipment.
Functional Characteristics
This converter forms a critical part of the eddy‑current measurement chain, ensuring accurate signal conditioning and stable output under demanding industrial conditions. It supports high‑resolution measurement of shaft displacement and vibration, enabling early detection of mechanical degradation such as bearing wear, rotor instability, and misalignment.
The PR6426/00 CON011/916‑200 is engineered for long‑term reliability, with robust mechanical construction and electronics designed to withstand high temperatures, oil contamination, and continuous vibration. Its fast response characteristics support real‑time monitoring and integration into predictive maintenance programs.
Technical Specifications
| Parameter |
Specification |
| Model |
PR6426/00 |
| Part Number |
CON011/916‑200 |
| Product Type |
Current Signal Converter |
| Compatible Probes |
PR6426 eddy‑current proximity probes |
| Output Type |
Standardized current output (per AMS 6500 Classic requirements) |
| Measurement Applications |
Shaft vibration, axial/radial displacement, position |
| System Platform |
AMS 6500 Classic / EPRO monitoring systems |
| Operating Environment |
High‑temperature, oil‑contaminated, vibration‑intense zones |
| Dimensions |
23 × 21 × 6.5 cm |
| Weight |
1.12 kg |
| Country of Origin |
USA |
| HS Code |
8537101190 |
| System Type |
DCS / Condition Monitoring |
| Availability |
In stock |
Performance Description
The converter ensures precise conditioning of probe signals, maintaining linearity and stability across the full measurement range. Its rugged design supports continuous operation in harsh industrial environments, making it suitable for critical rotating assets such as turbines, compressors, and large pumps.
The PR6426/00 CON011/916‑200 integrates seamlessly with AMS 6500 Classic monitoring systems, enabling real‑time diagnostics and trend analysis. Its low‑maintenance design reduces downtime and supports long‑term operational efficiency.
Application Scenarios
-
Turbine and generator shaft vibration monitoring
-
Compressor and pump displacement measurement
-
Machinery protection systems in petrochemical and power facilities
-
High‑speed rotating equipment in manufacturing
-
Predictive maintenance and continuous monitoring programs
FAQ
Q: Is this converter compatible with all PR6426 probe variants? A: Yes, it is designed for PR6426‑series probes, though calibration range depends on probe configuration.
Q: What type of output does the module provide? A: It provides standardized current output suitable for AMS 6500 Classic monitoring systems.
Q: Can it operate in high‑temperature environments? A: Yes, the PR6426 series and associated converters are engineered for elevated temperatures and harsh industrial conditions.
