Description
Overview

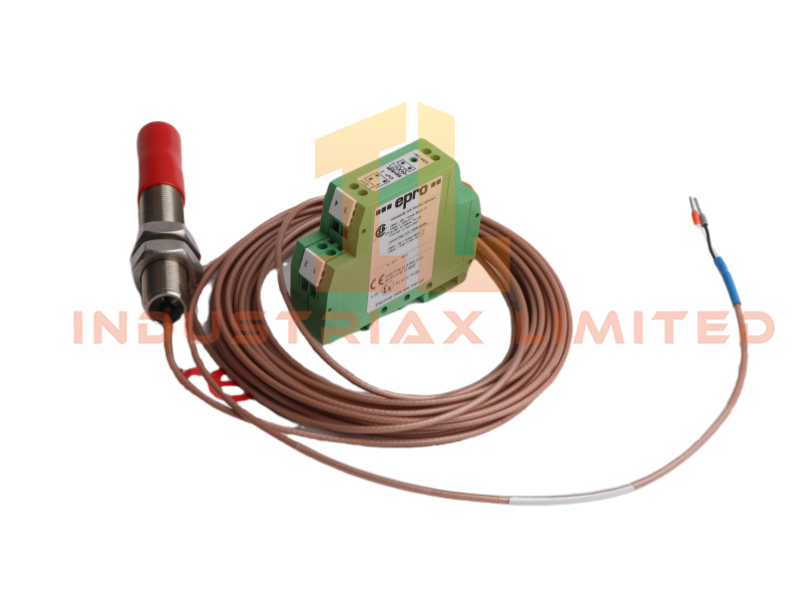

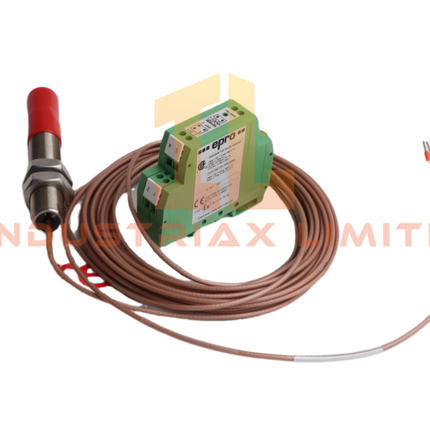

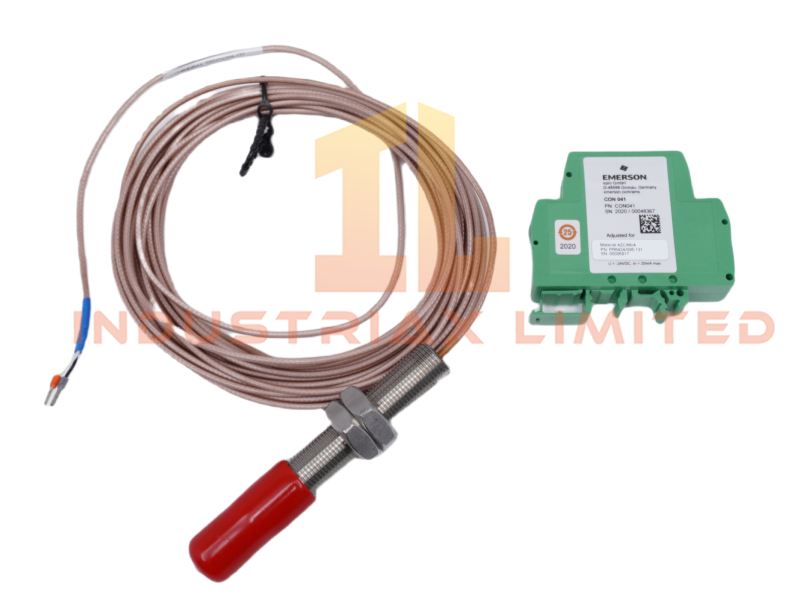

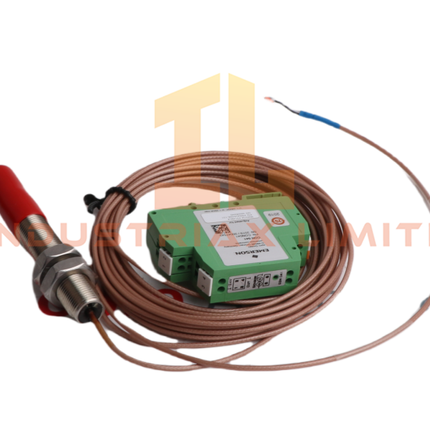

The PR6424/006‑131 (CON041) is an 8 mm eddy‑current proximity sensor from Emerson’s EPRO series, designed for non‑contact measurement of shaft displacement, vibration, and position on rotating machinery. It forms part of a complete proximity measurement chain when paired with compatible extension cables and signal converters.
Functional Characteristics
This sensor operates using eddy‑current technology to detect minute changes in the distance between the probe tip and a conductive target surface. Its design ensures stable linearity, low noise, and high repeatability, making it suitable for condition monitoring and machinery protection systems. The 8 mm tip diameter provides a balanced combination of measurement range and sensitivity.
Key Features
-
8 mm eddy‑current proximity probe for rotating machinery
-
High‑resolution displacement and vibration measurement
-
Stable performance across wide temperature and vibration ranges
-
Compatible with PR642x series extension cables and CON0xx signal converters
-
Robust mechanical construction for harsh industrial environments
-
Suitable for continuous monitoring and predictive maintenance applications
Technical Specifications
| Parameter |
Specification |
| Model / Part Number |
PR6424/006‑131 / CON041 |
| Product Type |
8 mm Eddy‑Current Sensor |
| Product Line |
EPRO |
| Dimensions |
17 × 3.7 × 21 cm |
| Weight |
0.46 kg |
| Measurement Type |
Non‑contact displacement / vibration |
| Probe Tip Diameter |
8 mm |
| Operating Temperature |
−35°C to +180°C (typical for PR642x sensors) |
| Housing Material |
Stainless steel and industrial‑grade polymer |
| Compatible Systems |
EPRO / PR642x proximity measurement chain |
| HS Code |
8537101190 |
| Country of Origin |
USA |
| System Type |
Condition monitoring / DCS integration |
Application Scenarios
-
Shaft vibration and displacement monitoring on turbines, compressors, and pumps
-
Integration with machinery protection systems such as AMS 6500 and other EPRO platforms
-
Predictive maintenance programs requiring high‑accuracy proximity sensing
-
Harsh industrial environments with high temperature, vibration, or contamination levels
Additional Notes
This sensor requires a matching extension cable and signal converter (e.g., CON041) to form a complete measurement loop. Its mechanical design ensures stable mounting and long‑term measurement reliability, even under severe operating conditions.
FAQ
Q: What is the measurement range of the 8 mm probe A: Typical PR6424 8 mm probes support a nominal range of approximately 2–3 mm, depending on the converter used.
Q: Can this sensor be used with non‑Emerson monitoring systems A: Yes. When paired with the appropriate converter, it provides standard conditioned outputs compatible with many third‑party systems.
Q: Does the sensor include the converter module A: No. The CON041 converter must be ordered separately.
