Overview

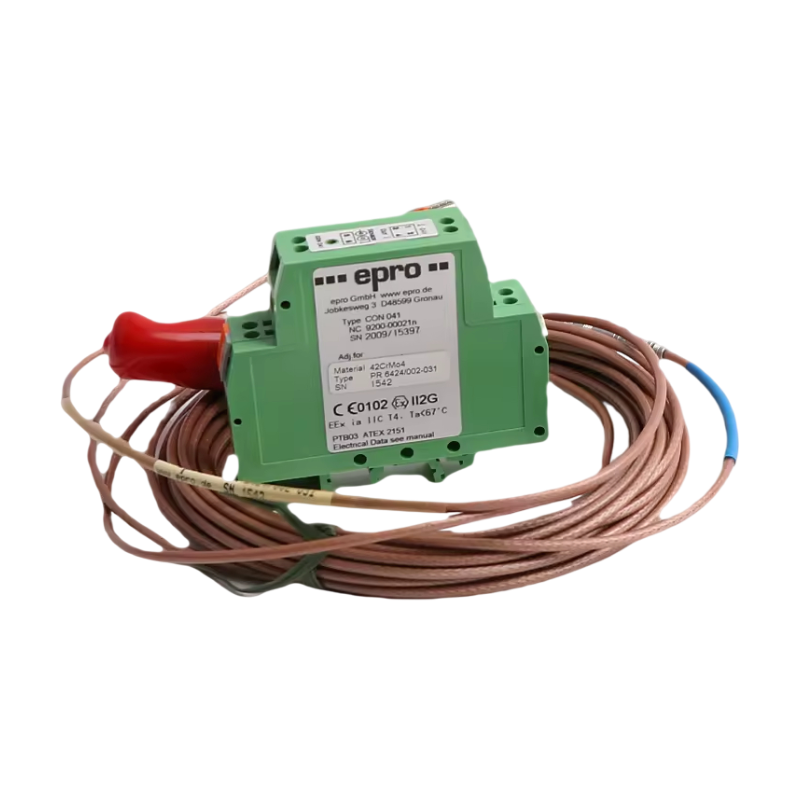

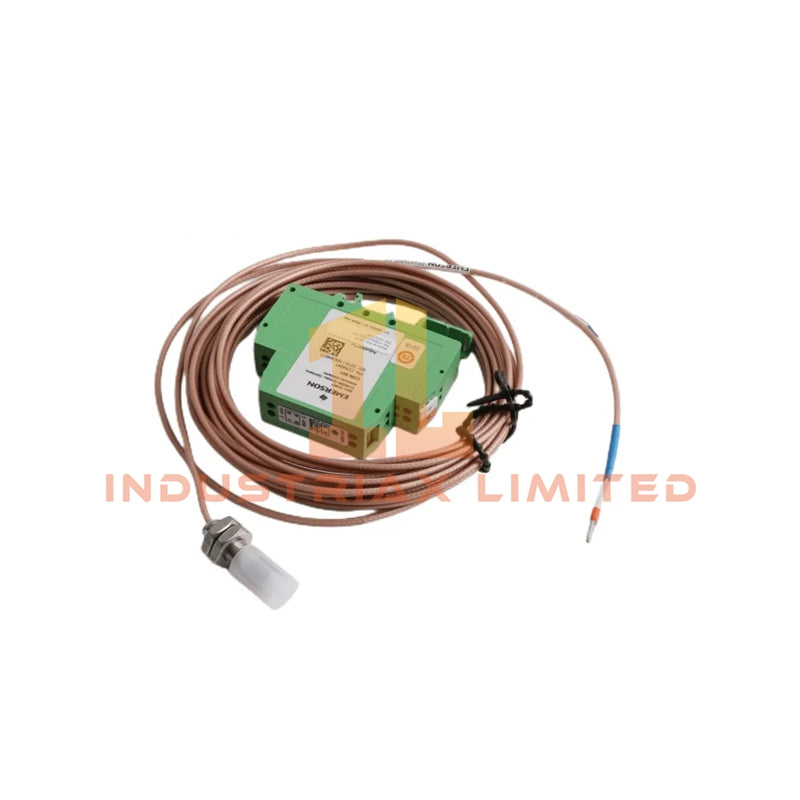

The Emerson PR6424/000-121 displacement sensor paired with the CON031 signal conditioning module is a high-resolution, compact measurement system engineered for precision monitoring of rotating machinery. Designed for harsh industrial environments, this system delivers accurate non-contact shaft displacement readings and supports both static positioning and dynamic vibration analysis.
Operating Principle
The sensor functions on the principle of electromagnetic induction. The probe generates a high-frequency field at its tip, and changes in proximity to a conductive target modify the eddy-current response. These variations are converted into proportional electrical signals, which the CON031 module linearizes, scales, and translates into standard industrial outputs suitable for machinery protection and control systems.
Key Specifications
PR6424/000-121 Probe
Sensing Performance
-
Sensor Type: Eddy-current, non-contact displacement
-
Probe Diameter: 5 mm
-
Linear Measuring Range: 1.0 mm (40 mil)
-
Recommended Air Gap: 0.25–0.5 mm
-
Sensitivity: 4 V/mm (typical)
-
Frequency Bandwidth: DC–10 kHz
-
Minimum Shaft Diameter: ≥12 mm
-
Target Material: Magnetic steel (e.g., AISI 4140 / 42CrMo4 equivalent)
Mechanical Construction
-
Thread Options: M8x1 or 5/16”-24 UNF (variant-dependent)
-
Cable Length: 1 m integrated cable (121 configuration)
-
Cable Insulation: PTFE, high-temperature resistant
-
Sensor Tip Material: PEEK polymer
-
Housing Material: Stainless steel, compact design for tight installations
Environmental Ratings
-
Operating Temperature (Probe): -35°C to +180°C
-
Cable Temperature Limit: up to +150°C
-
Protection Rating: IP66 (dust-tight, water-resistant)
-
Mechanical Shock Resistance: up to 40 g
Applications
-
Shaft vibration monitoring in turbines, compressors, and motors
-
Precise rotor positioning for high-speed machinery
-
Condition monitoring in severe industrial environments
FAQ
Q: Can the PR6424/000-121 probe measure ferrous and non-ferrous metals?
A: It is optimized for magnetic steels such as AISI 4140 and 42CrMo4. Non-ferrous materials may require recalibration or alternative probes.
Q: Can this system handle continuous high-temperature operations?
A: Yes, the probe can operate up to 180°C, with cable insulation rated to 150°C.
Q: How does the CON031 module integrate with control systems?
A: It provides linearized, scaled outputs compatible with standard industrial interfaces, enabling seamless integration with protection and monitoring systems.
