Description
Overview

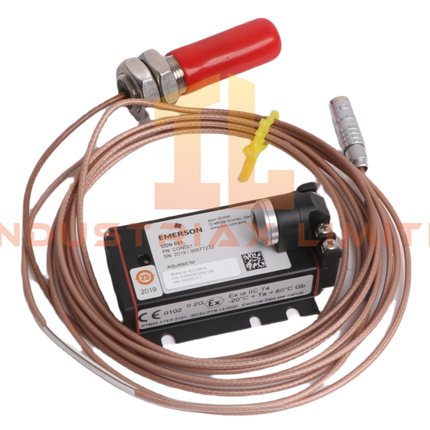

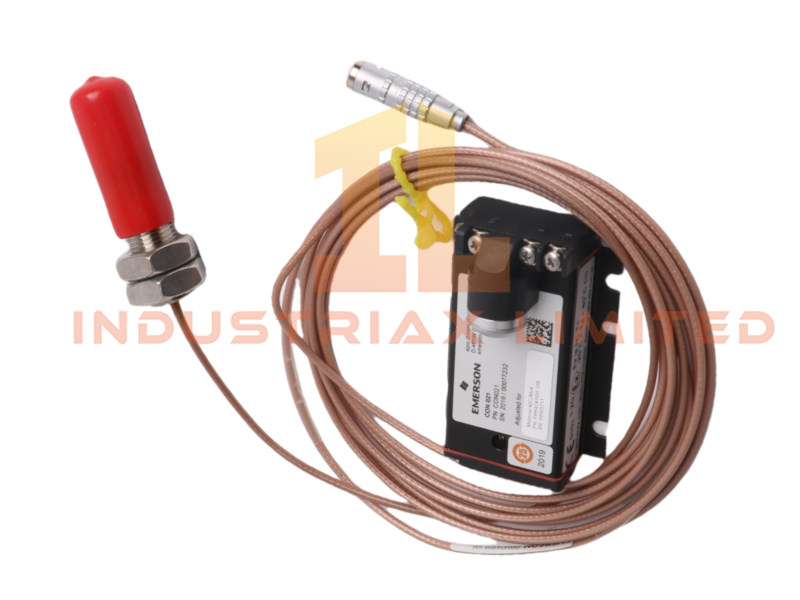

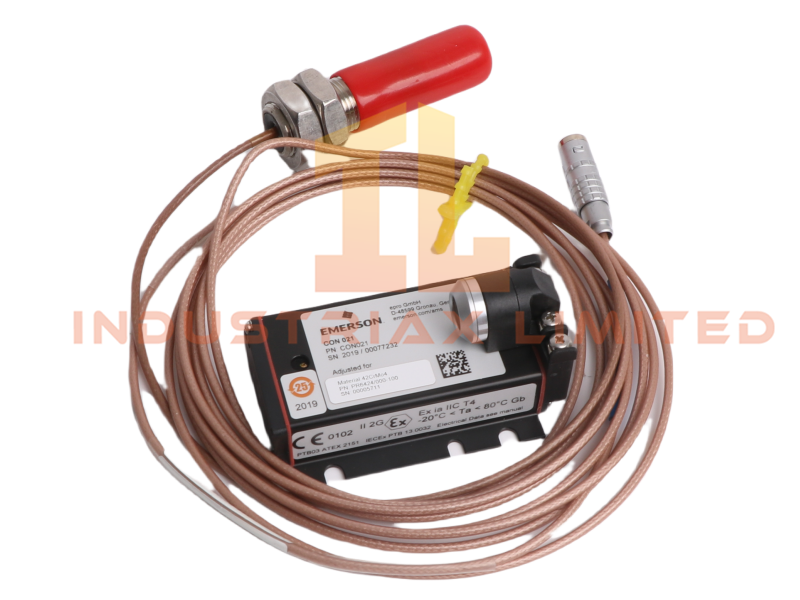

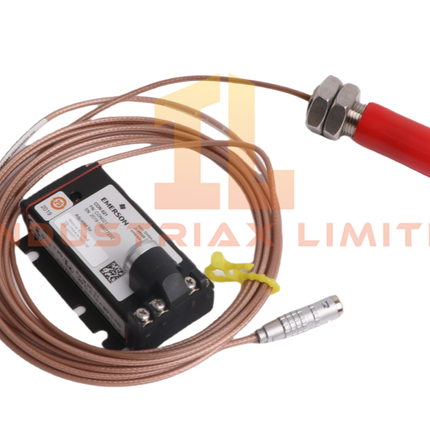

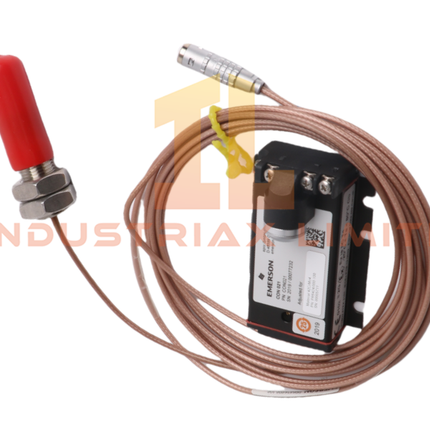

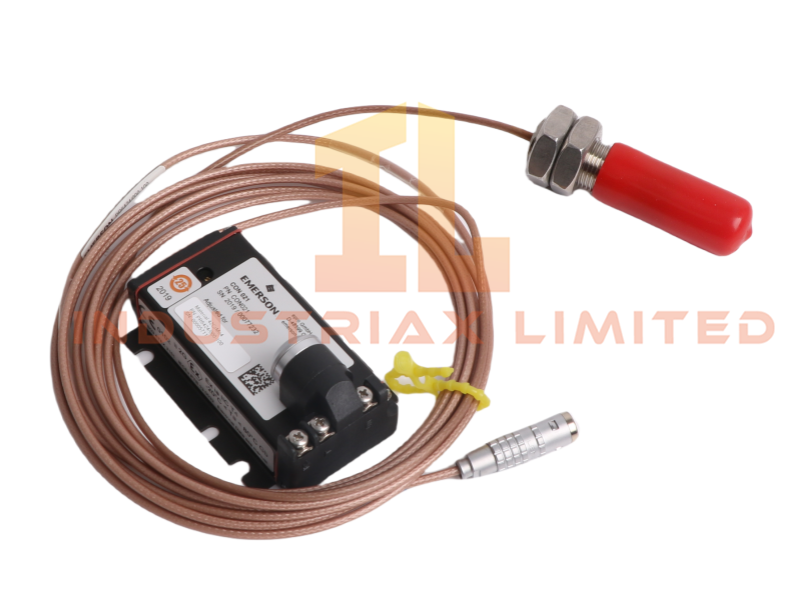

The PR6424/00-010 is an eddy‑current proximity sensor module from Emerson’s EPRO series, engineered for precise non‑contact measurement of shaft vibration and displacement. Designed for integration into condition‑monitoring and protection systems, it provides stable, high‑resolution feedback essential for machinery diagnostics in demanding industrial environments.
Technical Specifications
| Parameter |
Specification |
| Model |
PR6424/00-010 |
| Product Type |
Eddy Current Proximity Sensor Module |
| Measurement Type |
Non‑contact vibration and displacement |
| Technology |
Eddy current transducer |
| Frequency Response |
Wide‑band response suitable for low‑ and high‑frequency vibration |
| Operating Environment |
High‑temperature and high‑stress industrial applications |
| System Compatibility |
EPRO monitoring systems and third‑party vibration analyzers |
| Dimensions |
18 × 18 × 5 cm |
| Weight |
0.5 kg |
| Country of Origin |
USA |
| HS Code |
8537101190 |
| Condition |
New |
| Minimum Order |
1 unit |
Functional Description
The PR6424/00-010 module is built for continuous monitoring of rotating equipment such as turbines, compressors, pumps, and motors. Its eddy‑current sensing technology enables accurate detection of shaft displacement, vibration amplitude, and dynamic behavior without physical contact, eliminating mechanical wear and ensuring long service life.
The sensor’s rugged construction allows it to withstand extreme temperatures, mechanical shock, and contamination. Its broad frequency response supports detailed analysis of both slow‑speed and high‑speed machinery. The module integrates seamlessly with Emerson’s protection systems and is also compatible with many third‑party diagnostic platforms, making it suitable for retrofit or mixed‑vendor installations.
Multiple probe lengths and cable configurations are available, enabling flexible installation in various machine layouts. This adaptability makes the PR6424/00-010 a reliable choice for predictive maintenance programs focused on reducing downtime and improving asset reliability.
Application Scenarios
-
Turbine and compressor vibration monitoring
-
Oil and gas rotating equipment diagnostics
-
Power plant machinery protection
-
Manufacturing equipment condition monitoring
-
High‑temperature industrial environments requiring non‑contact sensing
FAQ
Q: What type of measurement does this module provide? A: It measures non‑contact vibration and shaft displacement using eddy‑current technology.
Q: Is it compatible with older EPRO systems? A: Yes, it is designed for full compatibility with EPRO monitoring platforms.
Q: Can it be used with third‑party vibration analyzers? A: The module supports integration with many third‑party diagnostic systems.
