Description
Product Description
Overview

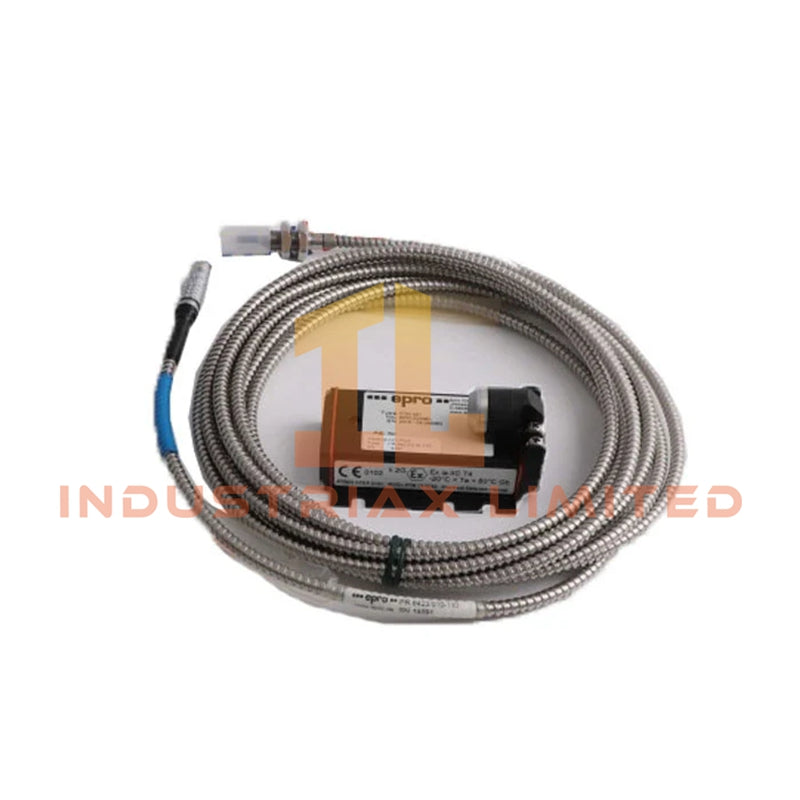

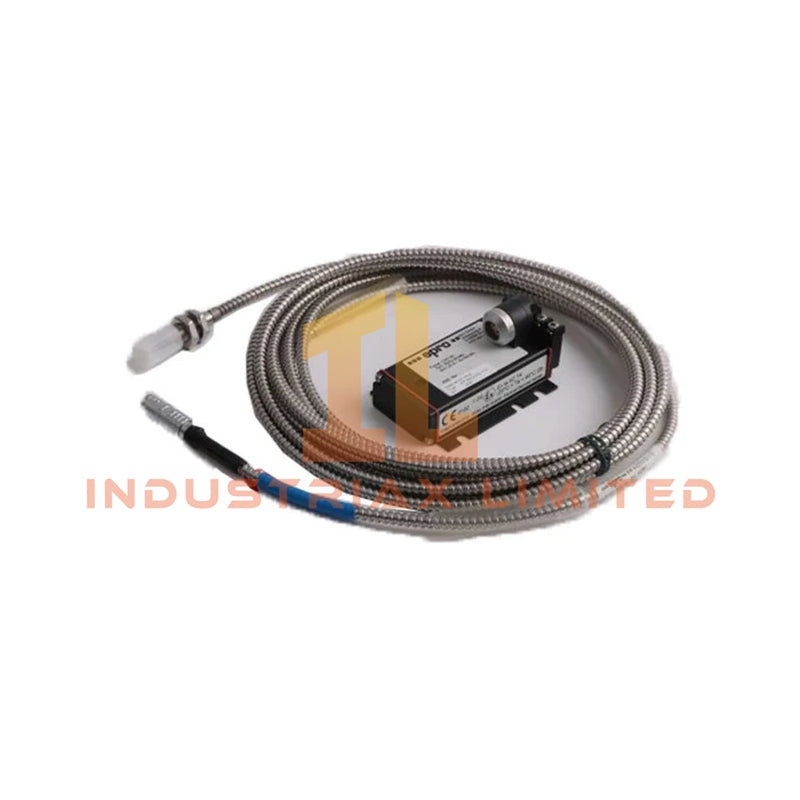

The PR6423/10R-040-HT paired with the CON021 signal conditioner is a high-temperature eddy current measurement system designed for continuous monitoring of rotor dynamics in extreme thermal environments. This assembly combines a rugged 8 mm proximity probe with a matched converter unit, delivering precise vibration and shaft displacement feedback in demanding rotating machinery applications. Its stable performance under severe heat makes it ideal for turbine sections and other high-temperature mechanical zones where conventional proximity systems lose calibration stability.
Technical Specifications
Probe Unit – PR6423/10R-040-HT
-
Sensor Type: Eddy Current Proximity / Displacement Probe
-
Probe Diameter: 8 mm
-
Linear Measuring Range: 2 mm (80 mils nominal window)
-
Recommended Installation Air Gap: ~0.5 mm
-
Sensitivity: 8 V/mm ±5% (calibrated at 0–45°C)
-
Linearity Deviation: ±0.025 mm within calibrated range
-
Minimum Shaft Diameter: ≥25 mm
-
Target Material: Ferromagnetic steel (e.g., 42CrMo4 / AISI 4140 equivalent)
Thermal & Environmental Performance
-
Operating Temperature Range: –35°C to +220°C (extended high-temperature design)
-
Protection Rating: IP66 (dust tight and resistant to high-pressure water jets)
-
Long-term Operation: Optimized for sustained exposure in high-heat turbine zones

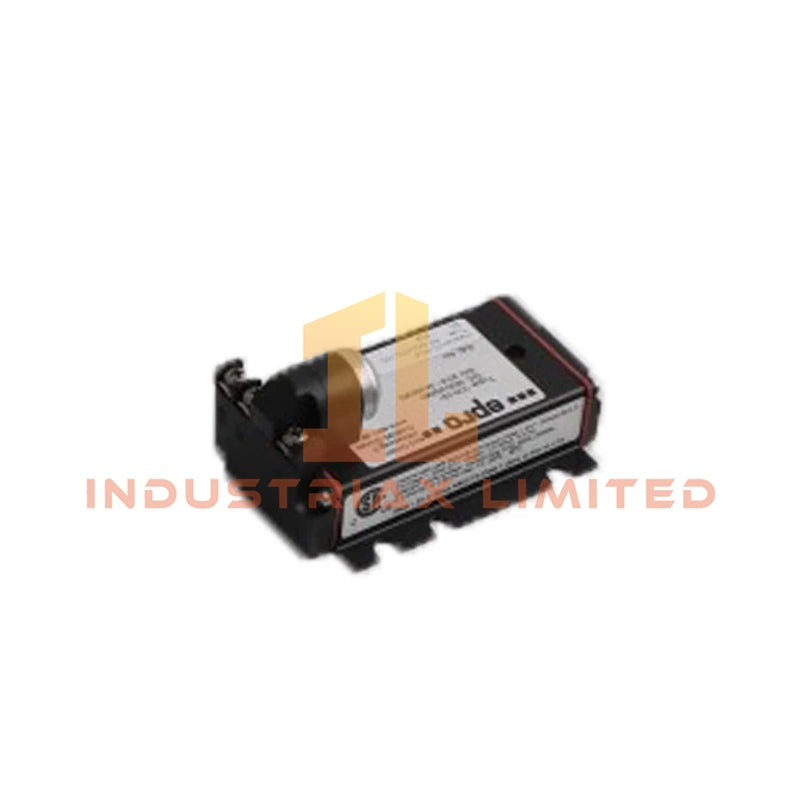

Converter Unit – CON021
-
Signal Bandwidth: 0–20 kHz (–3 dB)
-
Response Time: <15 μs rise time
-
Supply Voltage: 23–32 V DC (dual output scaling supported)
-
Output Signal Ranges: –4 V to 20 V or –2 V to 18 V
-
Housing Material: Die-cast aluminum alloy (GD-AISi9Cu3)
-
Protection Rating: IP65
-
Weight: 0.6 kg
Applications
This assembly is engineered for high-reliability monitoring of rotordynamics in:
-
Gas and steam turbines
-
Turbo-compressors and high-speed rotors
-
High-temperature industrial zones where conventional probes fail
-
Critical machinery requiring continuous displacement and vibration feedback
FAQ
Q: Can this probe be used on non-ferromagnetic shafts?
A: No, it is optimized for ferromagnetic steels such as 42CrMo4 or AISI 4140. Performance on non-ferromagnetic materials will not be accurate.
Q: What is the maximum temperature the probe can withstand?
A: The PR6423/10R-040-HT operates reliably up to 220°C continuous exposure.
Q: Are the output ranges configurable?
A: Yes, the CON021 converter supports dual output ranges: –4 V to 20 V or –2 V to 18 V.
Q: How does this system compare to lower-temperature eddy current probes?
A: Unlike standard probes, the PR6423/10R-040-HT maintains calibration stability and sensitivity in extreme heat, making it suitable for turbine and high-thermal zones.
