Overview

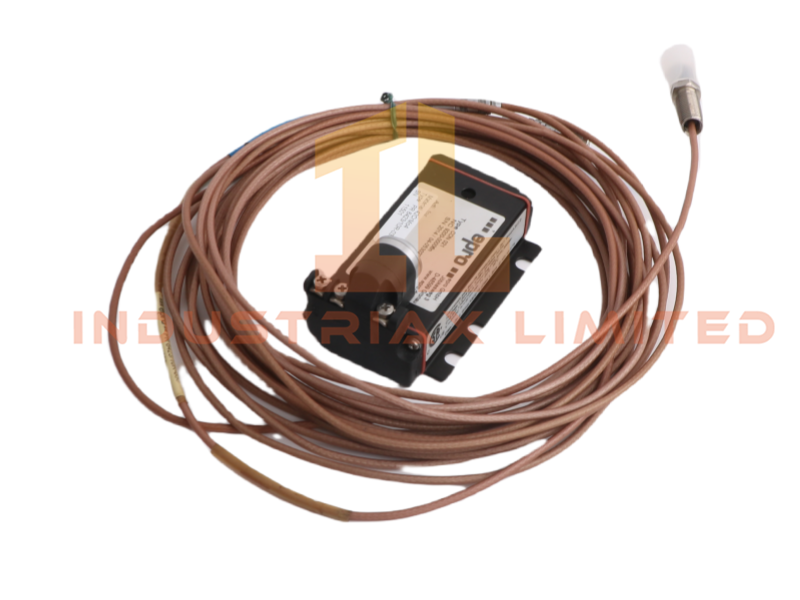

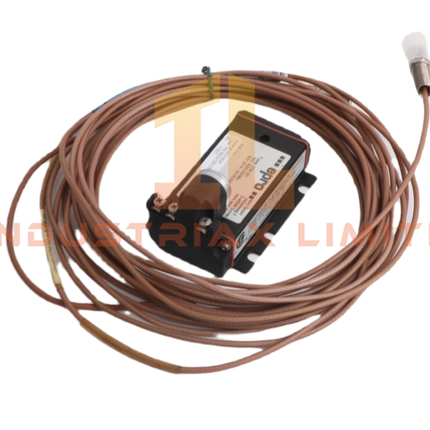

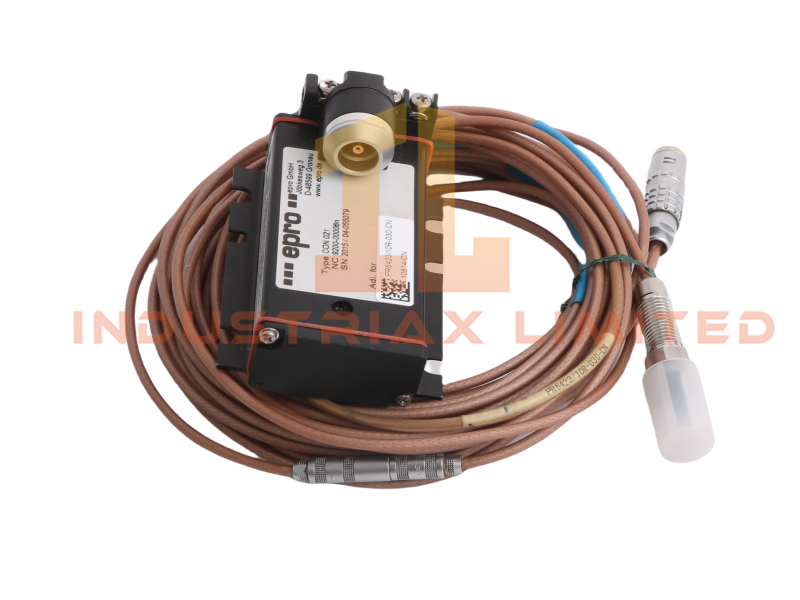

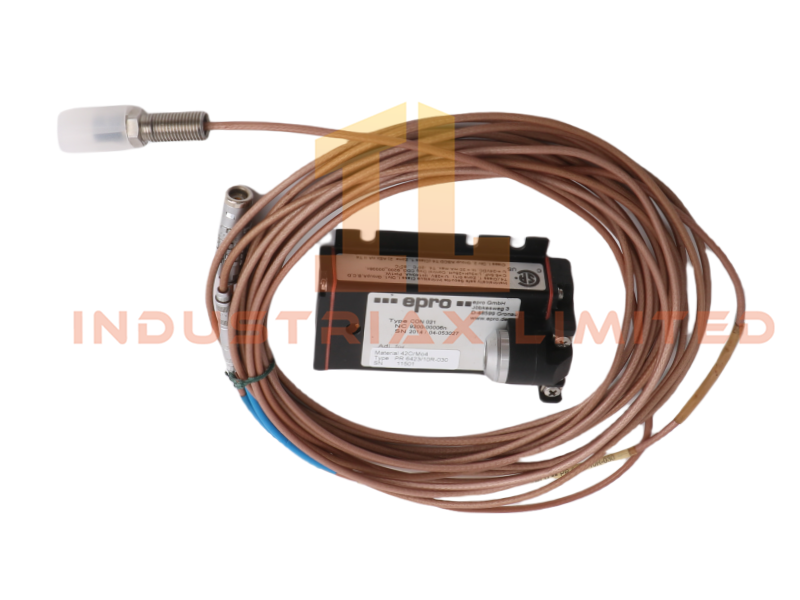

The PR6423/01R‑040 CON021 eddy‑current module from EMERSON is a precision displacement‑measurement component designed for machinery condition monitoring and high‑resolution vibration analysis. Built for long‑term stability in demanding industrial environments, this module forms part of the EPRO proximity measurement system and supports a wide range of non‑contact displacement probes.
Key Features
-
High‑accuracy eddy‑current signal conversion for shaft displacement and vibration monitoring
-
Optimized for integration with EPRO proximity probes and CON0xx converter series
-
Stable output performance under thermal variation and electromagnetic interference
-
Suitable for continuous monitoring in rotating machinery, turbines, compressors, and critical process equipment
-
Designed for DCS‑based monitoring architectures
-
Robust mechanical construction for long‑term reliability
Technical Specifications
| Parameter |
Specification |
| Model |
PR6423/01R‑040 CON021 |
| Product Type |
Eddy Current Sensor / Signal Converter |
| Brand |
EMERSON |
| Product Line |
EPRO Series |
| Condition |
Brand New |
| Measurement Principle |
Eddy‑current displacement conversion |
| Typical Applications |
Shaft vibration, axial displacement, runout monitoring |
| Output Characteristics |
Noise‑optimized analog output (voltage) |
| Compatibility |
EPRO PR642x probe family, CON0xx converters |
| Operating Environment |
Industrial, high‑temperature, EMI‑exposed areas |
| Weight |
0.28 kg |
| Dimensions |
20 × 20 × 4 cm |
| System Integration |
DCS / PLC monitoring systems |
| Communication |
Ethernet router interface (module‑level service) |
| Origin |
USA |
| Minimum Order Quantity |
1 |
| HS Code |
8537101190 |
| Availability |
In Stock |
Functional Description
The PR6423/01R‑040 CON021 module processes raw eddy‑current probe signals and converts them into stable, linearized displacement outputs suitable for real‑time monitoring. Its internal circuitry is engineered to suppress electrical noise and maintain measurement accuracy even in harsh industrial conditions.
The module supports predictive maintenance strategies by enabling continuous tracking of shaft movement, bearing condition, and mechanical wear. Its compatibility with the EPRO probe ecosystem ensures flexible deployment across various machine types.
Application Scenarios
-
Turbine and compressor vibration monitoring
-
High‑speed rotating machinery displacement measurement
-
Axial position tracking in pumps and motors
-
Condition‑based maintenance systems
-
Aerospace and automotive test benches
Similar Model Comparison
| Model |
Output Type |
Typical Use Case |
| PR6423/01R‑040 |
Voltage output |
General displacement monitoring |
| PR6423/01R‑030 |
Extended temperature range |
High‑temperature machinery |
| PR6423/01R‑100 |
Long‑range measurement |
Large‑shaft equipment |
FAQ
Q: Is the PR6423/01R‑040 CON021 compatible with older EPRO systems? A: Yes. It supports legacy EPRO proximity probes and integrates with standard CON0xx converters.
Q: Can this module operate in high‑EMI environments? A: The design includes shielding and noise‑suppression circuitry suitable for electrically noisy industrial sites.
Q: Is the product still supported after discontinuation? A: Although discontinued in 2018, replacement units and spare parts remain available for maintenance needs.
