Description
Overview

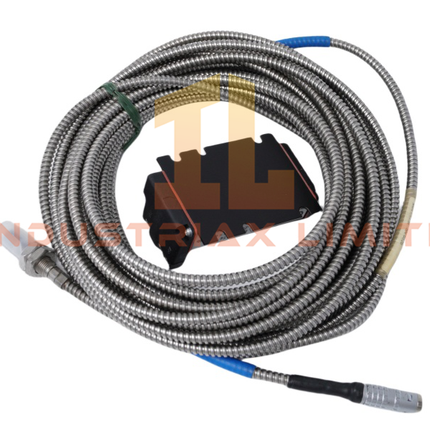

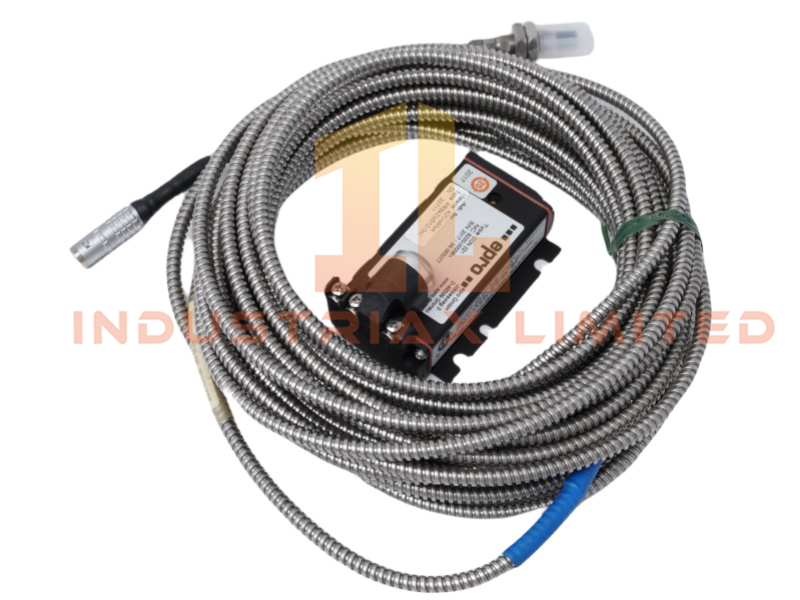

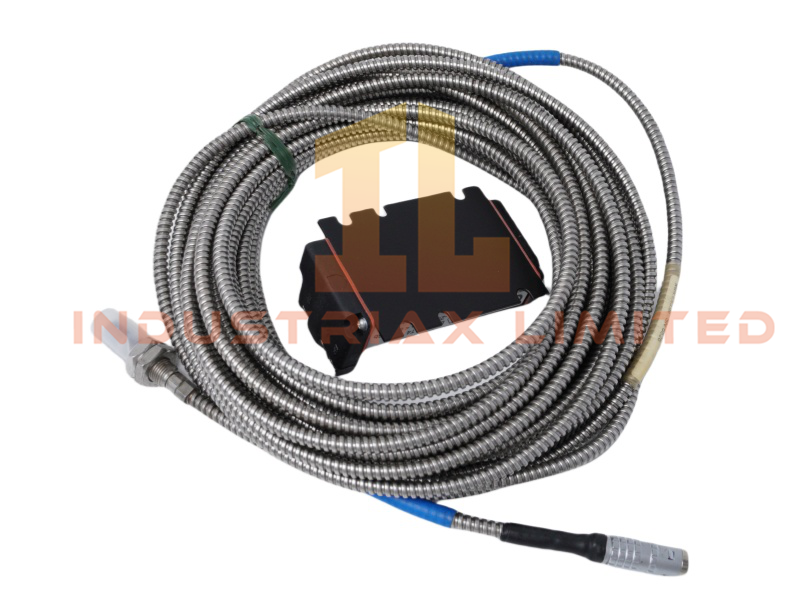

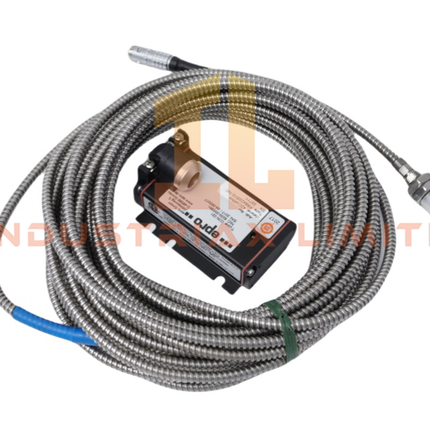

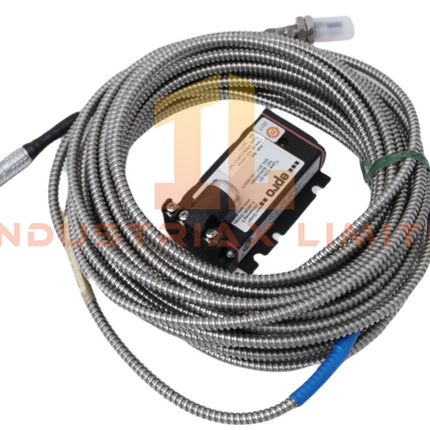

The PR6423/010‑000 CON021 eddy current signal converter is part of Emerson’s EPRO monitoring platform and is designed to process displacement and vibration signals from PR6423‑series probes. It provides a stable, linearized output suitable for machinery protection systems, enabling accurate monitoring of shaft vibration, axial displacement, and relative movement in high‑speed rotating equipment.
Functional Characteristics
The PR6423/010‑000 CON021 functions as the signal‑conditioning component of an eddy current measurement chain. When paired with an 8 mm PR6423 probe, it converts raw eddy current signals into standardized analog outputs compatible with DCS, PLC, and dedicated vibration monitoring systems. Its temperature‑compensated electronics ensure consistent performance across wide operating ranges, while its robust shielding minimizes the influence of electromagnetic interference.
The converter’s stainless‑steel housing and sealed design support long‑term operation in harsh industrial environments, including high temperatures, elevated pressures, and corrosive atmospheres. Its modular architecture simplifies installation and allows easy replacement or configuration adjustments.
Technical Specifications
| Parameter |
Specification |
| Model |
PR6423/010‑000 CON021 |
| Brand |
Emerson |
| Product Type |
Eddy Current Signal Converter |
| Product Series |
EPRO |
| Condition |
Brand New |
| Weight |
0.36 kg |
| Dimensions |
20 × 20 × 4 cm |
| Origin |
USA |
| Minimum Order Quantity |
1 |
| HS Code |
8537101190 |
| System Integration |
DCS / Condition Monitoring Systems |
| Operating Status |
Active |
| Probe Compatibility |
PR6423 8 mm eddy current probes |
| Output Type |
Standardized analog output (typically 4–20 mA or voltage output depending on configuration) |
| Temperature Compensation |
Integrated |
| Housing Material |
Stainless steel |
| Environmental Resistance |
High temperature, pressure, and corrosive media |
| Application Type |
Vibration and displacement measurement |
Application Scenarios
-
Shaft vibration and displacement monitoring on turbines and compressors
-
Axial position measurement in steam and gas turbine bearing housings
-
Condition monitoring in petrochemical, refining, and power generation facilities
-
Integration with EPRO and third‑party vibration protection systems
-
Predictive maintenance programs requiring continuous, high‑accuracy measurement
FAQ
Q: Which probes are compatible with the PR6423/010‑000 CON021? A: It is designed for use with PR6423‑series 8 mm eddy current probes.
Q: What type of output does the converter provide? A: It provides standardized analog outputs suitable for DCS, PLC, and vibration monitoring systems.
Q: Can this converter operate in high‑temperature environments? A: Yes. Its temperature‑compensated electronics and rugged housing support operation in elevated temperatures typical of turbomachinery installations.
