Product Description
Overview

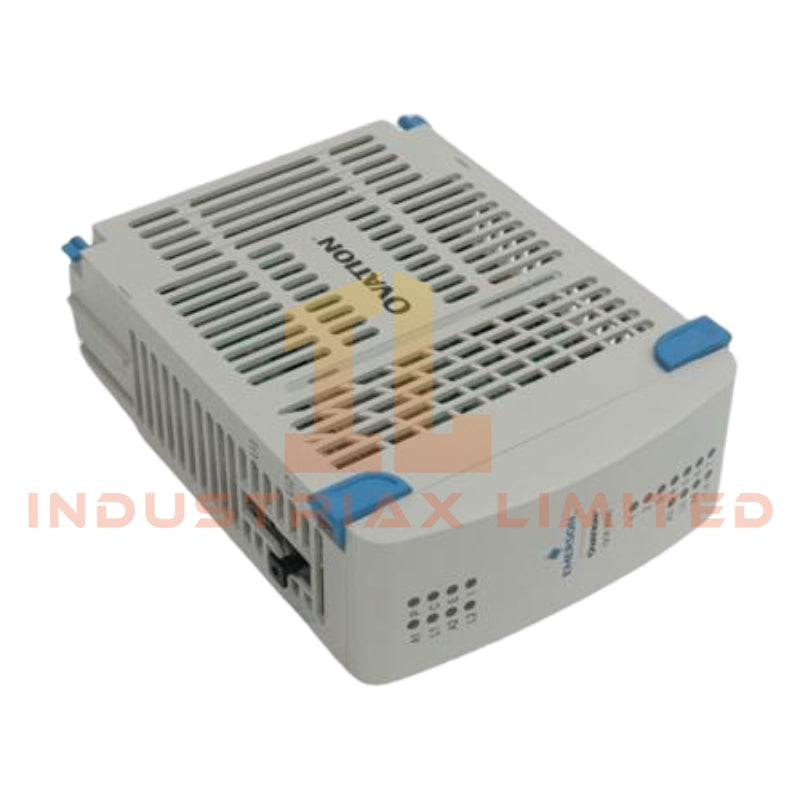

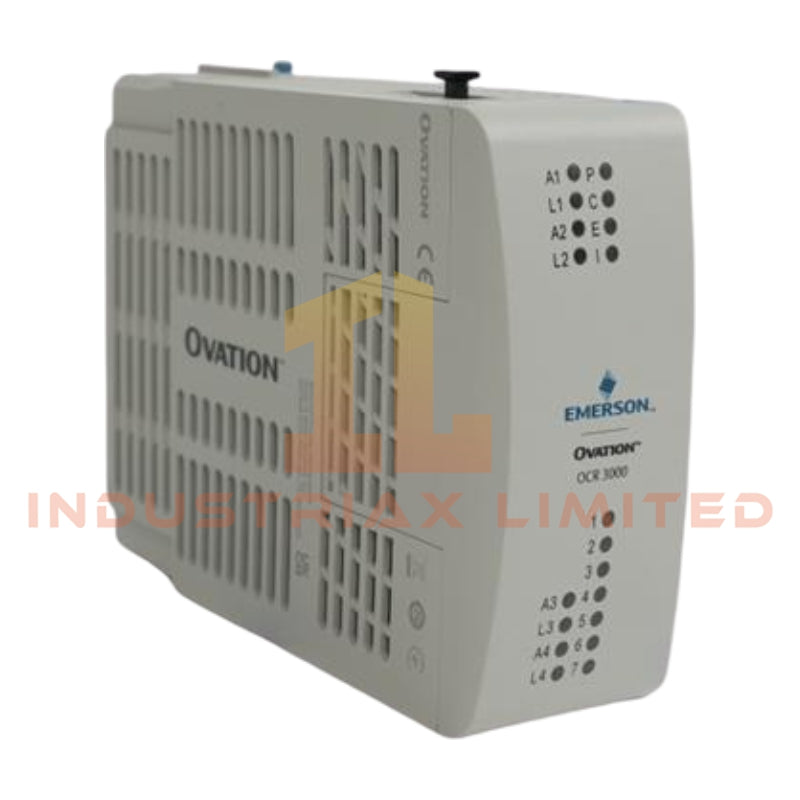

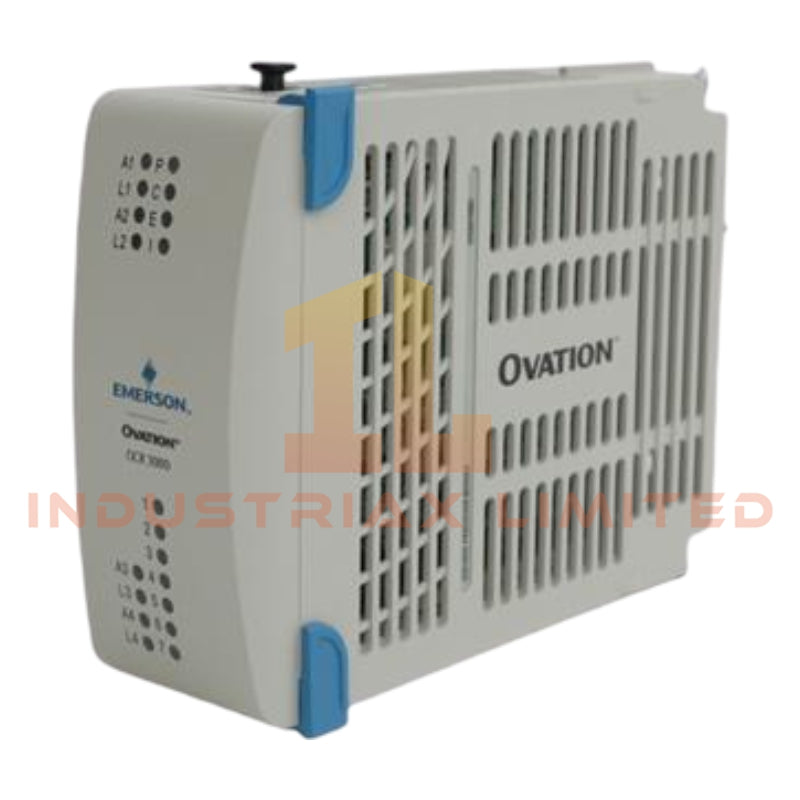

The Emerson Ovation 5X00790G01 is a high-performance communication interface module designed to facilitate seamless data exchange between Ovation DCS systems and external devices. Supporting both serial and Ethernet connections, this module enables protocol conversion, data buffering, and network integration with minimal downtime.
Key Features
-
Compatible with RS-232 and RS-485 serial interfaces and 10/100 Mbps Ethernet
-
Supports Modbus RTU/TCP, ASCII, and Ovation proprietary protocols
-
Hot-swappable design ensures continuous system operation
-
Integrated status LEDs for link and activity monitoring
-
Lightweight and compact form factor
Technical Specifications
| Specification |
Details |
| Communication Ports |
1 × DB9 serial port (RS-232/RS-485 selectable), 1 × RJ-45 Ethernet port (10/100 Mbps) |
| Maximum Serial Baud Rate |
115.2 kbps |
| Protocol Support |
Modbus RTU/TCP, ASCII, Ovation proprietary protocols |
| Logic Supply Voltage |
+5 VDC |
| Field Supply Voltage |
+24 VDC (via backplane) |
| Typical Power Consumption |
3.2 W |
| Isolation |
500 VAC between communication ports and system ground |
| Operating Temperature Range |
-20°C to +70°C |
| Relative Humidity |
5%–95%, non-condensing |
| Weight |
320 g |
| Product Origin |
USA |
| Condition |
In stock |
Applications
Ideal for industrial control environments where robust communication between the Ovation DCS and third-party devices is required. Suitable for power plants, process control facilities, and remote monitoring systems.
FAQ
Q: Can this module be used while the system is running?
A: Yes, the 5X00790G01 is hot-swappable, allowing installation or replacement without interrupting system operations.
Q: Which protocols are supported?
A: The module supports Modbus RTU/TCP, ASCII, and Ovation proprietary protocols for versatile integration.
Q: What type of devices can be connected via Ethernet or serial?
A: It can interface with controllers, PLCs, SCADA systems, and other Ovation-compatible instruments.
Similar Models
The 5X00790G01 is part of Emerson’s Ovation communication module series. Compared with models like 5X00791G01, it offers similar serial and Ethernet connectivity but differs in port configuration and power isolation ratings.
