Product Description

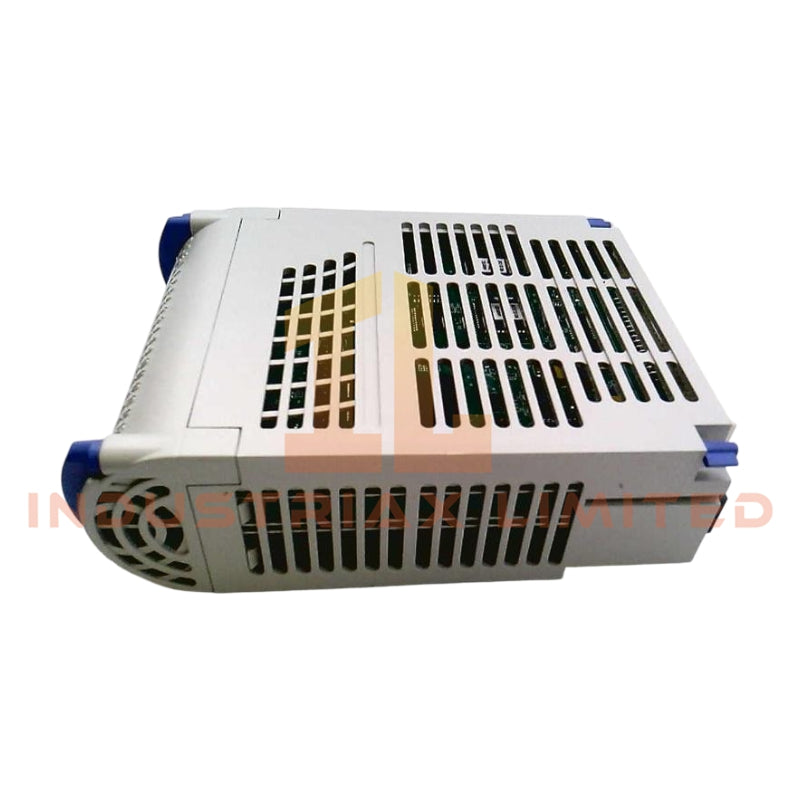

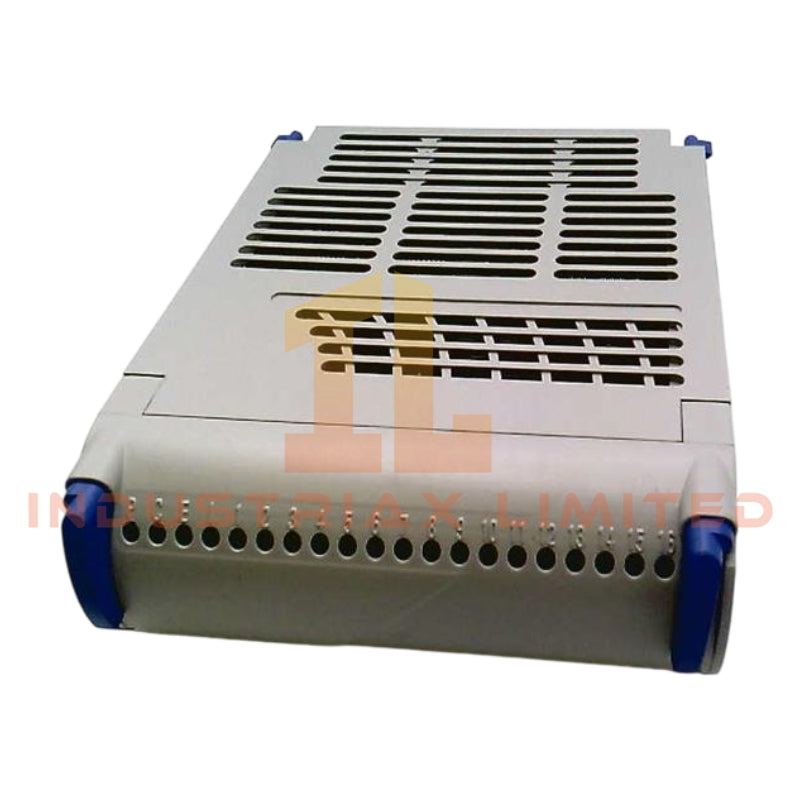

The Emerson 5X00357G04 is a high-precision analog input module engineered to convert remote analog signals—such as voltage or current—into digital data for integration with Ovation control systems. Designed for industrial environments, this module delivers reliable signal acquisition with robust electrical isolation and flexible communication capabilities via RS-485/MODBUS RTU. Its hot-swappable design allows seamless maintenance without system downtime.

Technical Specifications

Input and Signal Conversion

• Input Types: Voltage ±10V, ±5V; Current 0–20 mA, 4–20 mA

• Resolution: 16-bit analog-to-digital conversion (ADC)

• Accuracy: ±0.1% of full scale (FS)

• Input Isolation: Channel-to-system isolation 1500 VAC

Communication and Interface

• Communication Bus: RS-485 supporting MODBUS RTU

• Multi-module Daisy-Chaining: Supported for flexible system expansion

Power and Environmental

• Operating Voltage: 48 VDC (on card input contact)

• Power Consumption: <5 W

• Operating Temperature: -20°C to +60°C

Design and Features

• High-Density Signal Acquisition: Efficient processing of multiple analog inputs

• Hot-Swappable: Module replacement without system shutdown

• Industrial-Grade Reliability: Maintains signal integrity in harsh environments

Applications

• Acquisition of analog signals for process monitoring in power generation, oil & gas, and water/wastewater systems

• Integration with Ovation EMOD systems for digital control and process automation

• Real-time monitoring and control where high accuracy and channel isolation are required

FAQ

Q: What signal types are supported by 5X00357G04?
A: It supports voltage signals ±10V/±5V and current signals 0–20 mA and 4–20 mA.

Q: Is the module hot-swappable?
A: Yes, it allows replacement or maintenance without shutting down the control system.

Q: How precise is the analog-to-digital conversion?
A: The 16-bit ADC provides ±0.1% FS accuracy, suitable for high-precision applications.

Q: Can multiple modules be connected together?
A: Yes, RS-485 daisy-chaining supports multi-module setups for expanded system integration.

Q: What environments is this module designed for?
A: Designed for industrial applications, capable of operating in temperatures from -20°C to +60°C and with robust electrical isolation.

Specifications

• Brand: EMERSON

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
