Description
Product Description
Overview

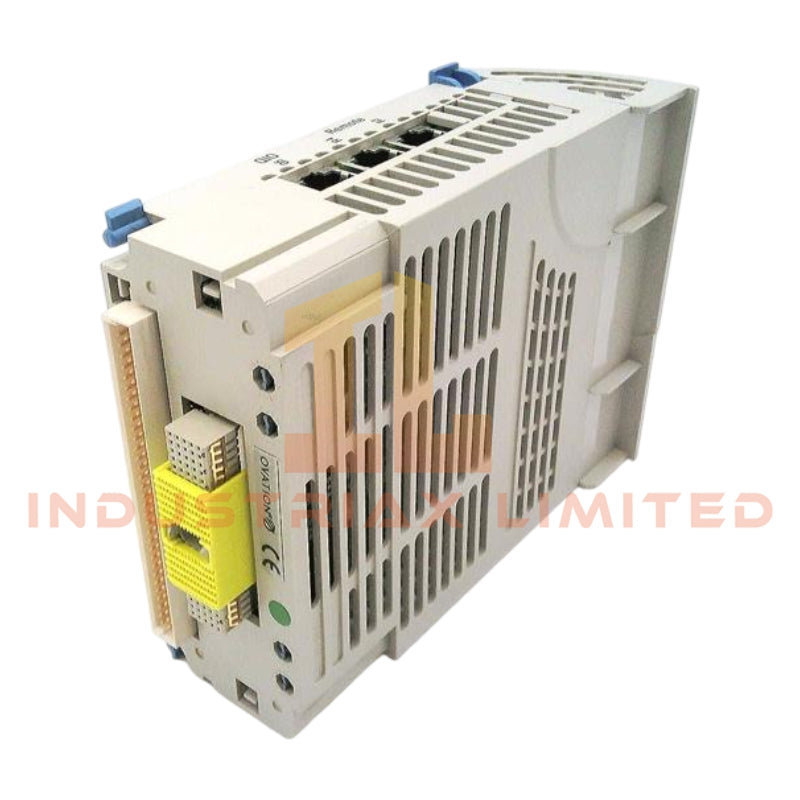

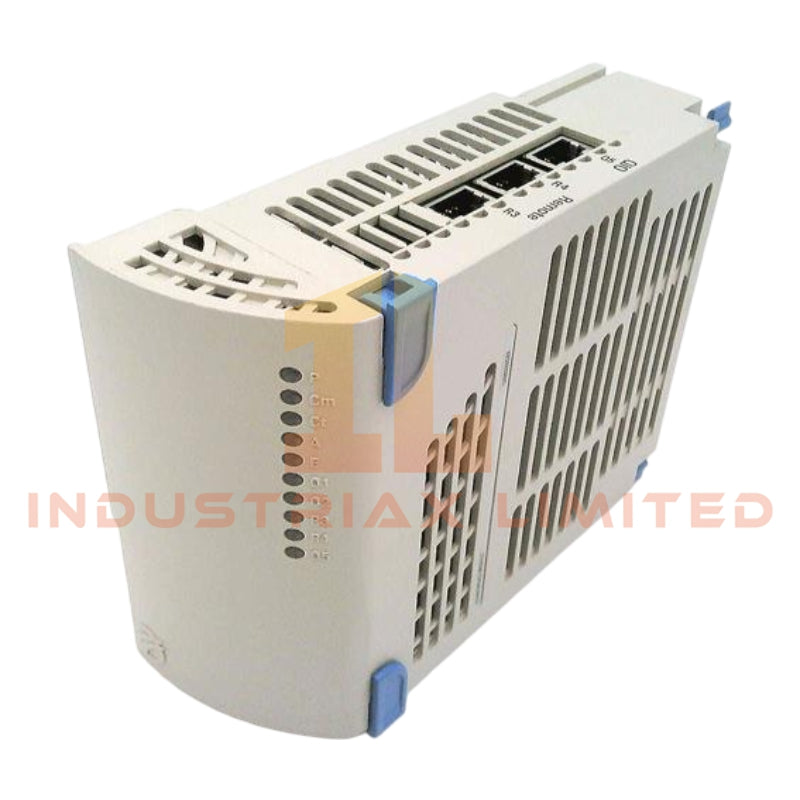

The 5X00226G02 Interface Module from Emerson’s Ovation series is engineered to provide robust digital input and output control for distributed control systems (DCS). It enables seamless communication between the central control system and field devices across critical applications such as power generation, water treatment, and process automation. Designed for reliability in demanding industrial environments, this module ensures precise, configurable signal management and fault reporting.
Technical Specifications
| Specification |
Details |
| Model |
5X00226G02 |
| Category |
PLC / Machine Control |
| Subcategory |
VDC Logic I/O Module |
| Digital Inputs |
32, configurable |
| Digital Outputs |
32, configurable |
| Input/Output Type |
Digital, fully isolated |
| Fault Detection |
Built-in, with event reporting |
| Construction |
Ruggedized for harsh environments |
| Mounting |
Standard rack mount |
| Weight |
0.75 lbs (0.34 kg) |
| Operating Temperature |
-20°C to 70°C |
| Voltage Range |
24VDC typical |
| Communication Interface |
Compatible with Ovation DCS protocols |
| Safety & Compliance |
CE, UL listed |
Applications
The 5X00226G02 is widely used in:
-
Power generation facilities for turbine and generator control
-
Water treatment plants for pump and valve automation
-
Industrial processes requiring high-reliability digital I/O
FAQ
Q: Can this module be used with non-Ovation DCS systems?
A: While optimized for Emerson Ovation, it can integrate with other systems supporting standard digital I/O protocols.
Q: What kind of fault reporting is supported?
A: The module provides configurable alarms and event logging for both input and output channels.
Q: Are there similar modules for smaller-scale applications?
A: Yes, Emerson offers Ovation I/O modules with 16 inputs/outputs or mixed analog-digital channels for compact installations.
