Description
Product Description
Overview

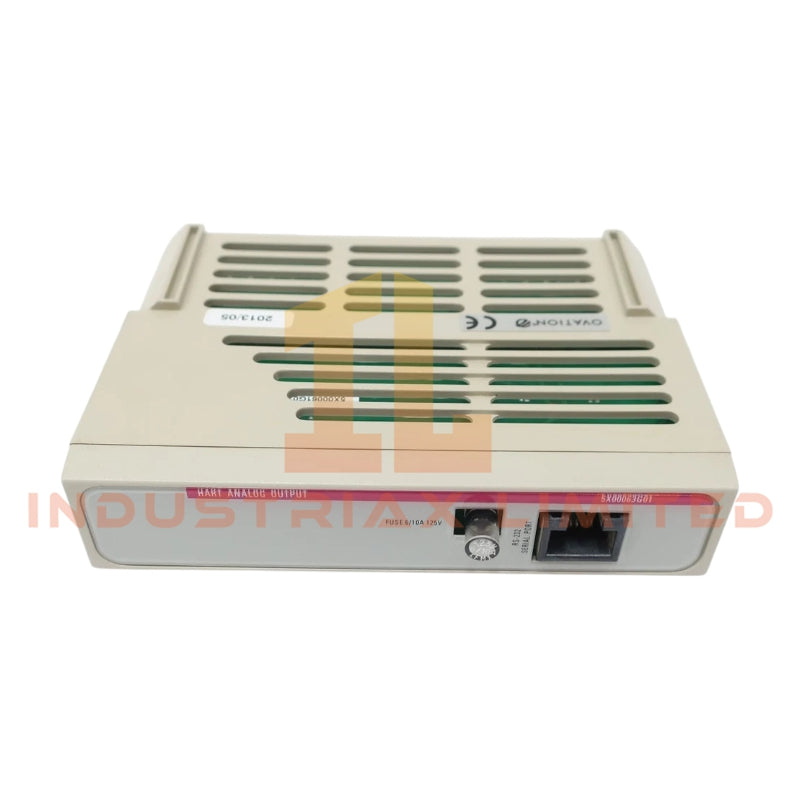

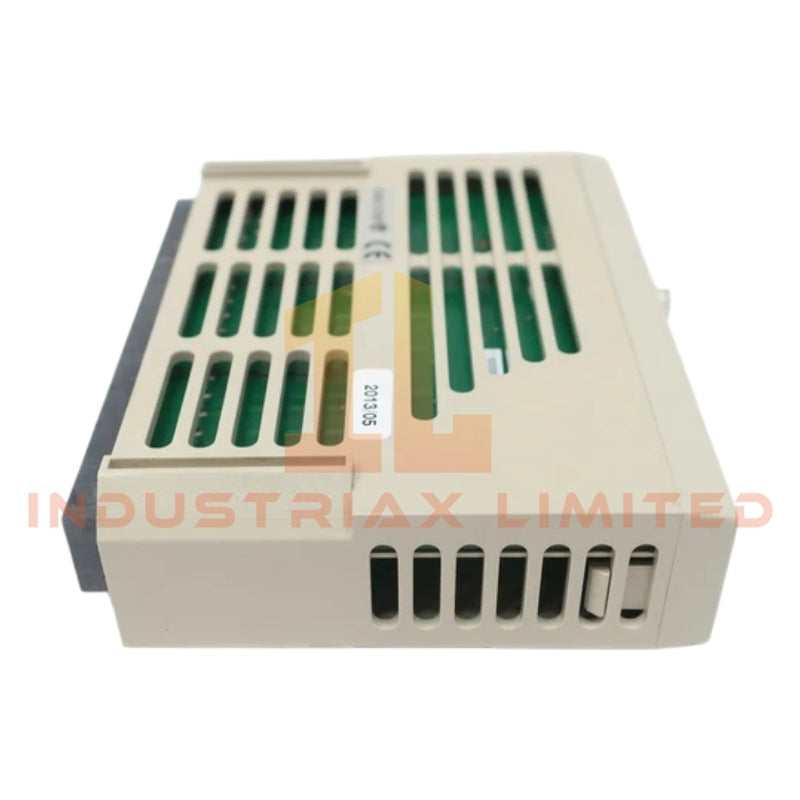

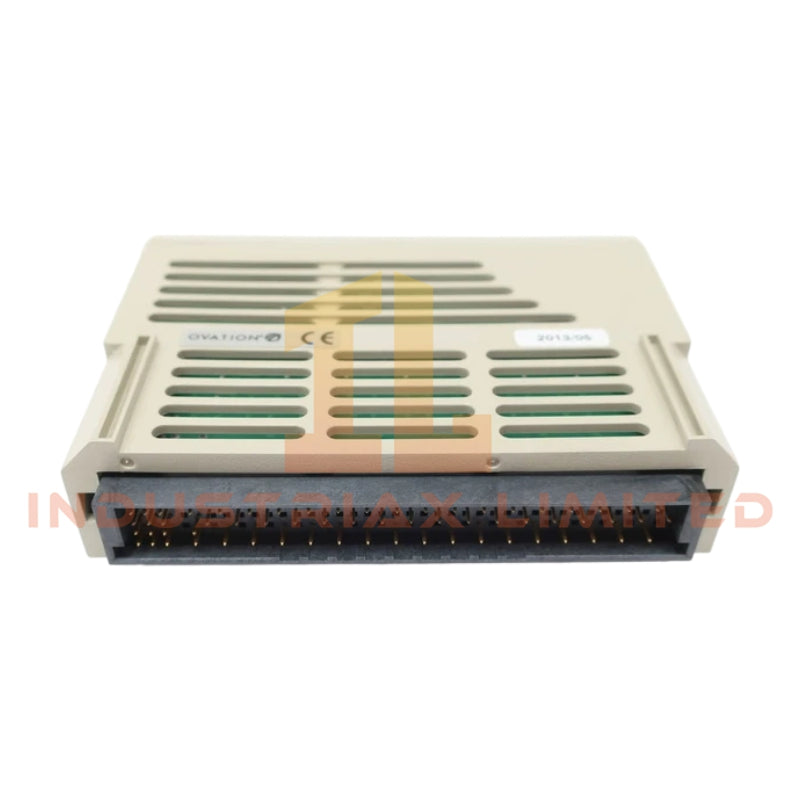

The Emerson Ovation 5X00063G01 is an 8-channel HART analog output module designed for seamless integration into Ovation control systems. It provides reliable signal transmission from the control processor to field devices, ensuring accurate 4–20 mA analog outputs. The module incorporates passive circuitry on each channel and includes a serviceable micro-fuse for protecting auxiliary power to the field-side circuits, enhancing system safety and maintainability.
Key Features
-
HART-Compatible Analog Output: Supports 4–20 mA communication for field devices with full HART protocol compatibility.
-
Eight Independent Channels: Each channel has dedicated passive circuitry for stable signal conversion.
-
User-Serviceable Fuse: Integrated fast-acting micro-fuse (0.6A, 125V) located on the Personality module protects the field-side power.
-
Plug-In Design: Simplifies installation and replacement without extensive system downtime.
-
Reliable Protection: Ensures safe operation by preventing overcurrent conditions on all output channels.
Technical Specifications
| Parameter |
Specification |
| Model Number |
5X00063G01 |
| Product Type |
HART Analog Output Module |
| Channels |
8 |
| Output Signal |
4–20 mA HART |
| Fuse Type |
Plug-in Micro-Fuse |
| Fuse Rating |
0.6A, 125V, Fast Acting |
| Channel Circuitry |
Passive on all eight channels |
| Serviceability |
User-replaceable fuse on Personality module |
| Mounting |
Plug-in interface |
| Application |
DCS analog output to field devices |
Applications
-
Distributed control systems requiring precise analog outputs
-
Control of valves, actuators, and transmitters via 4–20 mA HART signals
-
Industrial environments where channel protection and easy maintenance are critical
FAQ
Q: Can I replace the fuse without removing the module from the rack?
A: Yes, the micro-fuse is located on the Personality module and can be serviced without full module removal.
Q: Is this module compatible with non-HART analog devices?
A: While designed for HART communication, the module outputs standard 4–20 mA signals compatible with conventional analog devices.
Similar Models Comparison
-
5X00062G02: Four-channel HART output, lower channel density.
-
5X00064G03: Eight-channel output with higher voltage isolation, suitable for high-noise environments.
