Description
Product Description
Overview

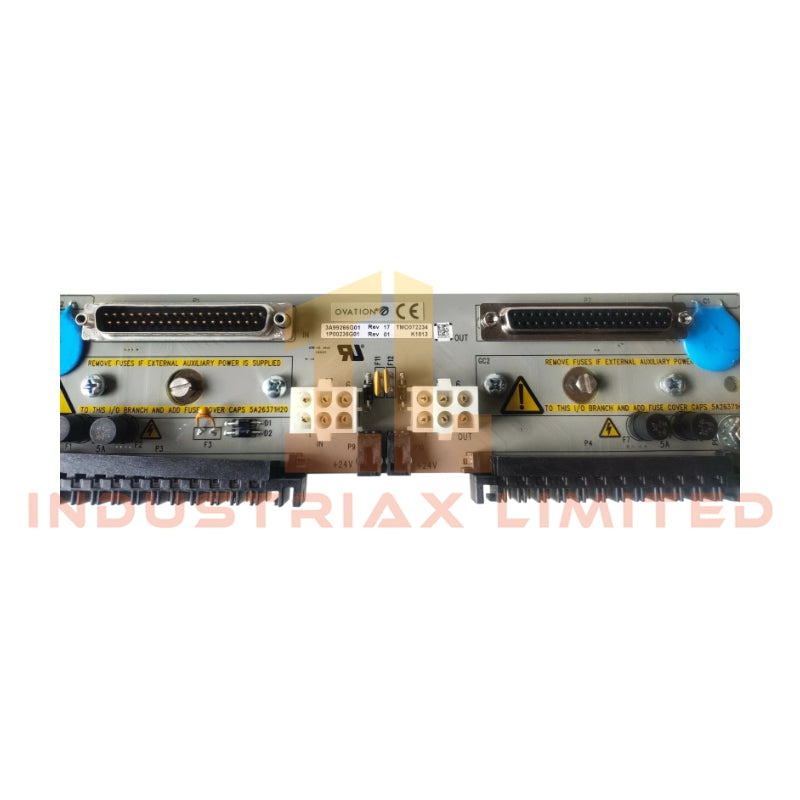

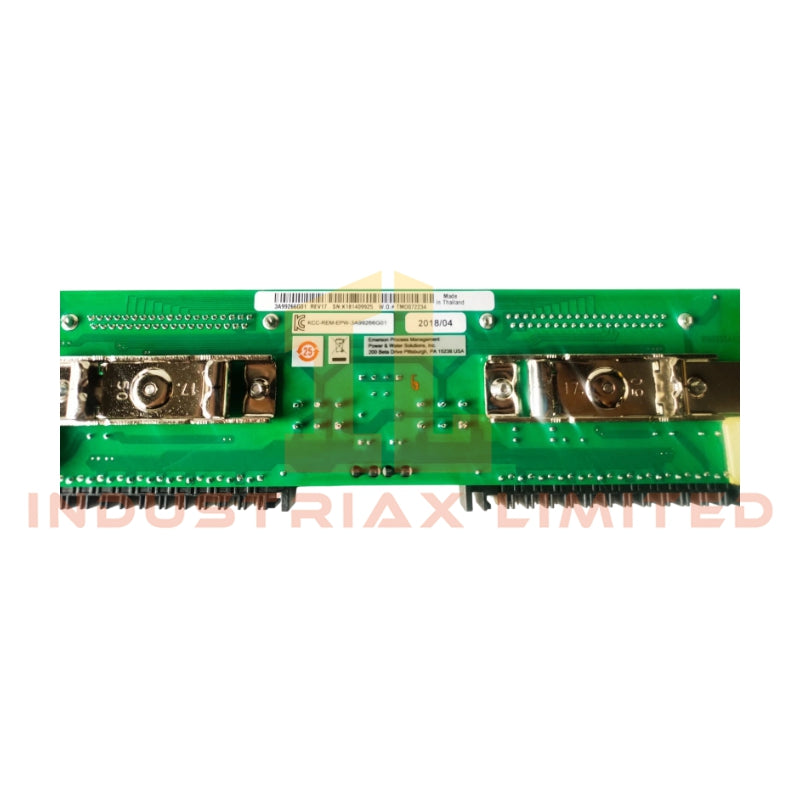

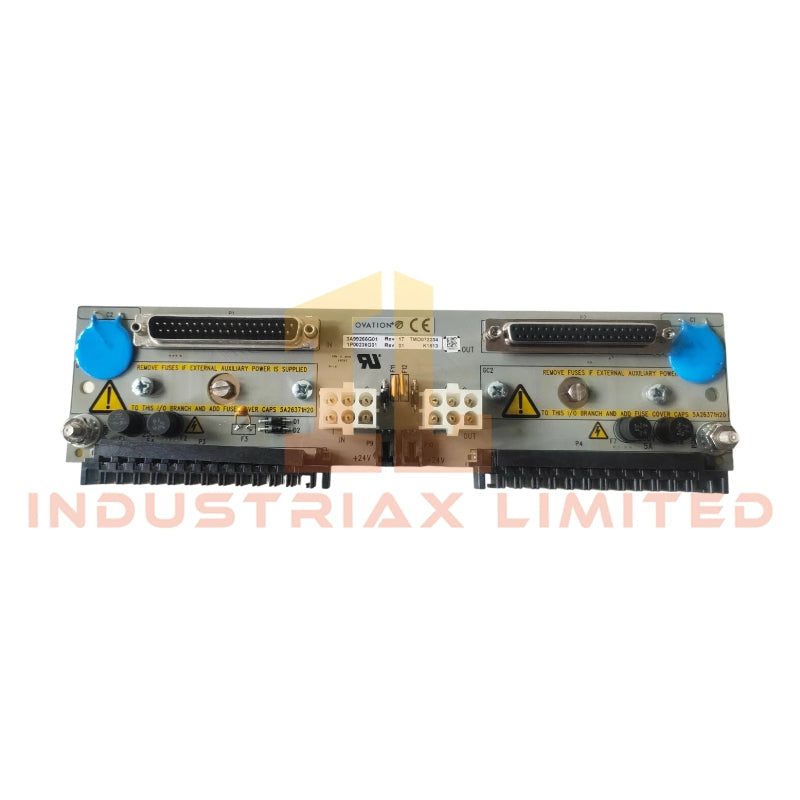

The 3A99266G01 is a high-reliability rugged PC board from Emerson designed for Ovation network integration. Engineered for demanding industrial environments, this board delivers stable operation under extreme temperatures, vibration, and shock conditions. It provides flexible connectivity for local devices and supports a wide range of I/O modules.
Technical Specifications
| Parameter |
Specification |
| Power Supply |
24 VDC |
| Power Consumption |
20 W typical |
| Operating Temperature |
-40°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Relative Humidity |
0 to 95% (non-condensing) |
| Vibration Resistance |
5 g RMS, 10–500 Hz |
| Shock Resistance |
30 g, 11 ms half-sine |
| Weight |
210 g |
| Mounting |
DIN rail |
| Module Compatibility |
Supports multiple hot-swappable I/O modules |
| Redundancy |
Supports dual power supplies for high availability |
Key Features
-
Broad compatibility with Ovation I/O modules
-
Hot-swappable modules for maintenance without downtime
-
Redundant power inputs ensure continuous operation
-
Compact DIN-rail design for simplified installation
Applications
Ideal for use in power generation, process control, and other industrial automation systems where reliable local device connectivity is required. Its rugged design allows deployment in environments with extreme temperature, vibration, or humidity conditions.
FAQ
Q: Can this board operate in high-vibration environments?
A: Yes, it is rated to withstand 5 g RMS vibration from 10–500 Hz.
Q: Is it compatible with all Ovation I/O modules?
A: It supports a wide range, but compatibility should be verified for specific module types.
Q: Does it support redundant power supplies?
A: Yes, the board is designed for dual power input for enhanced reliability.
Q: Can it be mounted in a standard control cabinet?
A: Yes, it is DIN-rail mountable for straightforward installation.
