Description
Product Description
Overview

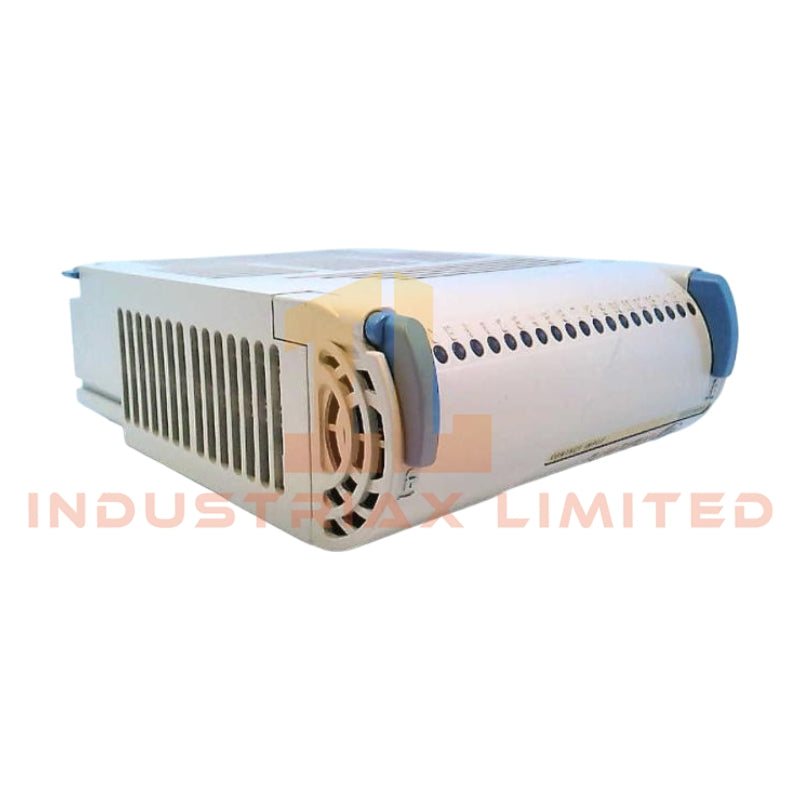

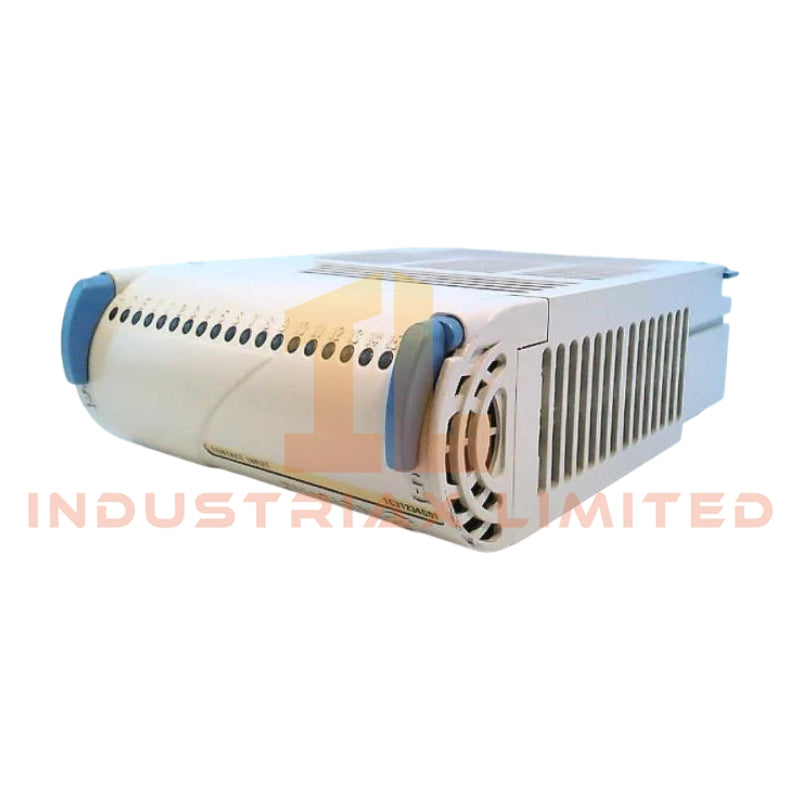

The Emerson Ovation 1C31234G01 Contact Input Module delivers precise, reliable process control for advanced industrial applications. Designed for integration with the Ovation Control System, this module leverages an Intel-based controller to provide full redundancy, ensuring high reliability and operational security in demanding environments. Its architecture supports both standard and custom control algorithms, enabling the deployment of advanced control strategies such as model predictive control to optimize plant performance and reduce process variability.
Technical Specifications
-
DST Limit: 1500 points
-
SCADA Tags: 3200 tags
-
Maximum Data Values Sent: 4000 values/second
-
Maximum Data Values Received: 500 values/second
-
Maximum Unsolicited Client Nodes: 120
-
Module Execution Rates: 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 30 s, 60 s
-
User Memory: 96 MB
-
Internal Fuse Protection: 3.0 A, non-replaceable
-
Power Dissipation: Typical 5.0 W, Maximum 7.0 W
-
Operating Temperature: -40 to 60 °C (-40 to 140 °F)
-
Storage Temperature: -40 to 85 °C (-40 to 185 °F)
-
Relative Humidity: 5% to 95%, non-condensing
-
Shock Resistance: 10 g, half-sine, 11 ms
-
Vibration Resistance: 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz
Applications
The Ovation 1C31234G01 Contact Input Module is ideal for power generation, chemical processing, and other high-demand industrial environments requiring precise input monitoring and robust control capabilities. It supports integration into both legacy and modern Ovation control architectures, allowing seamless expansion and scalability.
FAQ
Q: Can this module handle high-speed data acquisition?
A: Yes, it supports up to 4000 data values sent per second and 500 received per second, making it suitable for high-frequency process monitoring.
Q: Is the module suitable for extreme environments?
A: Yes, it operates reliably from -40 °C to 60 °C and withstands vibration and shock conditions as per industrial standards.
Q: How does this module enhance process control?
A: By enabling advanced algorithms, including model predictive control, it reduces process variability and optimizes performance across all operating conditions.
