Overview

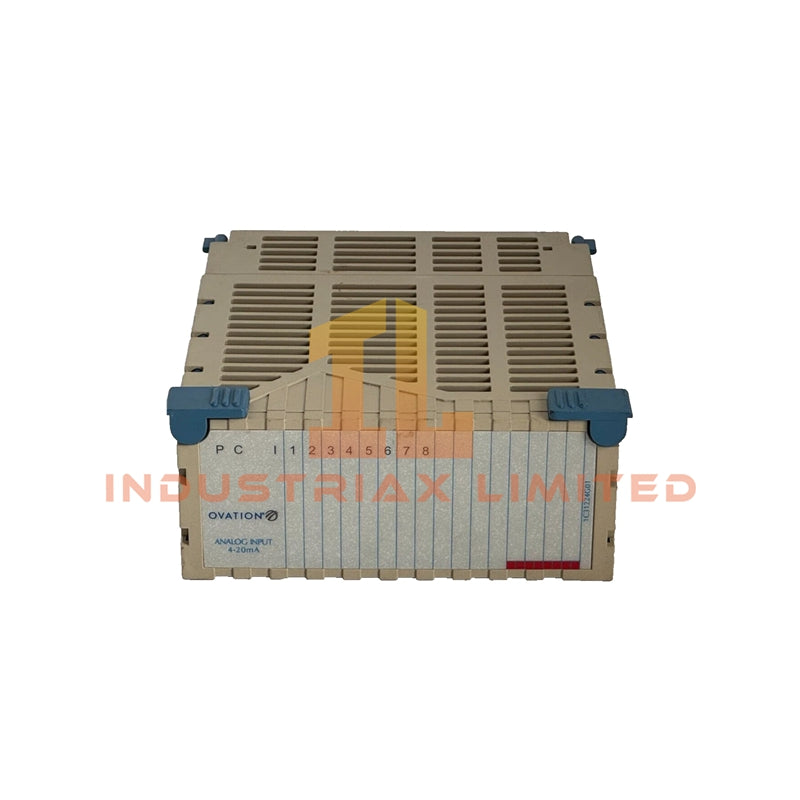

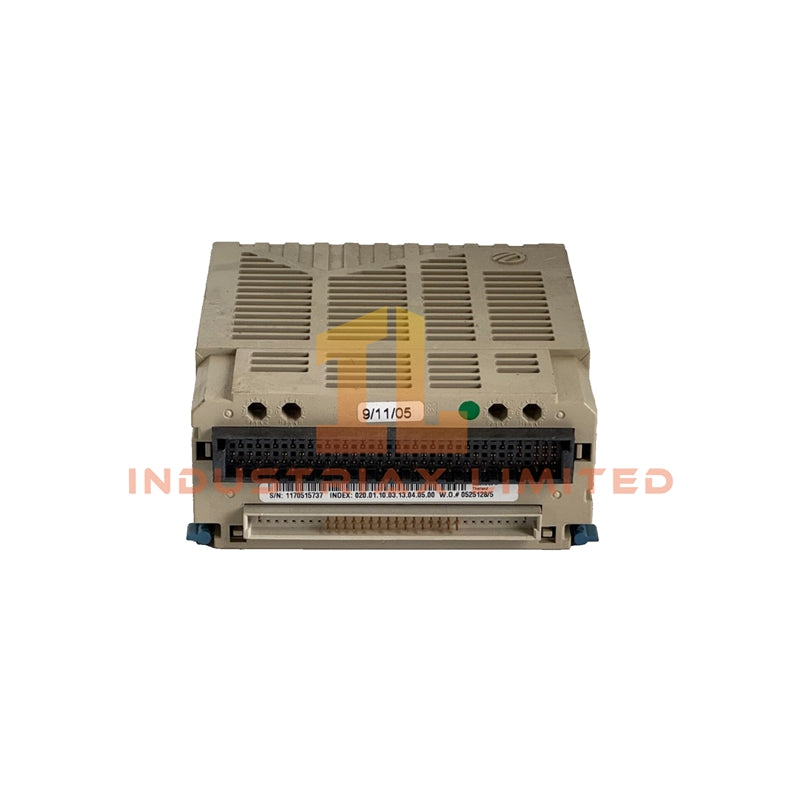

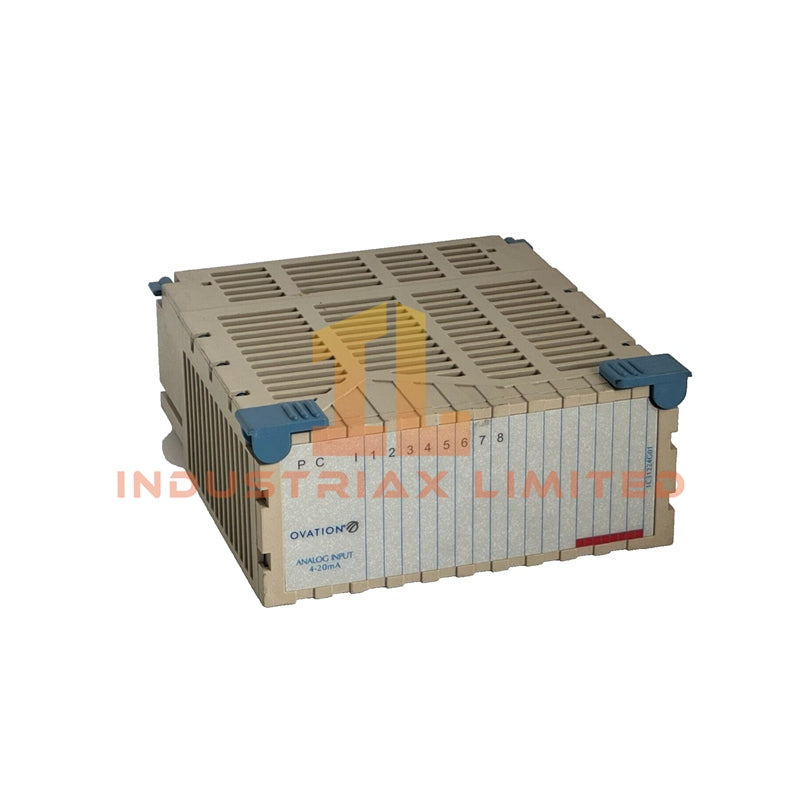

The Emerson Ovation 1C31224G01 is an 8-channel analog input module engineered for reliable process control. It captures 4–20mA current signals and converts them into high-resolution digital data, ensuring precise monitoring and maintaining the integrity of your control system. Factory-certified by Emerson, this module is designed to reduce downtime and support continuous, stable operation in demanding industrial environments.
Technical Specifications
-
Model: 1C31224G01
-
Channels: 8 isolated analog input channels
-
Input Type: 4–20mA current signals
-
Resolution: 14-bit
-
Certification: Factory-certified by Emerson
-
Purpose: Maintains control system integrity and minimizes operational downtime
-
Communication Interface: Compatible with Ovation control networks
-
Operating Temperature: -40°C to +70°C (recommended)
-
Storage Temperature: -40°C to +85°C
-
Mounting: DIN rail mountable or panel integration (depending on cabinet design)
-
Weight: Approx. 0.5 kg
-
Physical Dimensions: Width 178mm × Height 90mm × Depth 100mm
Applications
-
Continuous process monitoring and control
-
Distributed Control Systems (DCS) analog input
-
Industrial signal acquisition for 4–20mA sensors
-
Redundant and high-availability control systems
FAQ
Q: How many channels does the module support?
A: The 1C31224G01 supports 8 individually isolated analog input channels for reliable signal acquisition.
Q: What is the input signal type and resolution?
A: It supports 4–20mA current signals with 14-bit high-resolution conversion for precise data capture.
Q: Is this module factory-certified?
A: Yes, it is factory-certified by Emerson to ensure reliability and consistent performance.
Q: How does this module help reduce downtime?
A: Its robust design, isolated channels, and high signal accuracy minimize system errors and operational interruptions.
Q: What installation options are available?
A: The module can be mounted on standard DIN rails or integrated into control panels, depending on the system layout.
