Description
Product Description
Overview

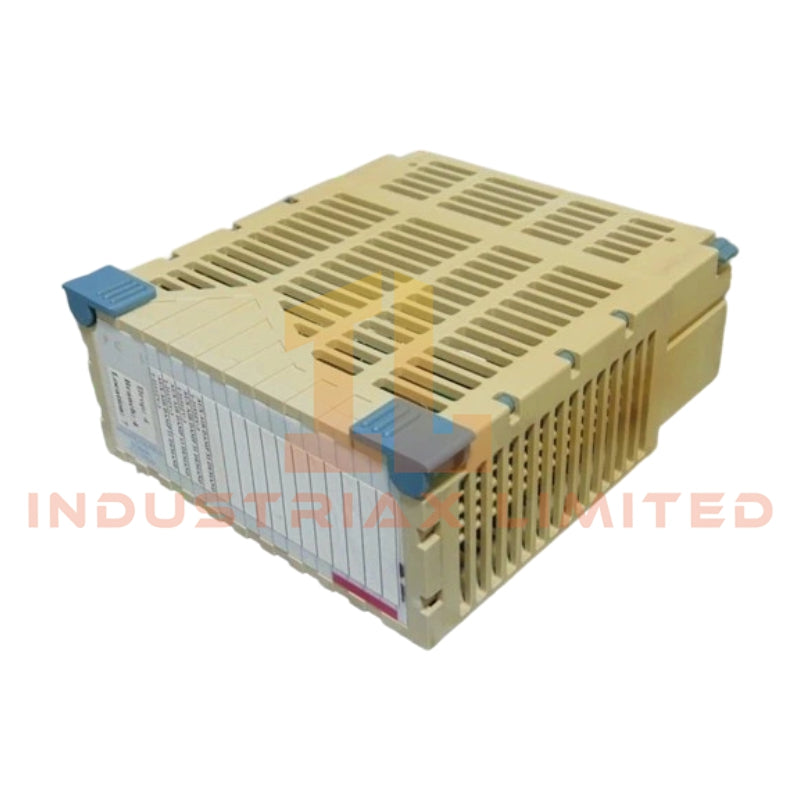

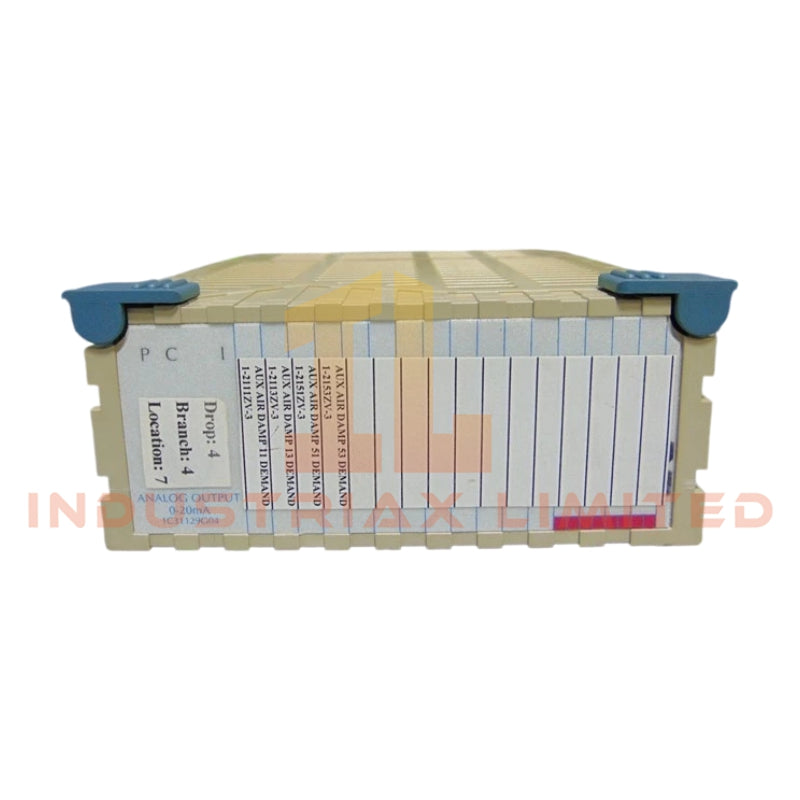

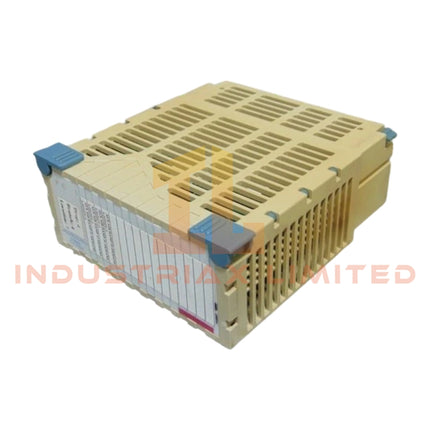

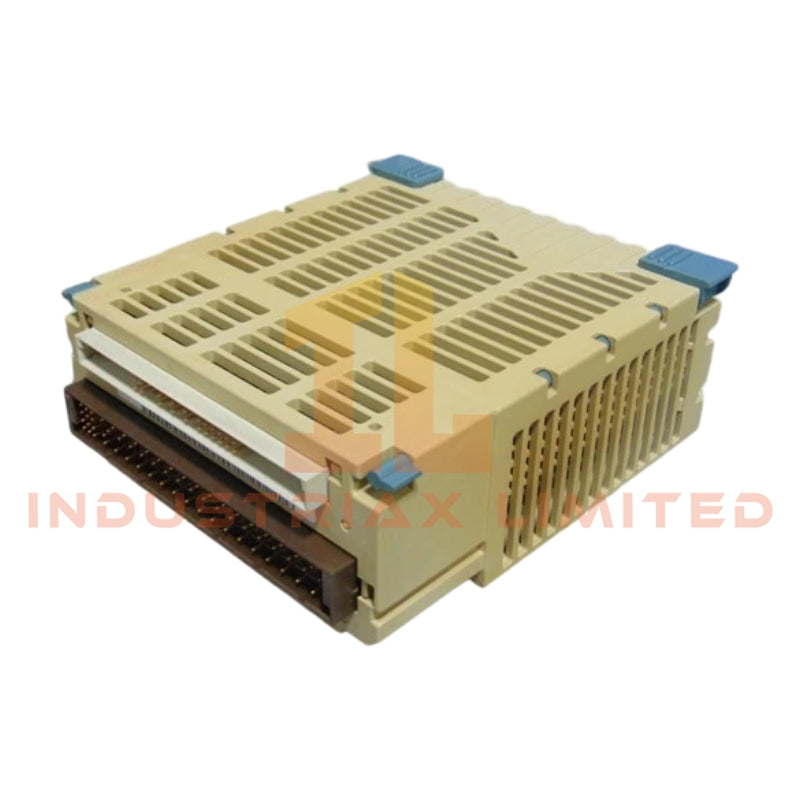

The Emerson Ovation 1C31129G04 is a precision analog output module designed for seamless integration with the Ovation Distributed Control System (DCS). It delivers configurable current output signals to control valves, actuators, and other analog devices, supporting either 0–20 mA or 4–20 mA ranges without embedded diagnostics.
Key Features
-
Supports configurable analog output from 0–20 mA or 4–20 mA
-
Compatible with standard Ovation DCS output channels
-
Provides stable, low-noise signal transmission
-
Flexible configuration via I/O Builder software
-
Designed for continuous, reliable operation in industrial environments
Technical Specifications
| Parameter |
Specification |
| Module Type |
Analog Output |
| Channels |
Configurable per system requirements |
| Output Range |
0–20 mA default, 4–20 mA selectable in I/O Builder |
| Diagnostics |
Not included |
| Resolution |
12-bit or system-defined |
| Compatibility |
Emerson Ovation DCS |
| Load Resistance |
Typically up to 600 Ω at 20 mA |
| Response Time |
<10 ms typical |
| Operating Temperature |
0°C to 60°C |
| Mounting |
Rack-mounted |
Applications
-
Controlling analog devices such as valves, pumps, and actuators
-
Integration into Ovation DCS for process automation loops
-
Signal conversion for control and monitoring systems in power plants, chemical processing, and water treatment
FAQ
Q: Can I switch between 0–20 mA and 4–20 mA outputs?
A: Yes, the output range can be selected during configuration in the Ovation I/O Builder.
Q: Does this module provide diagnostic feedback for output signals?
A: No, the 1C31129G04 operates without embedded diagnostics. Users must implement external monitoring if diagnostics are required.
Q: Are there similar modules with built-in diagnostics?
A: Emerson offers other analog output modules in the Ovation series with diagnostic capabilities, suitable for applications requiring enhanced signal monitoring.
