Description
Product Description
Overview

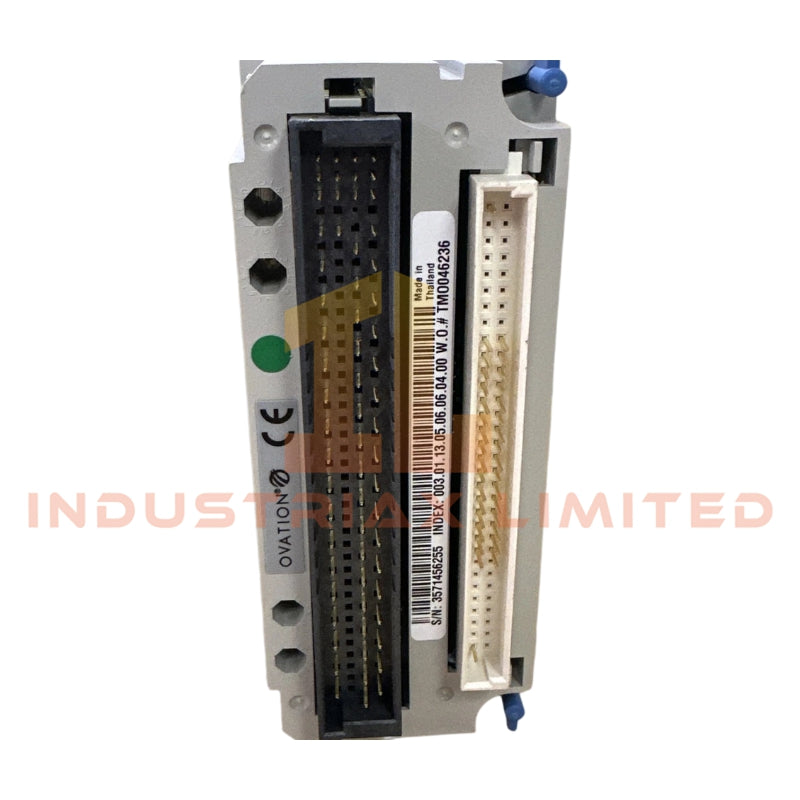

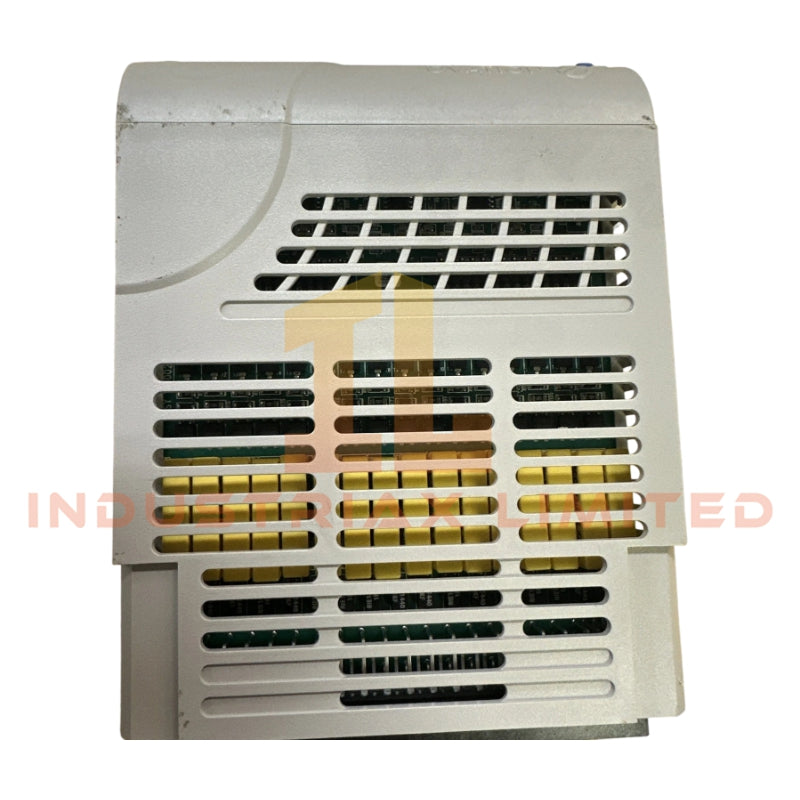

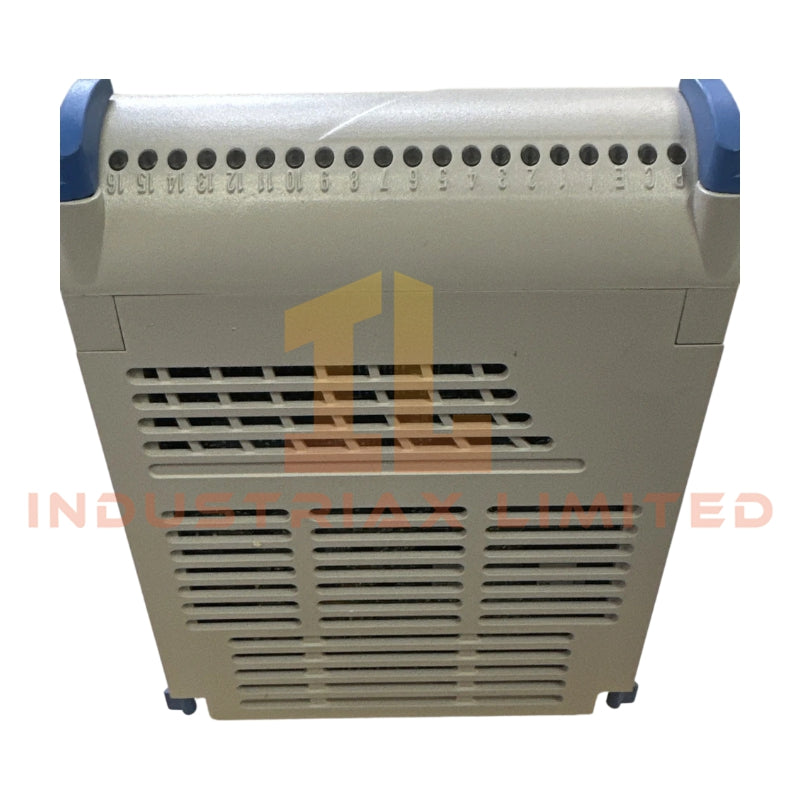

The Emerson Ovation 1C31107G01 is a high-performance digital input module engineered for integration with the Ovation Distributed Control System (DCS). It provides reliable acquisition of discrete input signals from a wide range of field devices, supporting both process monitoring and automation control in industrial environments.
Key Features
-
Supports up to 16 independent digital input channels
-
Compatible with 24 VAC, 24 VDC, 48 VDC signals
-
Operates in single-ended or differential configurations for flexible installation
-
High noise immunity and robust signal detection
-
Designed for continuous industrial operation with minimal maintenance
Technical Specifications
| Parameter |
Specification |
| Module Type |
Digital Input |
| Channels |
16 |
| Input Voltage |
24/48 VAC/DC |
| Input Configuration |
Single-ended / Differential |
| Signal Type |
Discrete (ON/OFF) |
| Compatibility |
Emerson Ovation DCS |
| Isolation |
Channel-to-channel isolation supported |
| Operating Temperature |
0°C to 60°C |
| Mounting |
Rack-mounted |
Applications
-
Process monitoring in power plants, refineries, and water treatment facilities
-
Integration with Ovation DCS for automated control loops
-
Monitoring and diagnostics of field equipment such as sensors, switches, and relays
FAQ
Q: Can this module accept both AC and DC signals simultaneously?
A: The module is configurable for either 24/48 VAC or 24/48 VDC inputs, but each channel must be wired consistently according to the selected mode.
Q: What is the difference between single-ended and differential inputs?
A: Single-ended inputs measure voltage relative to a common ground, while differential inputs measure the voltage difference between two terminals, providing higher noise immunity for long-distance signal transmission.
Q: Are similar modules available for higher channel counts?
A: Emerson offers extended digital input modules in the Ovation series with up to 32 channels, suitable for larger systems requiring dense I/O.
