Product Description

Overview

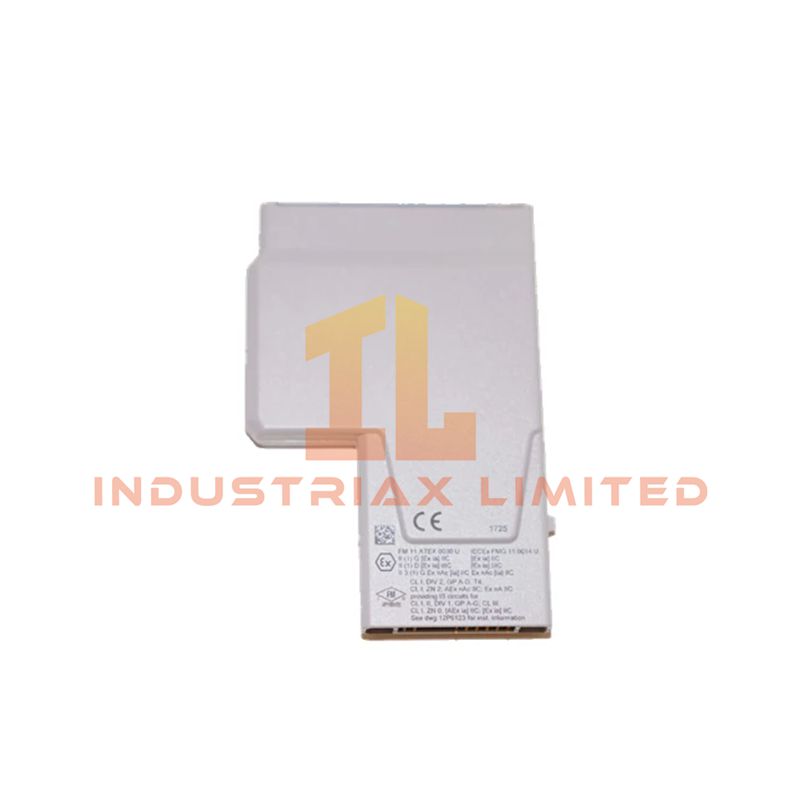

The KL3101X1-BA1 from Emerson is an 8-channel discrete input card designed for DeltaV S-series systems. It provides robust monitoring of field devices such as limit switches, pushbuttons, and relay contacts by converting physical contact closures into digital signals for the controller. Engineered for hazardous and standard industrial environments, it delivers reliable performance with minimal maintenance.

Core Functions

Discrete Signal Detection

• Monitors the open or closed state of 24V DC field circuits

• Provides internal sensing voltage for dry contact inputs, eliminating the need for external power

Noise Filtering and Debouncing

• Configurable digital filtering ensures accurate readings without false triggering

• Maintains signal integrity in electrically noisy environments

Rapid Response

• Optimized for low-latency input detection, essential for safety interlocks and high-speed automation sequences

Safety and Compliance

• Certified for hazardous areas: ATEX, IECEx, FM, CSA, and CL1 DIV2 standards

• Designed for energy-limited applications to meet safety integrity levels

• Resistant to shock, vibration, and airborne contaminants per ISA-S71.04 Class G3

S-series Reliability Features

• Hot-swappable for replacement without system downtime

• Automatic identification by DeltaV controller upon insertion

• Continuous self-diagnostics to monitor internal health and functionality

---

Technical Specifications

Feature	Specification
Model	KL3101X1-BA1
Input Channels	8 Discrete Inputs
Input Type	24V DC, Dry Contact
ON Detection Level	> 2.5 mA typical
OFF Detection Level	< 1.0 mA typical
Isolation	Galvanic isolation between field and controller
Power Requirements	CHARM Bus: +6.3 VDC @ 0 mA; Field Circuit: +24 VDC @ 60 mA
Operating Temperature	-40°C to +70°C
Shock & Vibration	10 g half-sine, 11 ms; 1 mm p-p 2–13.2 Hz, 0.7 g 13.2–150 Hz
Humidity	5–95% Non-condensing
Terminal Block Key	A1
Mounting	DeltaV S-series horizontal I/O carrier
Maintenance	No user-serviceable parts; calibration not required

---

Applications

This module is ideal for monitoring discrete field signals in chemical, oil & gas, power generation, and manufacturing plants. It supports sequence-of-events (SOE) recording when paired with compatible DeltaV controllers.

---

FAQ

Q: Can this card be installed while the system is powered?
A: No, it must be inserted or removed only when system power is off to ensure safety.

Q: Does the card require calibration?
A: No calibration is necessary; the module is factory configured and maintenance-free.

Q: What type of switches are supported?
A: Designed for dry contact switches; internal 24V DC sensing voltage powers the field device.

Q: Is it compatible with older M-series hardware?
A: No, this module is optimized for S-series carriers only.

Specifications

• Brand: EMERSON

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
