Product Description
Overview

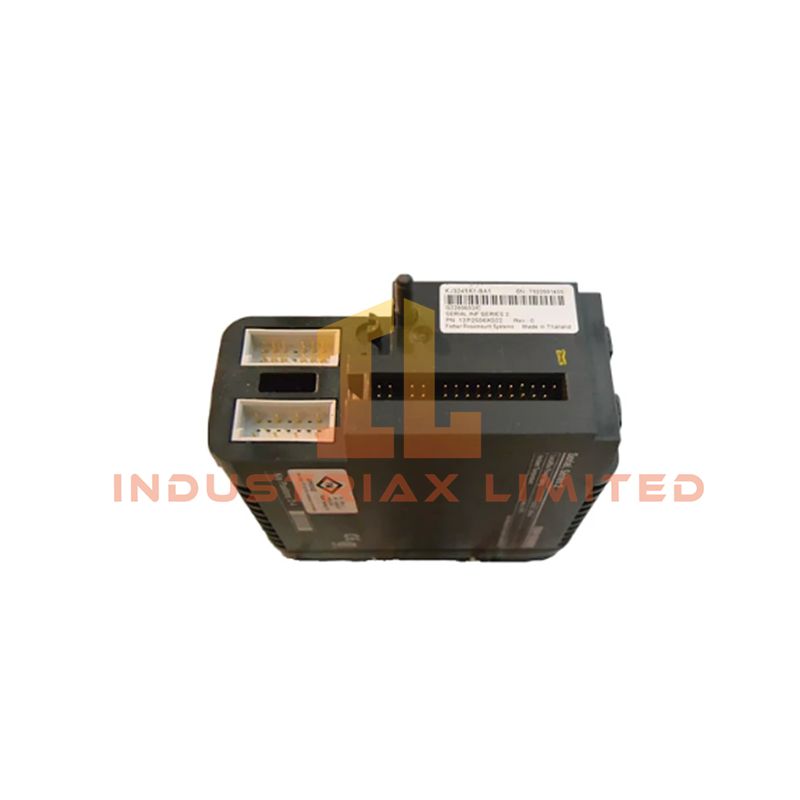

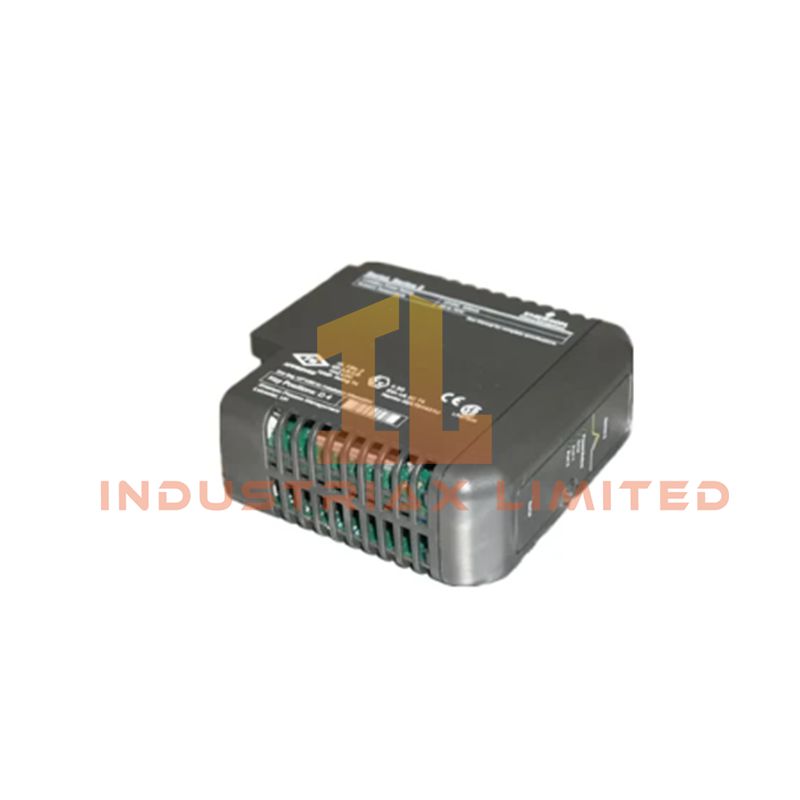

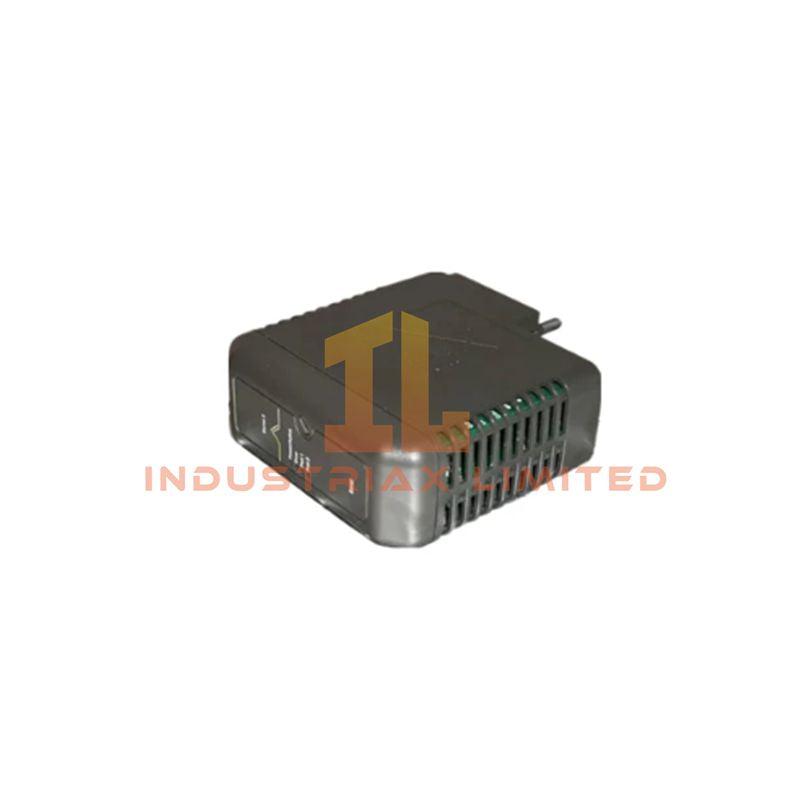

The Emerson KJ3241X1-BA1 serves as a high-performance S-series I/O interface carrier within the DeltaV Distributed Control System (DCS). This module functions as the central hub for S-series I/O cards, providing both power and communication pathways to ensure seamless interaction with DeltaV controllers. It is engineered for high-density installations, offering a compact, reliable solution for modern industrial control cabinets.
Key Features and Advantages
Hot-Swappable Architecture
The carrier allows insertion or removal of I/O modules without powering down the system, minimizing downtime and supporting continuous operation in critical processes.
Rugged Industrial Design
-
G3 Conformal Coating: Protects internal circuitry from moisture, dust, and corrosive chemicals.
-
Wide Temperature Range: Operates reliably from -40°C to +70°C, supporting harsh industrial environments.
-
Shock and Vibration Resistance: Withstands 10g shock and vibration ranges from 2–150 Hz, ensuring stable performance.
Power and Bus Support
-
Redundant Power Inputs: Maintains operation even if one power source fails, critical for safety-sensitive applications.
-
Local Bus Power: Provides 12 VDC at 300 mA to connected I/O modules, ensuring stable operation.
-
Communication Interface: S-series Railbus connectivity facilitates fast, reliable data transfer between modules and the DeltaV controller.
Compact and High-Density Integration
Supports multiple S-series modules within a single footprint, reducing overall cabinet space while maximizing I/O density.
Plug-and-Play Recognition
Once modules are seated, the DeltaV system automatically identifies them, streamlining configuration and commissioning processes.
Technical Specifications
| Feature |
Specification |
| Model Number |
KJ3241X1-BA1 |
| Module Type |
S-Series I/O Interface Carrier |
| Local Bus Power |
12 VDC at 300 mA |
| Environmental Rating |
ISA-S71.04 Class G3, IP20 |
| Operating Temperature |
-40°C to +70°C (-40°F to 158°F) |
| Shock |
10g, ½ sinewave, 11ms |
| Vibration |
1mm peak-to-peak 2–13.2Hz; 0.7g 13.2–150Hz |
| Relative Humidity |
5–95% non-condensing |
| Mounting |
35mm DIN Rail |
| Hazardous Area Compliance |
ATEX Zone 2, Class 1 Div 2 |
| Bus Interface |
S-Series Railbus |
Application Notes
The KJ3241X1-BA1 is ideal for dense control cabinets requiring reliable communication between multiple S-series I/O modules and DeltaV controllers. Suitable for chemical, petrochemical, and power generation industries, it ensures continuous operation even in harsh environments.
FAQ
Q: Can I remove this carrier while the system is running?
A: Only if the area is confirmed non-hazardous and modules are removed one at a time.
Q: How do I ensure compatibility with I/O modules?
A: Use the rotary keying system on the terminal blocks to match each module.
Q: Does it require calibration?
A: No calibration is needed, and it contains no user-serviceable parts.
Q: Is this compatible with M-series hardware?
A: No, this carrier is specifically for S-series I/O modules.
