Description
Overview

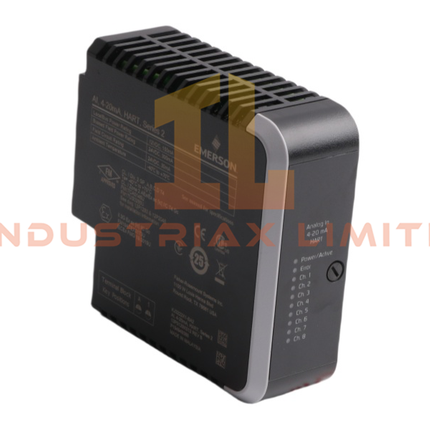

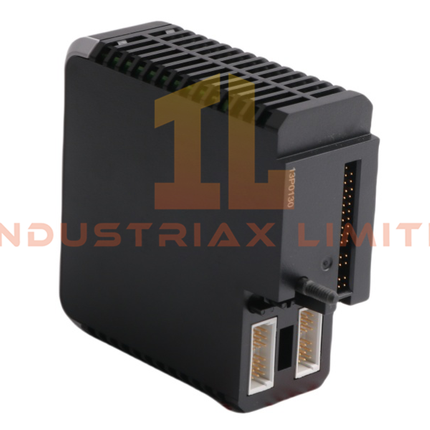

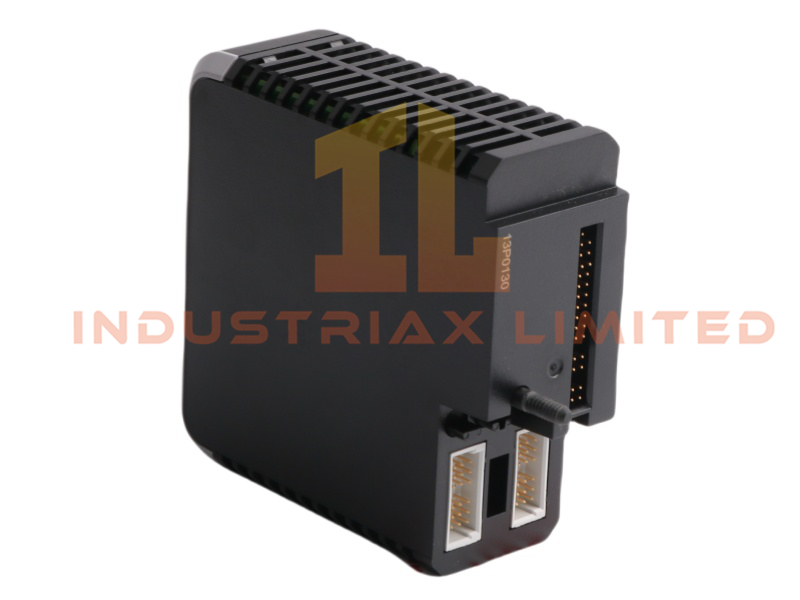

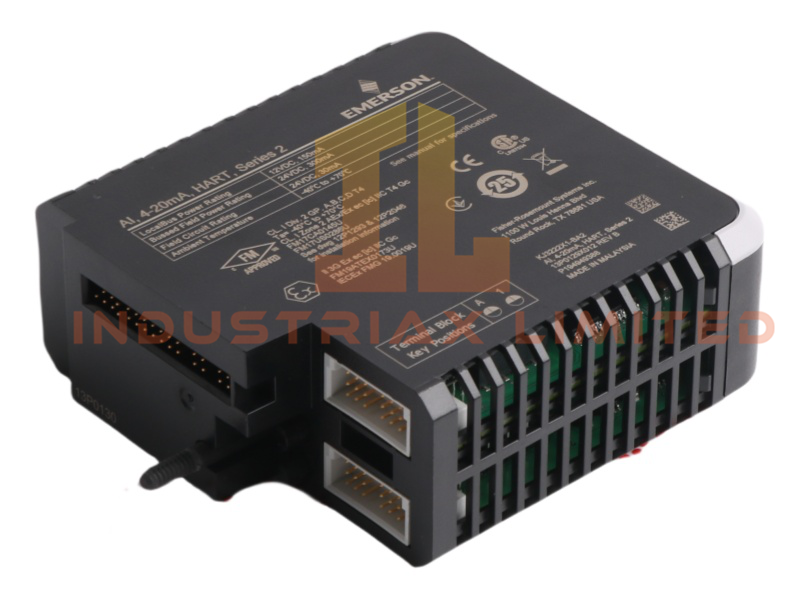

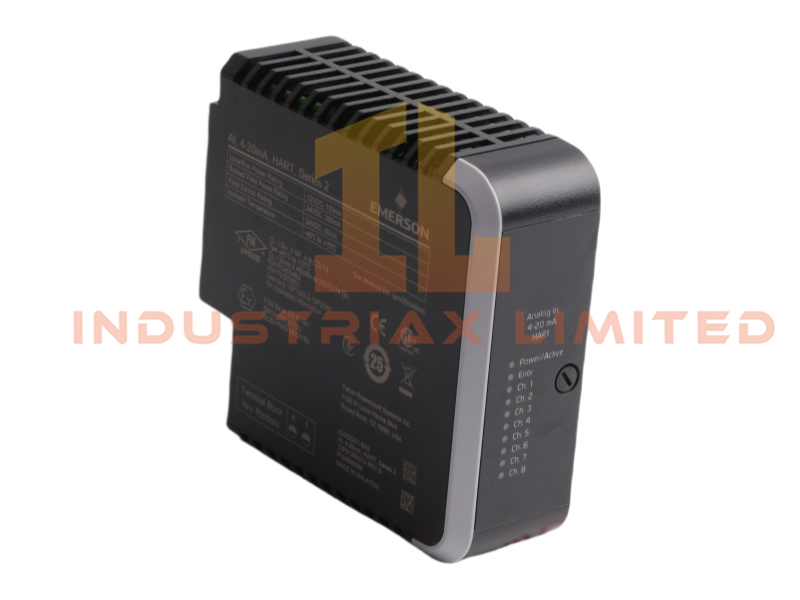

The KJ3222X1‑BA2 13P0129X012 traditional I/O module is part of Emerson’s DeltaV SIS safety system, designed to provide reliable signal processing and robust field connectivity in safety‑critical process environments. Its redundant architecture, wide operating temperature range, and industrial‑grade construction make it suitable for continuous operation in refineries, chemical plants, and power generation facilities.
Functional Characteristics
The KJ3222X1‑BA2 13P0129X012 supports dual‑card redundancy with automatic switchover, ensuring uninterrupted operation during hardware faults. The module supplies regulated power to both the local bus and field circuits, enabling stable communication with connected sensors and actuators. Its design complies with stringent environmental standards, offering resistance to contaminants, humidity, shock, and vibration.
Integrated diagnostics provide real‑time status monitoring for both primary and secondary modules. All redundancy events and hardware alerts are logged within the DeltaV Event Chronicle, supporting maintenance planning and system troubleshooting.
Technical Specifications
| Parameter |
Specification |
| Model |
KJ3222X1‑BA2 13P0129X012 |
| Brand |
Emerson |
| Product Type |
Traditional I/O Module |
| Product Series |
DeltaV SIS |
| Condition |
Brand New |
| Weight |
0.4 kg |
| Dimensions |
4.3 × 12.5 × 18.5 cm |
| Origin |
USA |
| Minimum Order Quantity |
1 |
| HS Code |
8537101190 |
| System Integration |
DCS |
| Operating Status |
Active |
| Local Bus Power |
12 VDC, 150 mA |
| Field Power |
24 VDC, 300 mA |
| Field Circuit Rating |
30 mA per channel |
| Temperature Range |
−40°C to +70°C |
| Humidity Tolerance |
Up to 95% non‑condensing |
| Shock Resistance |
10 g |
| Vibration Resistance |
1 mm p‑p |
| Environmental Standard |
ISA‑S71.04 G3 |
| Diagnostics |
Hardware alerts, redundancy event logging |
Application Scenarios
-
Safety‑instrumented systems in oil and gas processing
-
Power plant turbine and boiler control
-
Chemical production units requiring high‑availability I/O
-
Redundant field signal acquisition for mission‑critical loops
-
Harsh‑environment installations with extreme temperature and vibration
FAQ
Q: Does the KJ3222X1‑BA2 13P0129X012 require special configuration for redundancy? A: No. Redundancy is automatically managed by the DeltaV SIS system.
Q: What type of field devices can this module support? A: It supports 24 VDC field circuits, suitable for a wide range of sensors and actuators.
Q: Is this module suitable for high‑temperature environments? A: Yes. It operates reliably from −40°C to +70°C.
