Description
Product Description
Overview

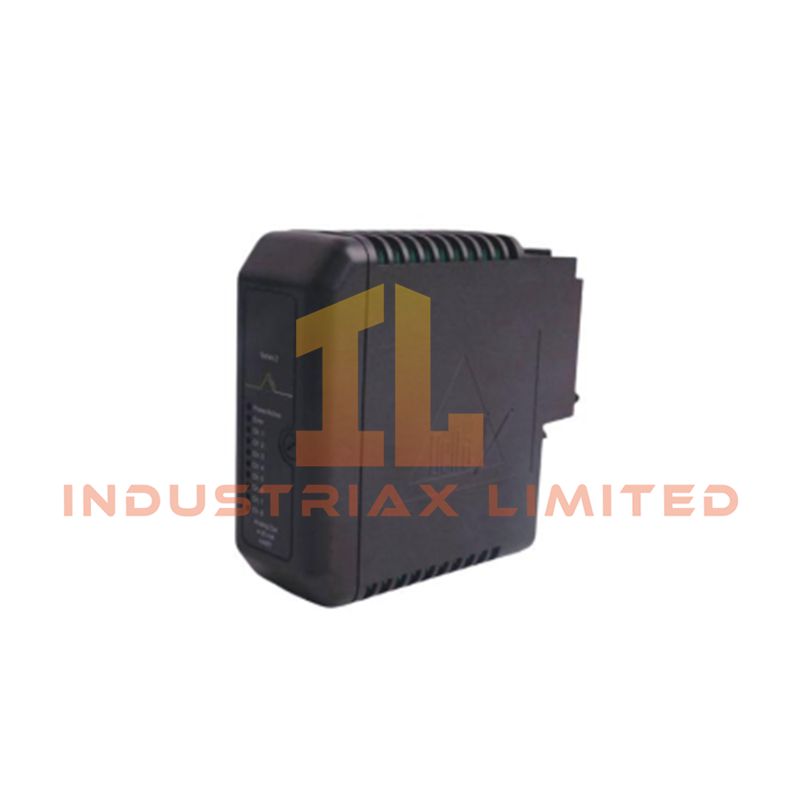

The KJ3101X1-BB1 (part number 12P2091X122) is a Series 2 Redundant 8-Channel Analog Input (AI) module for the Emerson DeltaV™ Distributed Control System. It converts 4–20 mA analog signals from field transmitters into high-resolution digital data for process monitoring. This version supports HART protocol pass-through, allowing advanced diagnostic and secondary variable access from smart instruments.
Key Features
Advanced HART Integration
-
Each channel includes an integrated HART modem, enabling communication with smart field devices without external multiplexing.
-
Seamless connection with AMS Device Manager allows remote configuration, calibration, and asset management.
High-Availability Redundant Design
-
Redundant pairing ensures continuous operation. If the active card fails internal self-tests, the standby card automatically assumes control without signal interruption.
-
Redundant backplane paths provide two independent communication routes to the controller, enhancing reliability for critical process measurements.
Precision and Signal Protection
-
High-resolution 16-bit analog-to-digital converters deliver precise readings, even for subtle changes in temperature, pressure, or flow.
-
Electrical isolation protects the system backplane from field-side surges or noise.
-
Configurable software filtering smooths out transient or noisy signals for consistent process monitoring.
Rugged, Serviceable Construction
-
Hot-swappable design allows replacement under power, minimizing downtime.
-
Front-panel LED indicators provide real-time status feedback for run state, errors, and redundancy condition.
Technical Specifications
| Feature |
Specification |
| Model |
KJ3101X1-BB1 / 12P2091X122 |
| Channel Count |
8 Analog Input Channels |
| Signal Type |
4–20 mA DC |
| Protocol Support |
Analog (4–20 mA) + HART Digital |
| Resolution |
16-bit |
| Input Power |
Supplied via DeltaV backplane |
| Operating Temperature |
-40°C to +70°C |
| Environmental Rating |
ISA-S71.04 Class G3 (Conformal Coating) |
| Redundancy |
Supports redundant pair operation |
| Hot-Swappable |
Yes |
| LED Indicators |
Run, Error, Active/Redundancy |
Operational Overview
The KJ3101X1-BB1 is ideal for high-reliability analog monitoring in DeltaV systems. Its redundancy and HART pass-through capabilities support predictive maintenance, allowing operators to detect sensor issues before they trigger process trips.
Maintenance Tips
-
Ensure cards are installed on a Redundant 8-Channel Terminal Block to leverage full redundancy.
-
Use DeltaV Diagnostics Explorer to verify the source of an "Error" LED indication, distinguishing between internal card faults or field wiring issues.
Applications
Suitable for monitoring temperature, pressure, flow, and other analog variables in process industries requiring high availability and diagnostic visibility.
FAQ
Q: Can this module communicate with multiple HART devices on the same loop?
A: Yes, each channel independently supports HART pass-through for smart instrument diagnostics.
Q: Is the KJ3101X1-BB1 compatible with standard DeltaV controllers?
A: Yes, it integrates seamlessly into DeltaV Series 2 systems and supports redundant operation.
Similar Models Comparison
Compared to non-redundant KJ3101X1 modules, the BB1 version provides full redundancy, HART diagnostics, and hot-swappable capabilities for critical process applications.
