Description
Overview

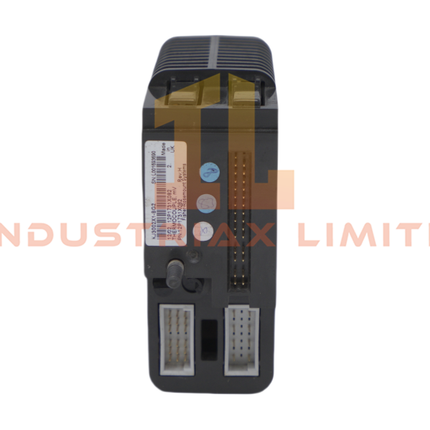

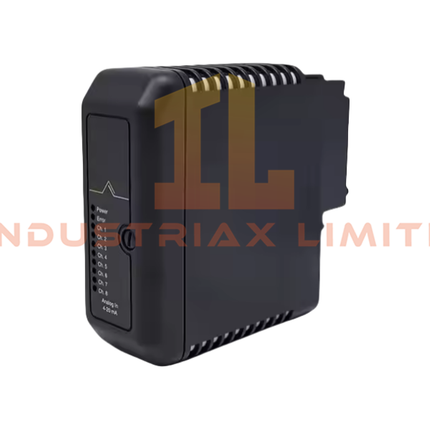

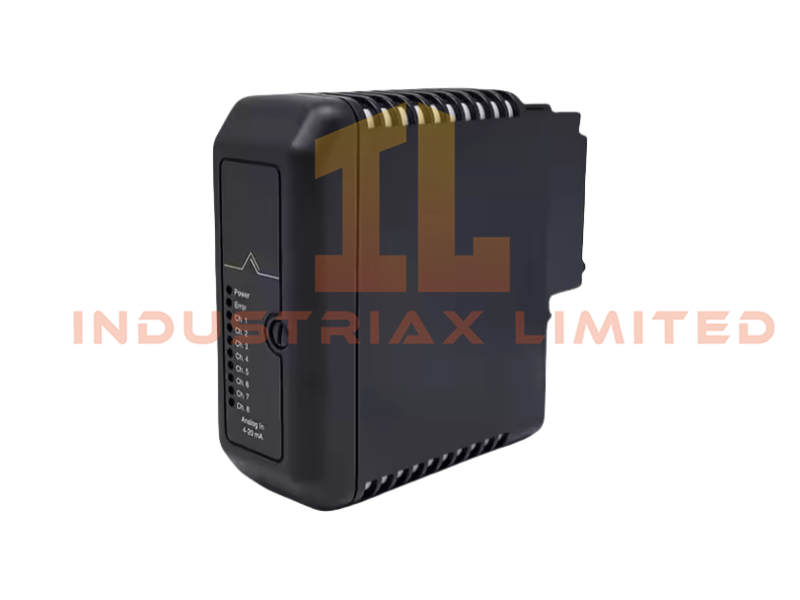

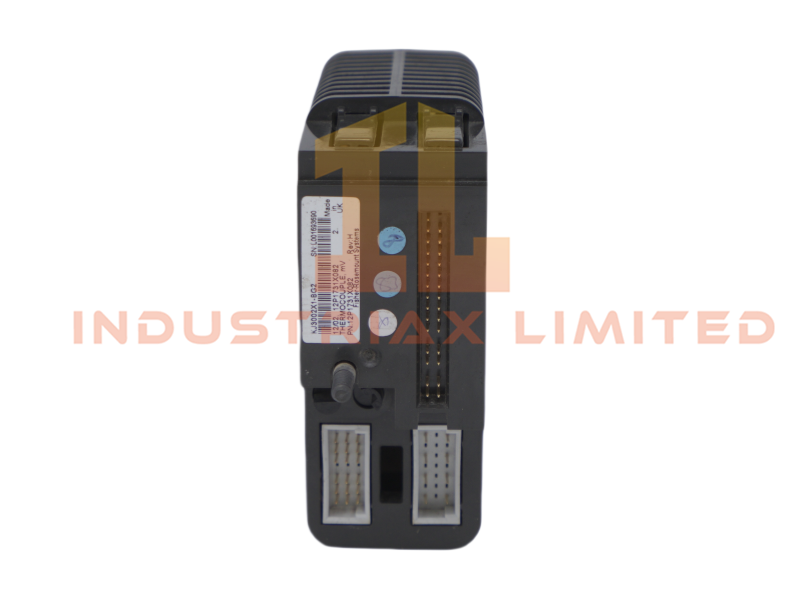

The Emerson KJ3002X1-BA1 12P0680X072 VE4003S2B2 Analog Input HART Module is an advanced 8-channel input card designed for the DeltaV™ M-series I/O subsystem. Supporting 4–20 mA signals and HART-enabled devices, it provides precise data acquisition, real-time diagnostics, and seamless integration into distributed control systems (DCS).
Technical Specifications
| Parameter |
Details |
| Model |
KJ3002X1-BA1 |
| Order Code |
12P0680X072 VE4003S2B2 |
| Product Type |
Analog Input HART Module |
| Channels |
8 analog input channels |
| Signal Range |
4–20 mA |
| HART Compatibility |
Fully supports HART-enabled devices |
| System Compatibility |
DeltaV™ M-series I/O Subsystem |
| Communication |
Ethernet router |
| Dimensions |
8.1 × 7.9 × 8.8 cm |
| Weight |
0.2 kg |
| Origin |
USA |
| HS Code |
8537101190 |
| MOQ |
1 |
| Condition |
Brand New |
| Operating Temperature |
-40°C to +70°C |
| Humidity Range |
Up to 95% relative humidity |
| Application System |
DCS (Distributed Control System) |
Functional Highlights
-
High-resolution signal processing for accurate measurement of process variables.
-
Electrical isolation protects against noise and interference.
-
Rugged design ensures stable performance in harsh environments.
-
Wide operating range supports extreme temperature and humidity conditions.
-
Seamless integration with DeltaV™ systems for efficient automation.
Application Scenarios
-
Oil & gas process monitoring and control
-
Power generation instrumentation systems
-
Chemical plant automation and diagnostics
-
Industrial environments requiring precise analog input acquisition
FAQ
Q: How many channels does the KJ3002X1-BA1 module support? A: It supports 8 analog input channels.
Q: Is this module compatible with HART devices? A: Yes, it fully supports HART-enabled field devices for diagnostics and configuration.
Q: What is the operating temperature range? A: -40°C to +70°C, suitable for demanding industrial environments.
