Description
Product Overview

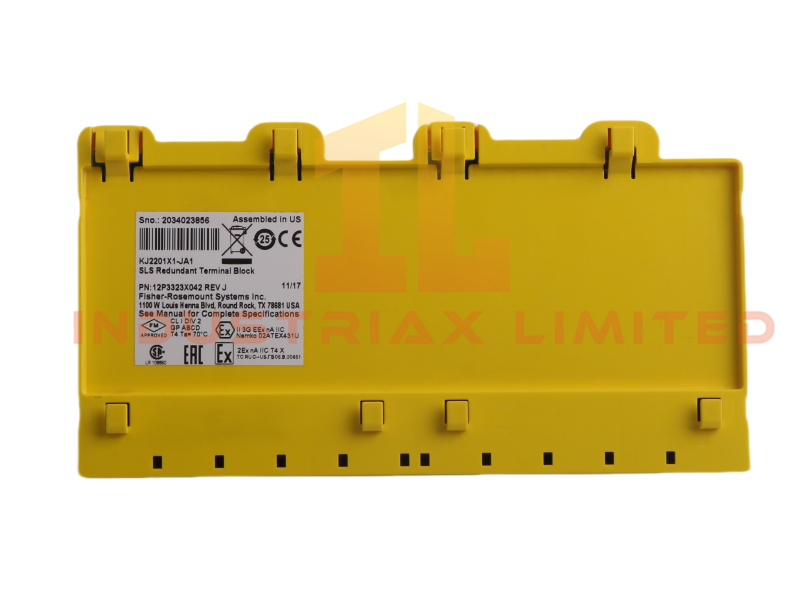

The KJ2201X1-JA1 12P3323X042 Terminal Block from Emerson provides secure, redundant connectivity for DeltaV SIS™ safety systems. Designed for high-risk industrial environments, this module ensures uninterrupted signal flow even during connection faults.
Engineers value the KJ2201X1-JA1 12P3323X042 for its dual wiring paths, which maintain safety logic integrity under failure conditions. Its rugged construction withstands corrosive atmospheres, vibration, and extreme temperatures, making it ideal for chemical plants and hazardous zones.
The terminal block integrates seamlessly with DeltaV software, enabling guided setup and diagnostics without interrupting operations. Its compact form factor and modular design simplify installation while meeting strict safety standards for mission-critical applications.
Technical Specifications
| Parameter |
Specification |
| Model Number |
KJ2201X1-JA1 12P3323X042 |
| Manufacturer |
Emerson |
| Product Range |
DeltaV SIS™ Process Safety System |
| Module Type |
Terminal Block |
| System |
DCS |
| Wiring Design |
Redundant dual-path configuration |
| Diagnostics |
DeltaV-guided setup and fault detection |
| Protection |
Fault shielding, corrosion resistance |
| Certifications |
IEC 61508 SIL3, CE, UL, CSA |
| Operating Temp. |
-40°C to +70°C |
| Dimensions |
16.6 × 8.8 × 5.5 cm |
| Weight |
0.34 kg |
| HS Code |
8537101190 |
| Communication |
Ethernet Router |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
Applications & Compatibility
The KJ2201X1-JA1 12P3323X042 integrates with DeltaV safety systems and supports:
-
Redundant field wiring in SIS architectures
-
High-integrity signal routing in chemical and energy sectors
-
Fault-tolerant installations in hazardous environments
-
DeltaV-based diagnostics and configuration
