Description
Overview

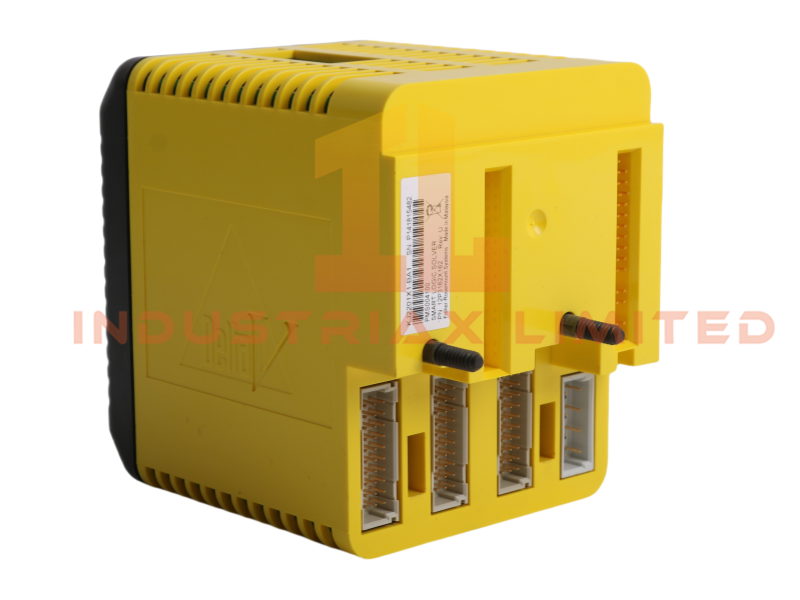

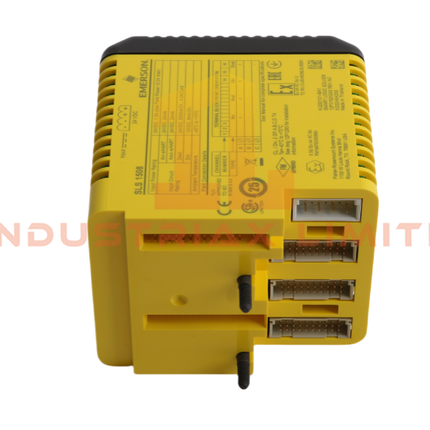

The Emerson KJ2201X1‑BA1 (12P3162C092) SLS1508 VS3202 is an Analog Input HART module engineered for use within the DeltaV SIS™ process safety system. It provides high‑integrity acquisition of 4–20 mA HART signals from safety‑rated field transmitters, supporting the execution of Safety Instrumented Functions (SIFs) in critical industrial environments.
Functional Characteristics
This module captures analog process variables—such as pressure, temperature, flow, and level—while simultaneously retrieving HART diagnostic data. Its design ensures deterministic, fault‑tolerant operation, enabling reliable monitoring and rapid response within safety‑critical applications.
The KJ2201X1‑BA1 (12P3162C092) SLS1508 VS3202 incorporates continuous self‑diagnostics to detect wiring faults, device failures, and internal module issues. These diagnostics enhance system availability and support compliance with IEC 61511 safety lifecycle requirements.
Its rugged construction ensures stable performance in harsh industrial environments, including high vibration, electrical noise, and temperature variations. The module integrates seamlessly with DeltaV SIS logic solvers, simplifying configuration, validation, and long‑term maintenance.
Technical Specifications
| Parameter |
Specification |
| Model |
KJ2201X1‑BA1 |
| Part Number |
12P3162C092 |
| Associated Hardware |
SLS1508 / VS3202 |
| Product Type |
Analog Input HART Module |
| Input Signal |
4–20 mA with HART digital overlay |
| Diagnostics |
Wiring faults, device status, module health |
| System Platform |
DeltaV SIS™ Process Safety System |
| Dimensions |
4.4 × 10.8 × 12.7 cm |
| Weight |
0.20 kg |
| Operating Environment |
Industrial‑grade, EMI‑resistant |
| Country of Origin |
USA |
| HS Code |
8537101190 |
| System Type |
DCS / SIS |
| Availability |
In stock |
Performance Description
The module ensures accurate and stable analog measurement for safety‑critical loops. Its HART capability enhances visibility into field device health, enabling predictive maintenance and reducing the likelihood of spurious trips. The KJ2201X1‑BA1 (12P3162C092) SLS1508 VS3202 supports deterministic execution of safety logic, ensuring rapid and reliable response to abnormal process conditions.
Its modular design allows easy installation and system expansion, supporting both new SIS deployments and modernization projects. The robust electrical design ensures long‑term reliability in industries such as refining, petrochemicals, and power generation.
Application Scenarios
-
Safety‑rated temperature, pressure, flow, and level measurement
-
Emergency shutdown (ESD) systems
-
High‑integrity pressure protection systems (HIPPS)
-
Fire and gas detection loops
-
Safety Instrumented Functions requiring HART diagnostics
FAQ
Q: Does this module support redundant configurations Redundancy is supported at the DeltaV SIS logic solver and I/O subsystem level depending on system design.
Q: What field devices are compatible Any 4–20 mA HART‑enabled safety transmitter certified for SIS applications.
Q: Can this module be used in standard DeltaV DCS systems No, it is specifically designed for DeltaV SIS safety‑instrumented architectures.
