Description
Overview

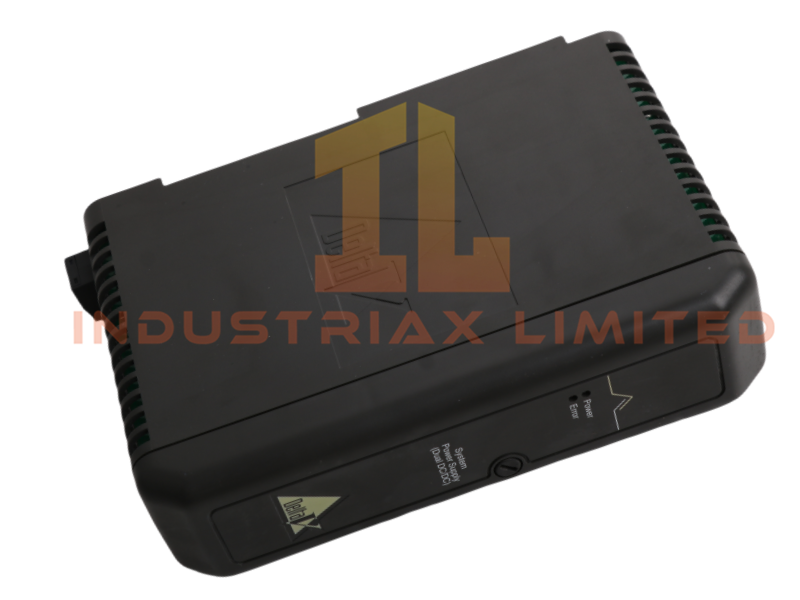

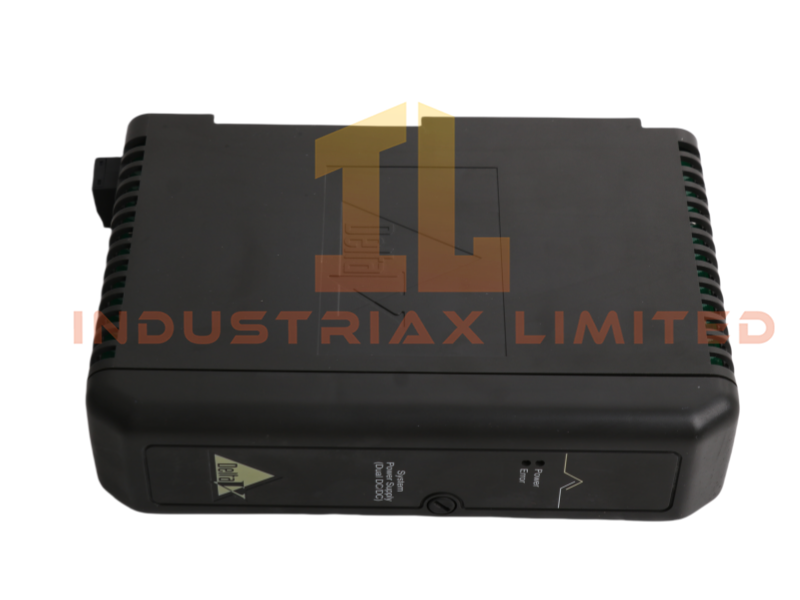

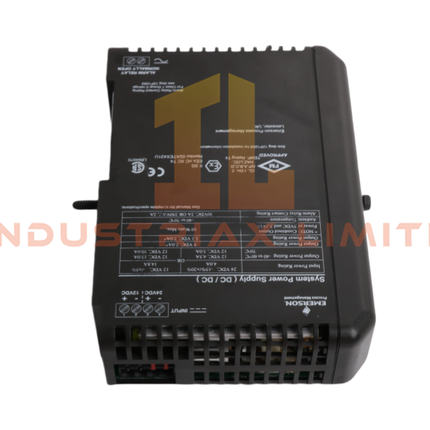

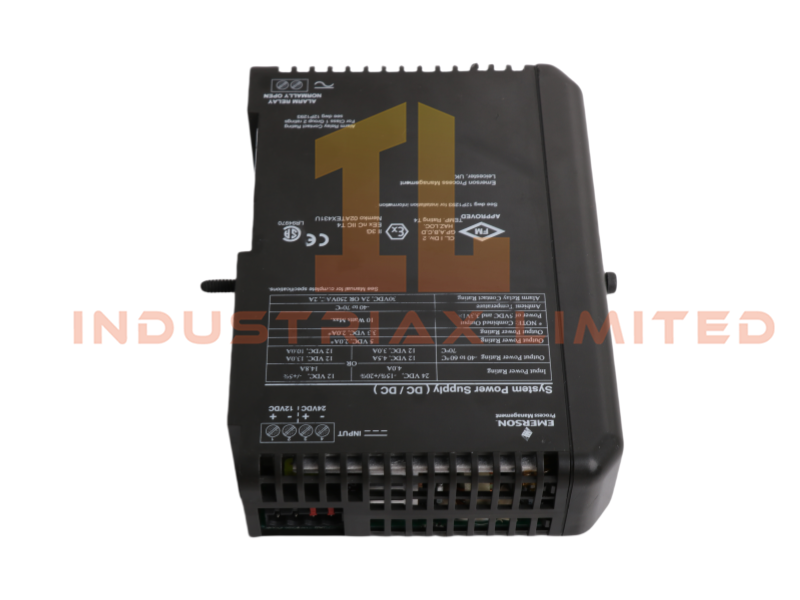

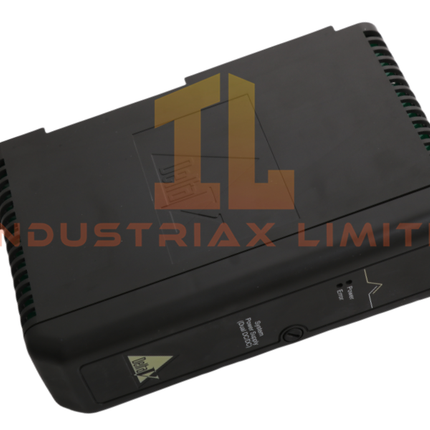

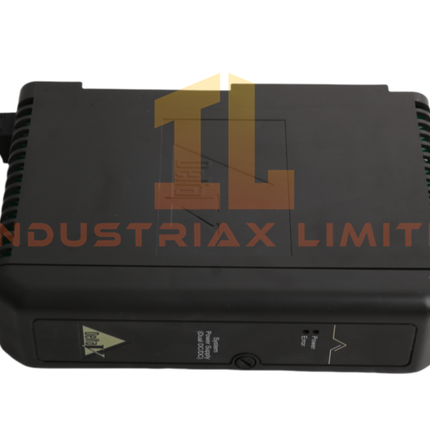

The Emerson KJ1501X1‑BC2 (12P2186X032) VE5008 is a compact system power supply module designed for the DeltaV SIS™ process safety system. It provides stable and reliable power delivery to safety‑related I/O modules and controllers, ensuring continuous operation of critical protection functions in demanding industrial environments.
Functional Characteristics
This module delivers regulated power to DeltaV SIS components, supporting deterministic and fault‑tolerant operation of safety instrumented functions (SIFs). Its electrical design ensures clean, noise‑free power output, minimizing the risk of voltage disturbances that could affect system performance.
The KJ1501X1‑BC2 (12P2186X032) VE5008 features built‑in diagnostics that continuously monitor supply health, load conditions, and internal circuitry. These diagnostics support early detection of abnormal conditions, improving system availability and reducing maintenance downtime.
Its rugged construction allows reliable operation in environments with temperature fluctuations, electrical noise, and mechanical vibration. The module’s compact form factor simplifies installation and supports efficient cabinet layout in DeltaV SIS architectures.
Technical Specifications
| Parameter |
Specification |
| Model |
KJ1501X1‑BC2 |
| Part Number |
12P2186X032 |
| Associated Module |
VE5008 |
| Product Type |
System Power Supply Module |
| Function |
Power delivery for DeltaV SIS components |
| Diagnostics |
Supply health, load monitoring, internal fault detection |
| System Platform |
DeltaV SIS™ Process Safety System |
| Dimensions |
8.4 × 9 × 5.5 cm |
| Weight |
0.18 kg |
| Operating Environment |
Industrial‑grade, EMI‑resistant |
| Country of Origin |
USA |
| HS Code |
8537101190 |
| System Type |
DCS / SIS |
| Availability |
In stock |
Performance Description
The module ensures stable and uninterrupted power delivery to safety‑critical components, supporting high‑integrity protection functions in process plants. Its robust electrical design minimizes the risk of voltage dips or noise interference, ensuring consistent system performance.
The KJ1501X1‑BC2 (12P2186X032) VE5008 integrates seamlessly with DeltaV SIS engineering tools, simplifying commissioning and lifecycle management. Its compact size and modular design support flexible system expansion and efficient panel utilization.
Application Scenarios
-
Power supply for DeltaV SIS logic solvers and I/O
-
Safety instrumented systems in refining and petrochemical plants
-
Power generation and turbine protection systems
-
Chemical processing safety loops
-
High‑integrity process protection architectures
FAQ
Q: Is this module redundant‑capable Redundancy depends on the overall DeltaV SIS system design and cabinet configuration.
Q: What components does this power supply support It provides regulated power to DeltaV SIS logic solvers, I/O modules, and associated safety hardware.
Q: Can it operate in harsh industrial environments Yes, it is engineered for environments with electrical noise, vibration, and temperature variations.
