Description
Product Description
Overview

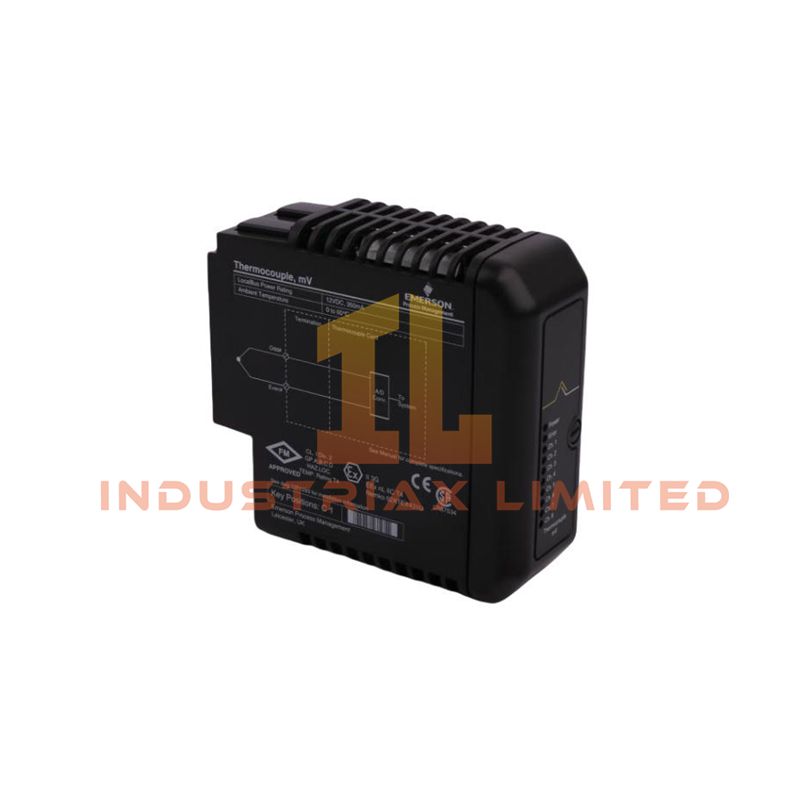

The KC3010X1-BA1 is a high-density Analog Input (AI) Plus module designed for the DeltaV S-series Distributed Control System (DCS). Engineered for complex process environments, this 16-channel module integrates HART communication while maintaining robust operation in hazardous areas. It supports both 2-wire and 4-wire transmitters and ensures precise signal acquisition for critical process monitoring.
Key Features
-
16 Analog Channels: Consolidates multiple process signals into a single module to reduce cabinet footprint.
-
HART Pass-Through: Enables communication with HART-enabled field devices for diagnostics and configuration.
-
High Reliability: Supports online maintainability and hot-swappable operation without disrupting other I/O modules.
-
Advanced Protection: Includes G3 conformal coating for corrosive environments, open circuit detection, and high-resolution A/D conversion.
-
Hazardous Area Certification: ATEX Zone 2, IECEx, and Class I Div 2 compliant, ensuring safe installation in explosive atmospheres.
Technical Specifications
| Feature |
Specification |
| Module Type |
Analog Input Plus, 16-channel |
| Signal Type |
4–20 mA DC, HART compatible |
| HART Support |
v5, v6, v7 pass-through |
| LocalBus Power |
12 VDC, 150 mA |
| Field Power |
24 VDC, 500 mA |
| Field Circuit Output |
24 VDC, 30 mA per channel |
| Operating Temperature |
-40°C to +70°C (-40°F to +158°F) |
| Shock |
10 g, half-sine, 11 ms |
| Vibration |
1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Humidity |
5–95%, non-condensing |
| Airborne Contaminants |
ISA-S71.04-1985 Class G3 |
| Terminal Keying |
Rotary key system for I/O card compatibility |
Applications
Ideal for chemical, petrochemical, and manufacturing plants where high-density analog signal acquisition and HART integration are required. It is particularly suited for continuous processes where high availability and predictive maintenance are critical.
FAQ
Q: Can this module be replaced while the system is powered?
A: Yes, the KC3010X1-BA1 supports hot-swappable installation on the S-series carrier.
Q: Does it require calibration?
A: No calibration is necessary. The module is factory calibrated and ready for use.
Q: Which terminal block should I use?
A: Use a compatible high-density 10-pin or 16-pin terminal block (e.g., KJ3221X1-EA1) to fully utilize all channels.
Q: Is it suitable for hazardous locations?
A: Yes, it is certified for ATEX Zone 2, IECEx, and Class I Div 2 hazardous areas.
