Product Description
Overview

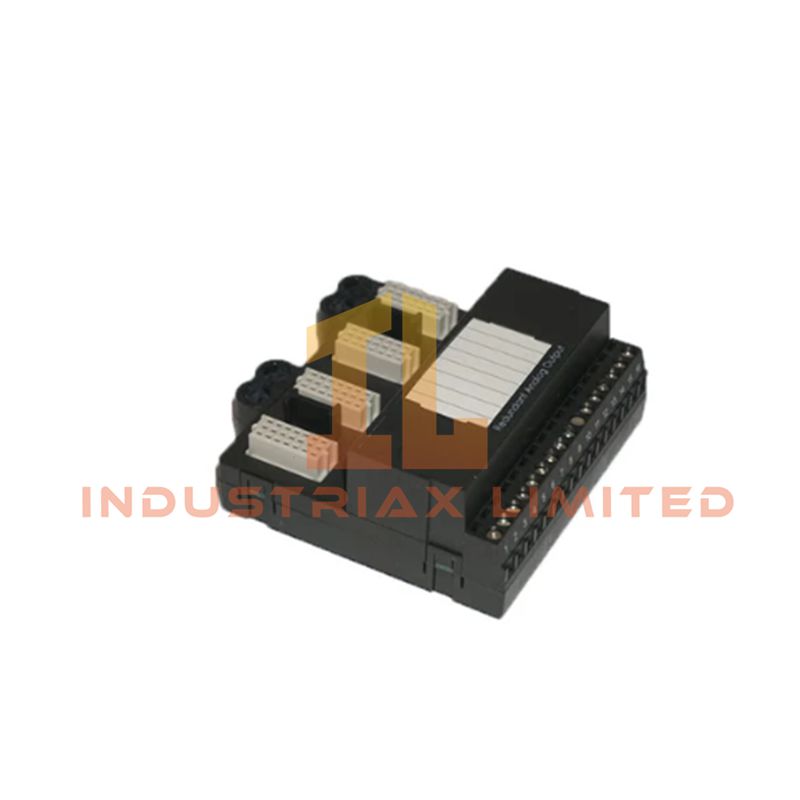

The KC3010X1-BA1 from Emerson is a high-density, 16-channel Analog Input Plus module for DeltaV S-series and Series 2 systems. It converts 4-20 mA signals from smart field devices into precise digital data while supporting HART communication for advanced diagnostics and device monitoring. Engineered for industrial environments, it combines high accuracy, hot-swappable convenience, and robust environmental tolerance.
Key Features
HART Protocol Integration
The module enables full HART communication, providing access to secondary process variables, device status, and calibration information. This functionality supports predictive maintenance and proactive asset management without disrupting the main control loop.
High-Density, High-Accuracy I/O
With 16 channels in a single module, the card maximizes cabinet utilization. Each channel provides 16-bit resolution and 0.1% span accuracy, ensuring reliable measurement for pressure, flow, and temperature signals.
Hot-Swappable Design
The module can be replaced or upgraded while the I/O node remains energized. This allows maintenance or expansion without system downtime or interruption of other modules.
Industrial Reliability
Certified for harsh environments and hazardous locations, the KC3010X1-BA1 features:
-
G3 Environmental Protection: Conformal coating guards against moisture, dust, and corrosive airborne contaminants.
-
Hazardous Area Compliance: ATEX Zone 2 and Class 1 Division 2 certification for safe operation in explosive atmospheres.
Technical Specifications
| Feature |
Specification |
| Channels |
16 |
| Input Signal |
4–20 mA standard, full range 1–22.5 mA |
| LocalBus Power |
12 VDC at 150 mA |
| Field Circuit Power |
24 VDC at 30 mA per channel, 500 mA bussed max |
| Resolution |
16-bit A/D converter |
| Accuracy |
±0.1% of span typical |
| Operating Temperature |
-40°C to +70°C |
| Shock Resistance |
10 g, half-sine, 11 ms |
| Vibration Resistance |
1 mm peak-to-peak 2–13.2 Hz; 0.7 g 13.2–150 Hz |
| Humidity |
5–95% non-condensing |
| Airborne Contaminants |
ISA-S71.04 Class G3 |
| Hazardous Area Rating |
ATEX II 3G Ex nA [ic] IIC Gc |
| Mounting |
DeltaV S-series or Series 2 I/O Carrier |
Performance Characteristics
-
Digital Signal Filtering: Reduces 50/60 Hz interference and process-induced spikes.
-
Over-Range Detection: Monitors and reports high or low off-scale conditions for safety response.
-
Self-Diagnostics: Continuously verifies internal electronics and wiring integrity, including short/open detection.
Installation and Maintenance
-
Field power must be removed prior to insertion or removal.
-
Rotary keying ensures proper module-terminal block alignment.
-
No user-serviceable parts; calibration is not required.
Applications
-
Process plants requiring 16-channel analog inputs with HART: chemical, pharmaceutical, oil & gas, and power generation.
-
Monitoring critical smart transmitters for predictive maintenance.
-
Systems needing minimal footprint with high signal density.
FAQ
Q: Can the module be replaced while the system is live?
A: Yes, it supports hot-swappable installation without impacting other modules.
Q: What type of HART data is available?
A: Both primary process variables and secondary device parameters, including diagnostics and calibration data.
Q: Does it require calibration or maintenance?
A: No calibration is needed, and there are no user-serviceable parts inside.
