Product Description

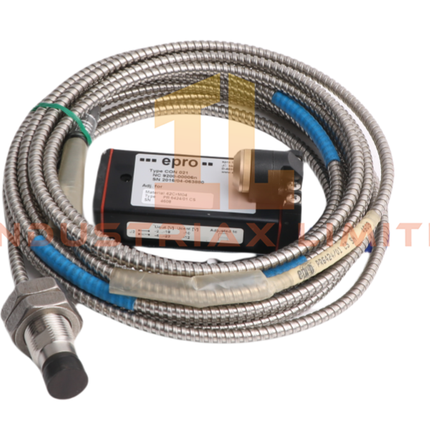

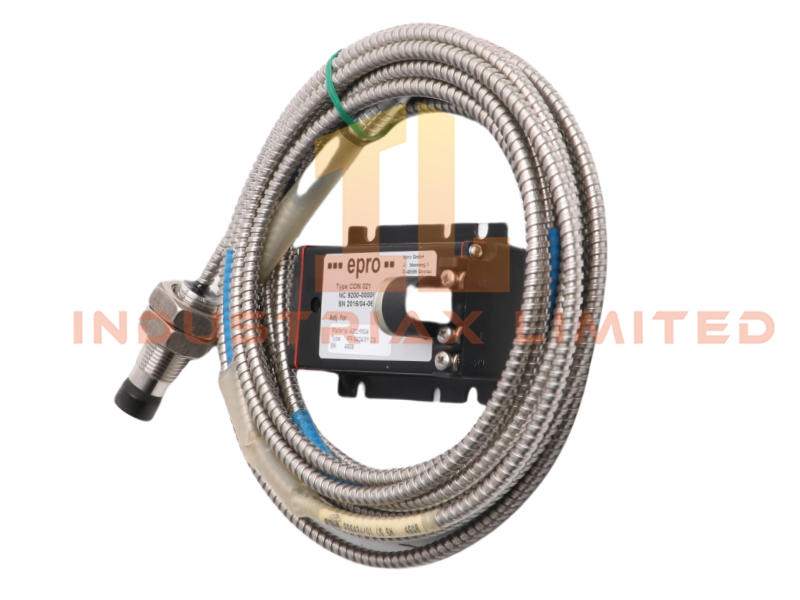

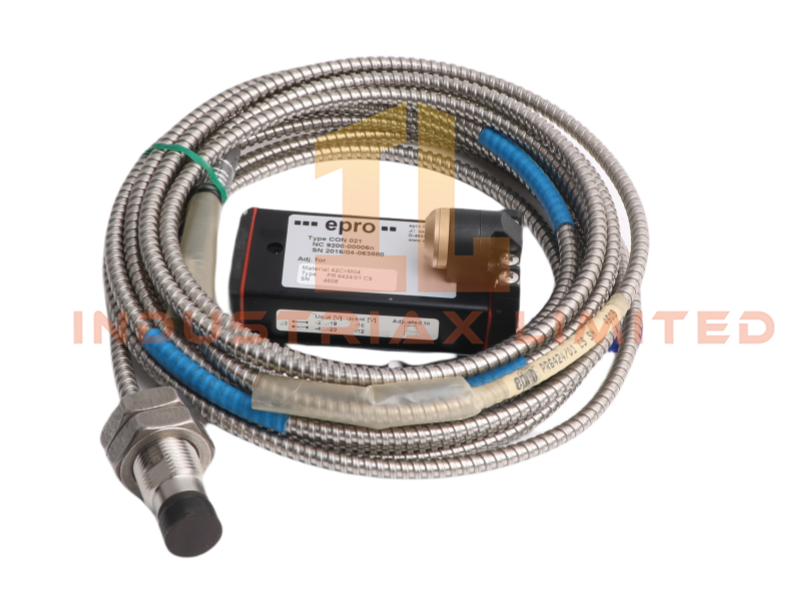

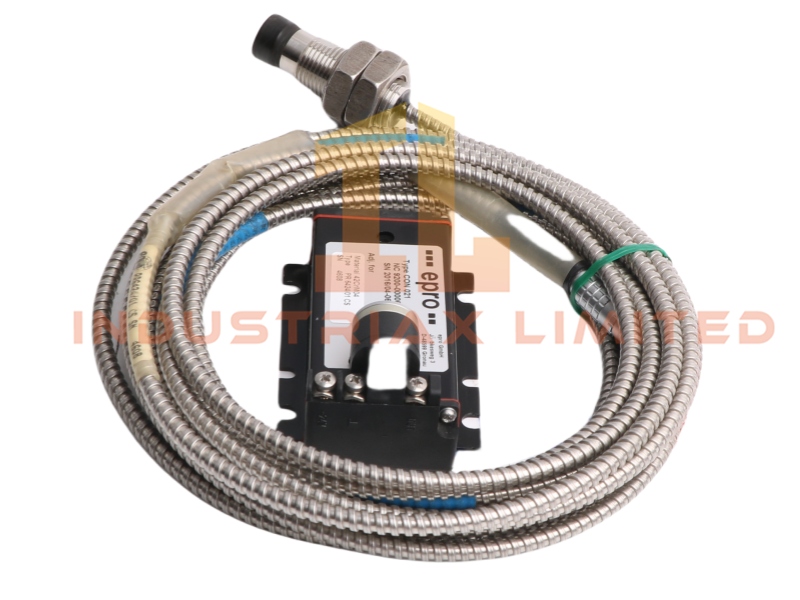

The PR6424/01CS from Emerson Epro is a precision eddy-current proximity probe engineered for high-accuracy, non-contact monitoring of shaft position and vibration in rotating machinery. Its compact 16 mm probe design allows installation in confined spaces without compromising measurement precision, making it ideal for industrial environments where both space and reliability are critical.
This sensor integrates seamlessly with PI670-compliant monitoring systems and compatible Epro signal converters (e.g., CON021, CON041) to deliver real-time data on static displacement and dynamic vibration. It is optimized for continuous operation under harsh conditions, providing stable and repeatable readings.
Key Features
-
Compact 16 mm probe diameter suitable for restricted mounting areas
-
Non-contact operation eliminates mechanical wear and reduces maintenance
-
High sensitivity ensures precise detection of shaft motion
-
Robust design for continuous operation in demanding industrial environments
-
Compatible with Epro signal converters for both displacement and vibration monitoring
Technical Specifications
General Data
Measurement Characteristics
-
Sensitivity: 4 V/mm ±1.5%
-
Linear Measuring Range: ±2.0 mm
-
Dynamic Measurement Range: 0–1000 µm
-
Nominal Gap Distance: ~2.7 mm
-
Resolution: Up to 10 µm (application dependent)
-
Long-Term Stability: Drift 0.3% of full scale
-
Target Material: Ferromagnetic steel (e.g., 42CrMo4)
-
Minimum Shaft Diameter: ≥80 mm
-
Maximum Surface Velocity: Up to 2.5 m/s
Environmental & Operational
-
Continuous operation in temperatures ranging from –20 °C to +120 °C
-
Resistant to oil, dust, and moderate vibration levels
Applications
The PR6424/01CS is widely used in:
-
Rotating machinery condition monitoring
-
High-speed turbine and generator shaft tracking
-
Industrial equipment vibration analysis
-
Compact assemblies where precise shaft displacement data is required
FAQ
Q: Can this sensor measure high-speed shaft vibrations?
A: Yes, the sensor supports dynamic measurement up to 1000 µm, making it suitable for high-frequency vibration monitoring.
Q: Is it compatible with standard Epro signal converters?
A: Yes, it integrates with devices such as CON021 and CON041 for real-time displacement and vibration data.
Q: What types of materials can it measure?
A: Designed for ferromagnetic materials like 42CrMo4 steel; performance may vary with non-ferromagnetic targets.
Q: What is the minimum installation space required?
A: The 16 mm probe tip allows installation in tight spaces without compromising accuracy.
