Description

Product Description

Overview

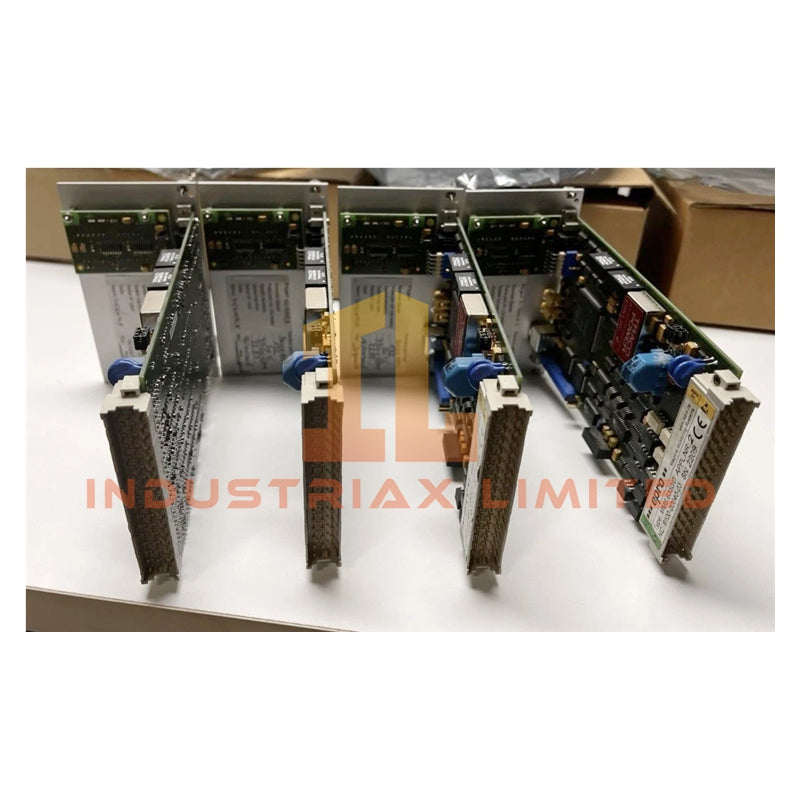

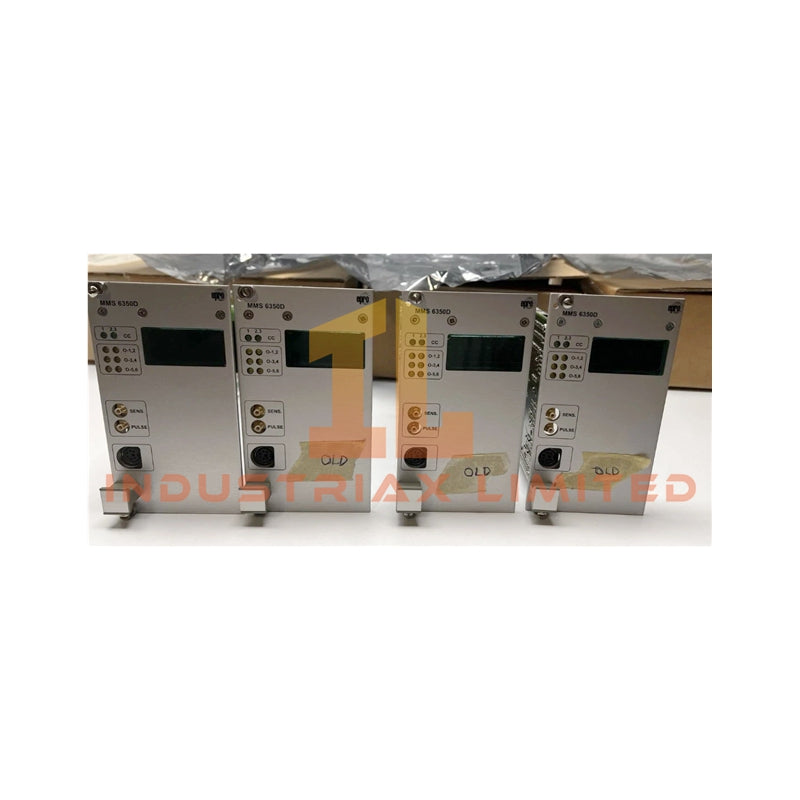

MMS6350D is a high-performance industrial speed sensor module designed for precise rotational speed measurement. It provides multiple signal outputs, including analog voltage, analog current, and TTL pulses, ensuring compatibility with a wide range of control and data acquisition systems. The module features built-in signal processing for real-time characteristic value generation and supports continuous channel monitoring to meet demanding industrial safety and reliability requirements.

Input Signal Specifications

• Input Type: Differential, non-reactive, open- and short-circuit proof

• Voltage Range: 0–27.3 VDC, absolute maximum 30 V

• Input Resistance: 100 kΩ

Sensor Signal Output

• Voltage Output Range: 0–4.1 V (Output = 0.15 × sensor signal)

• Accuracy: ±1% full-scale

• Frequency Response: 0–16 kHz (-3 dB ±20%)

• Permissible Load: 1 MΩ

• Internal Resistance: 10 kΩ

Dynamic Pulse Output (TTL)

• Output Type: TTL pulses, open- and short-circuit protected

• Nominal Voltage: 0–5 V

• Frequency Range: 0–20 kHz

• Permissible Load: ≥1 kΩ

• Internal Resistance: 5.1 kΩ

Pulse Output (Optocoupled)

• Maximum Voltage: +24 V DC (UC), +48 V DC (collector)

• Max Collector Current (C-E Conducting): 100 mA

Characteristic Value Signal Processing

• Processing Method: Input pulses are standardized by the internal processor

• Calculation: Characteristic value = Input pulse frequency ÷ number of teeth on trigger wheel

• Maximum Measuring Range: Limited by 20 kHz maximum input frequency

• Max Trigger Wheel Teeth: 255 (max 4700 rpm)

Current Outputs

• Output 1: 0/4–20 mA, galvanically isolated, ±0.1% full-scale accuracy, 16-bit resolution

• Output 2: 0/4–20 mA, non-isolated, with analog feedback for comparison, ±0.1% full-scale accuracy, 16-bit resolution

• Speed Scaling: One speed zoom per current output, ±0.1% accuracy

Channel Monitoring and Visualization

• Function: Continuously monitors each channel’s speed signal and compares it with the other channels’ pulses and current outputs for maximum safety

• Status Indication: Dual green LEDs on front panel indicate faults

• Fault Signaling: Via opto-decoupled collector/emitter output

Applications

Ideal for rotational machinery speed monitoring, automated production line speed control, industrial process measurement, and safety monitoring systems.

FAQ

• Q: How many teeth can the trigger wheel support?
  A: Up to 255 teeth, maximum rotational speed 4700 rpm.

• Q: Can the outputs be connected directly to a PLC?
  A: Yes, both TTL and 4–20 mA outputs are PLC-compatible.

• Q: Does the module provide isolated outputs?
  A: Output 1 is isolated; Output 2 is non-isolated with feedback.

---

Technical Specifications Table

Parameter	Specification
Input Type	Differential, non-reactive, open/short-circuit proof
Input Voltage	0–27.3 VDC (max 30 V)
Input Resistance	100 kΩ
Voltage Output	0–4.1 V
Accuracy	±1% full scale
Frequency Response	0–16 kHz (-3 dB ±20%)
TTL Output	0–5 V, 0–20 kHz, 5.1 kΩ internal resistance
Pulse Output	Optocoupled, max 24/48 V, max 100 mA
Current Output 1	0/4–20 mA, isolated, 16-bit, ±0.1%
Current Output 2	0/4–20 mA, non-isolated, 16-bit, ±0.1%
Max Trigger Wheel Teeth	255 teeth
Max Measuring Speed	4700 rpm

Specifications

• Brand: EMERSON

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
