Description

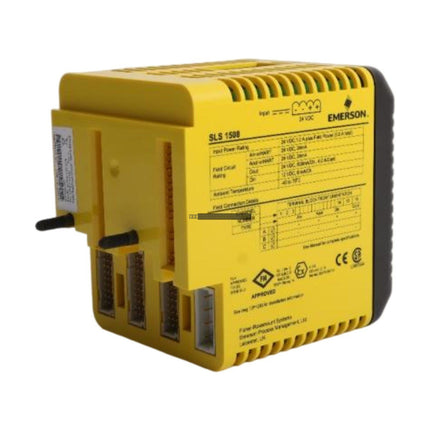

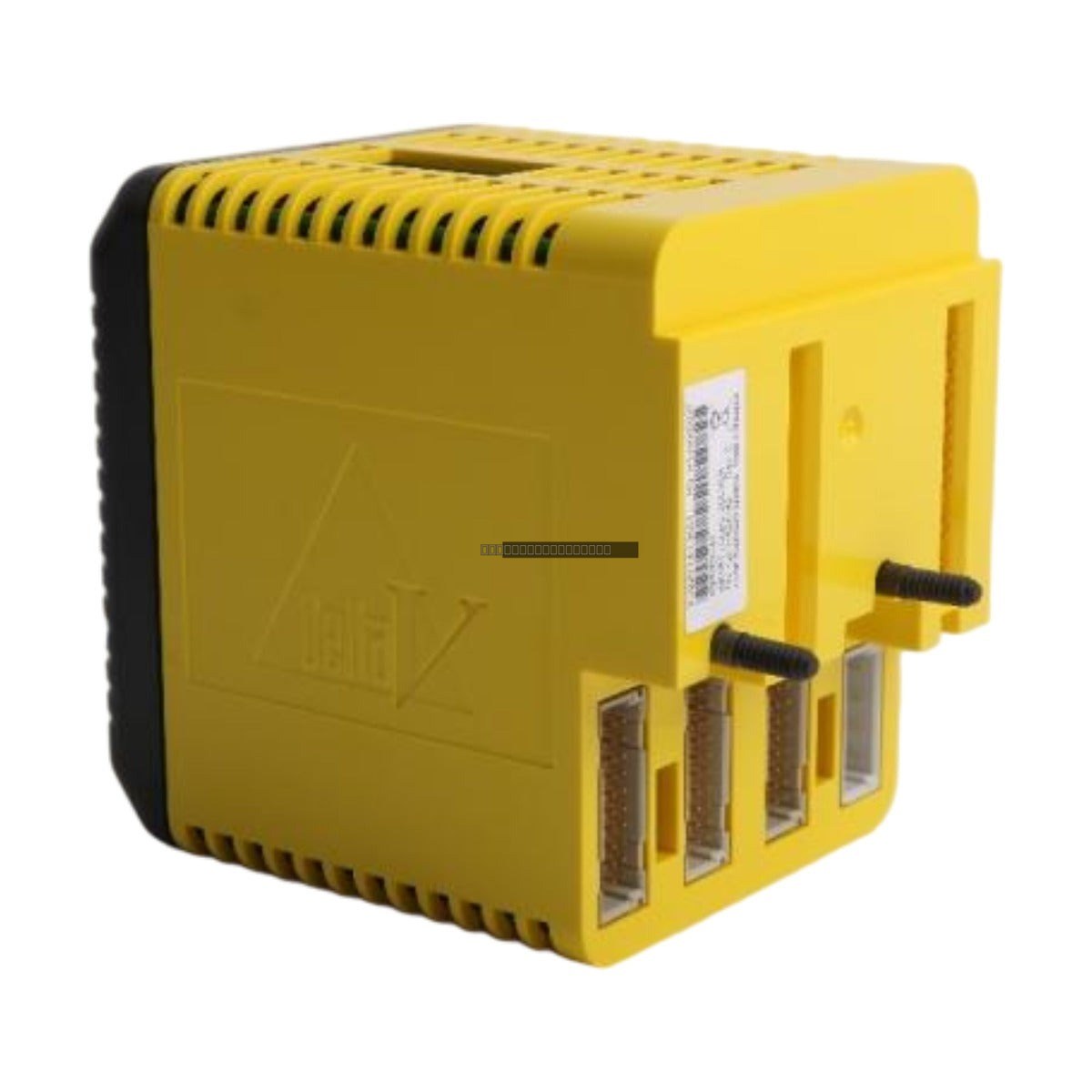

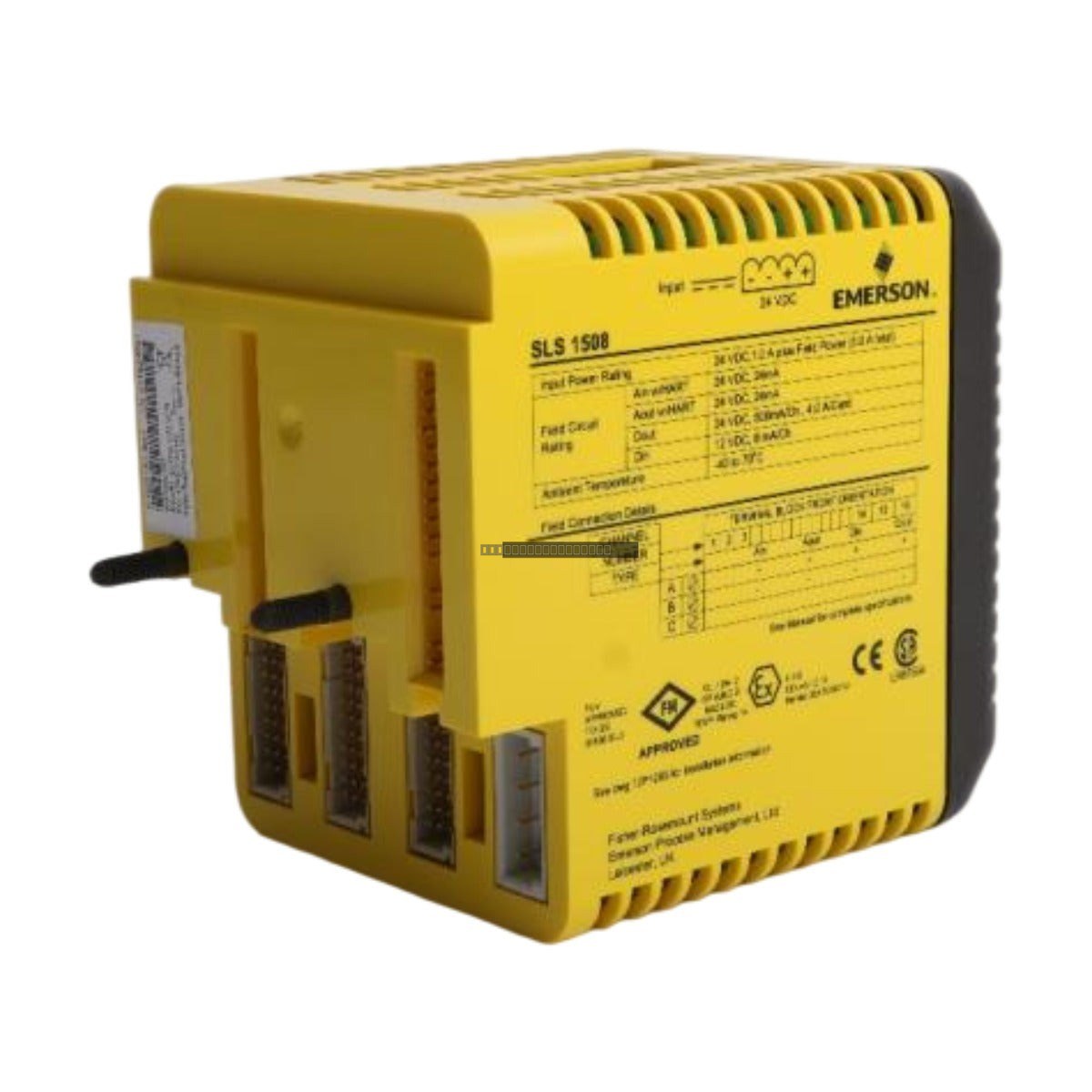

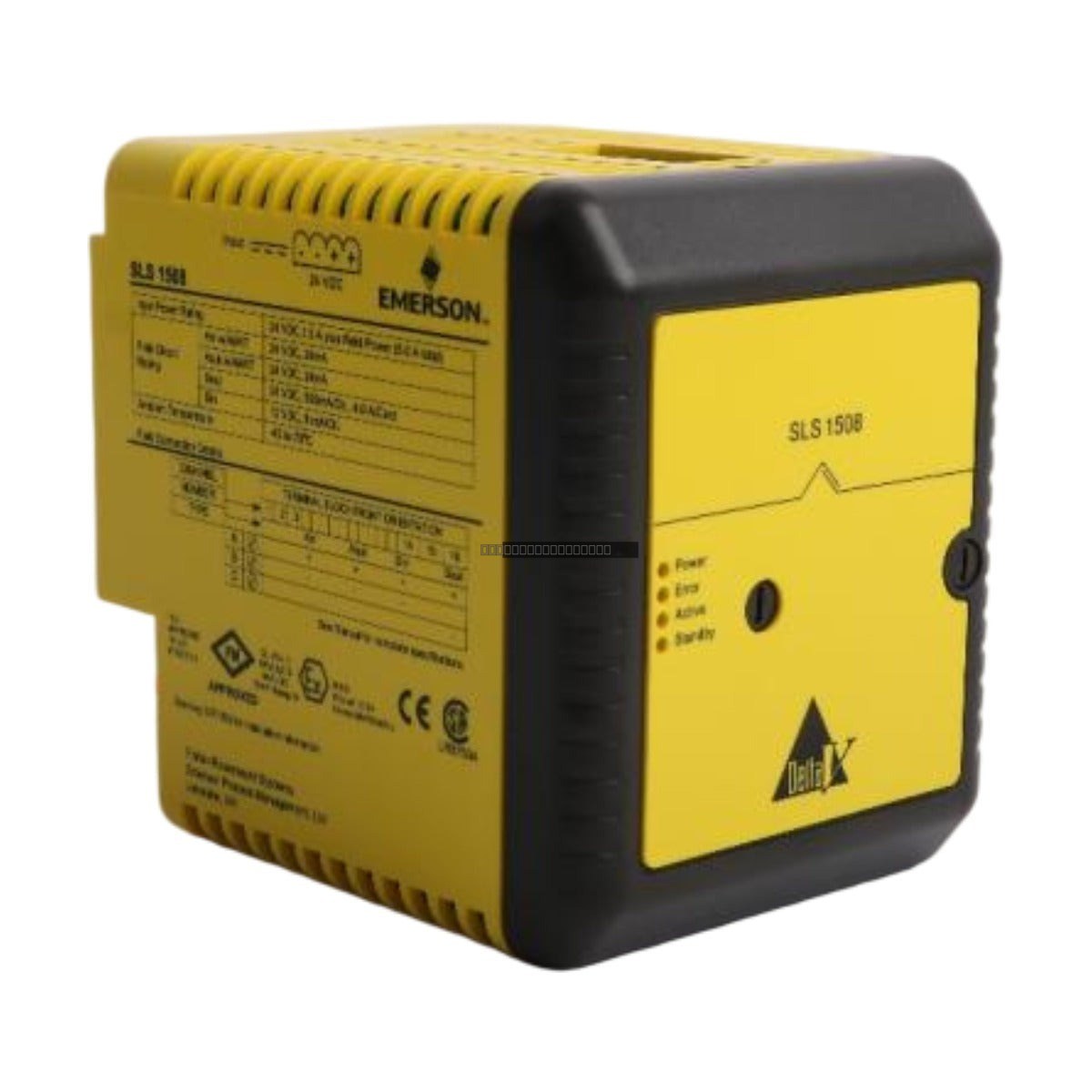

The Emerson DeltaV SIS KJ2201X1-BA1 is a specialized logic solver module engineered for the SLS 1508 safety platform. This unit serves as a critical component in safety instrumented systems, providing high-integrity execution of safety logic that remains independent of the Basic Process Control System (BPCS). By maintaining this separation, the module ensures that safety functions are executed reliably, effectively mitigating risks in hazardous industrial environments such as oil and gas facilities, chemical plants, and refineries.
Features
- Designed for integration within the DeltaV SIS SLS 1508 architecture.
- High-speed logic execution with comprehensive diagnostic coverage to minimize PFD (Probability of Failure on Demand).
- Hardened against environmental degradation with ISA-S71.04-1985 Class G3 conformal coating.
- Supports operation in demanding temperature ranges from -40 to 70 deg C.
- Certified for use in Zone 2 hazardous areas (II 3 G EEx nA IIC T4).
- Maintenance-free design; no field calibration or user-serviceable adjustments required.
Applications
This logic solver is primarily utilized in safety-critical applications where high availability and high-integrity performance are mandatory. It is suitable for emergency shutdown systems (ESD), fire and gas monitoring, and burner management systems, ensuring that processes are brought to a safe state during abnormal conditions.
Technical Specifications
| Brand |
Emerson |
| Model |
KJ2201X1-BA1 |
| Series |
DeltaV SIS (SLS 1508) |
| Input Power |
24 VDC at 1 A |
| Field Power |
4 A Maximum |
| Operating Temperature |
-40 to 70 deg C |
| Humidity |
5 to 95 percent (non-condensing) |
| Hazardous Rating |
II 3 G EEx nA IIC T4 |
| Shock Resistance |
10 g (11 ms half-sine) |
| Vibration Resistance |
1 mm pk-pk (5-16 Hz); 0.5 g (16-150 Hz) |
Installation Guidelines
-
Power Status: The module must never be inserted or removed while the system is energized. Ensure all power is disconnected before installation.
-
Handling: Use proper ESD (Electrostatic Discharge) mitigation techniques when handling the module to prevent damage to sensitive internal circuitry.
-
Mounting: Ensure the module is securely seated in the designated SLS 1508 rack slot to maintain proper electrical contact and environmental sealing.
-
Environment: Verify that the installation site meets the specified temperature and corrosive gas protection requirements (Class G3).
FAQ
Does this module require periodic calibration? No, the KJ2201X1-BA1 is factory-calibrated and requires no user adjustments or field calibration during its operational life.
Can this module be used in standard process control loops? This module is specifically designed for the DeltaV SIS platform to handle safety-instrumented functions and should be kept logically and physically segregated from standard BPCS controllers.
