Description
Description

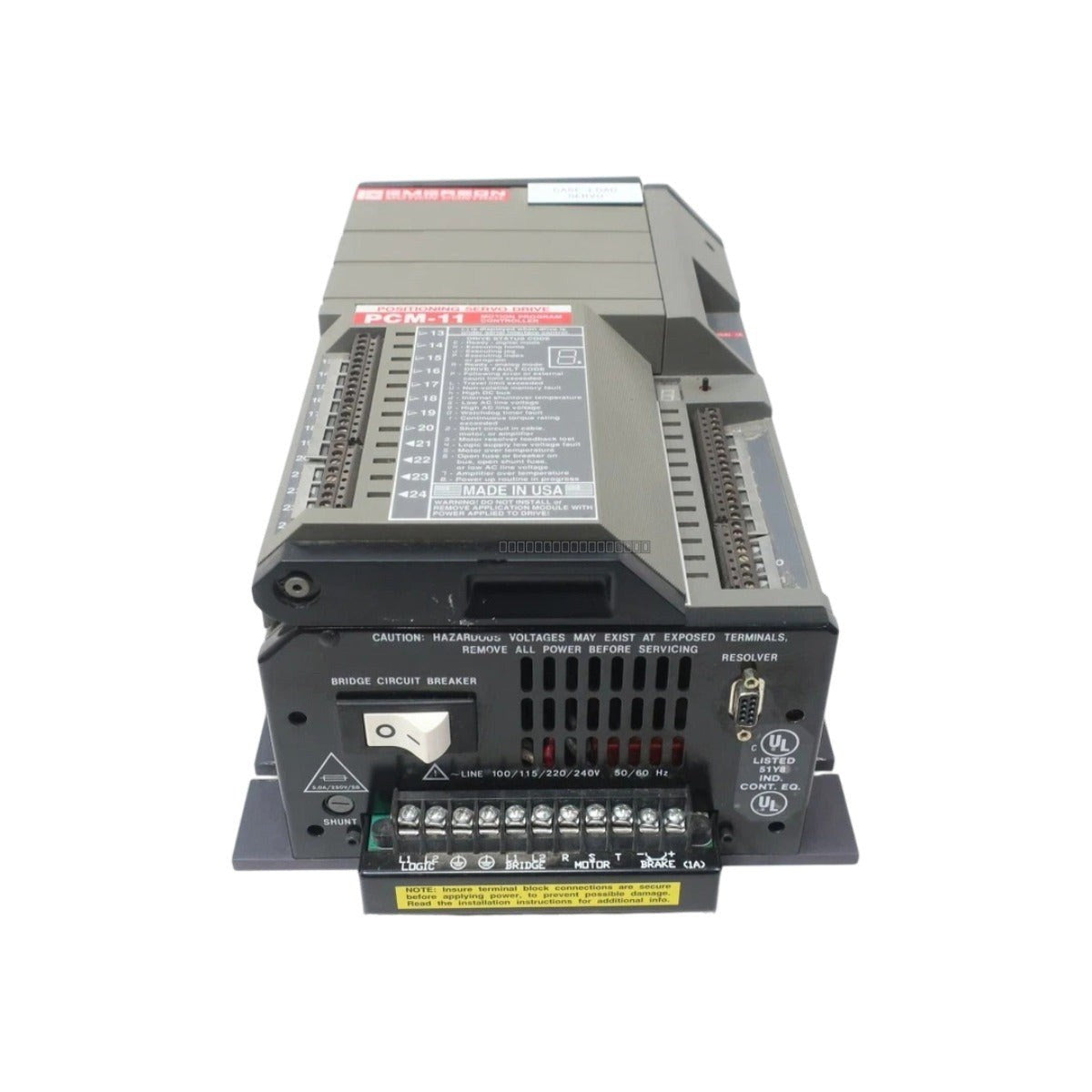

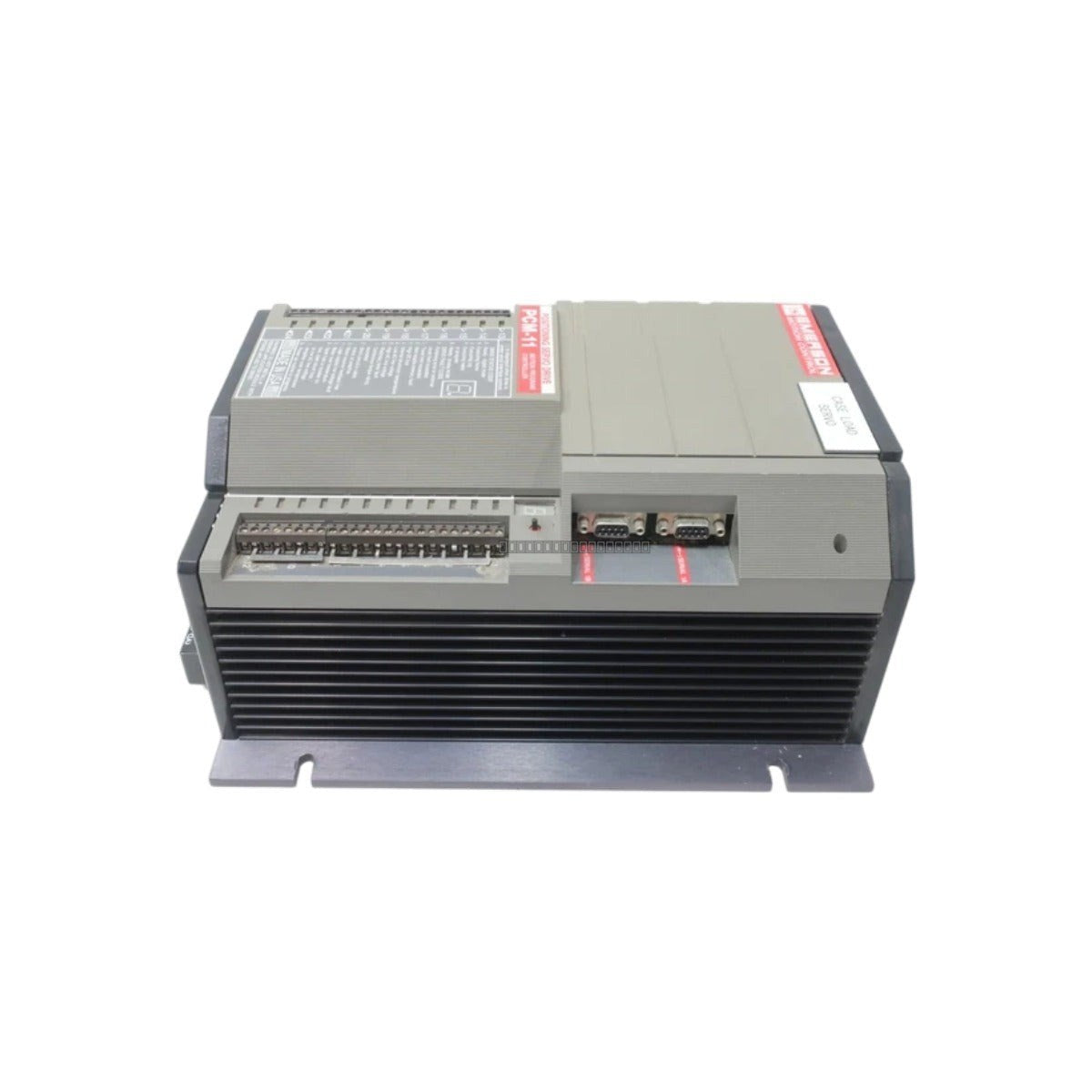

The PCM-11 (PCM11) is a high-performance Application Motion Program Controller designed to provide advanced motion control capabilities within the Emerson and Control Techniques ecosystems. Functioning as a specialized processor module, it executes complex motion profiles and logic programs independently of the primary drive control loop. This module is essential in high-precision industrial sectors such as automated assembly, packaging, and high-speed material handling, where synchronized multi-axis coordination is required. By offloading motion-specific tasks from the main controller, the PCM-11 significantly reduces system overhead and increases the deterministic response of the machinery, playing a central role in maximizing throughput and minimizing mechanical wear through optimized motion trajectories.
Features
- Dedicated microprocessor for high-speed program execution and real-time task management.
- Onboard non-volatile flash memory for storage of sophisticated motion programs and parameters.
- Direct interface with drive internal bus for instantaneous parameter adjustment and high-resolution feedback monitoring.
- Supports electronic camming, gearing, and precise positioning functions.
- Ruggedized hardware design for reliable operation in demanding thermal environments.
- Acts as a localized master in distributed control networks.
Applications
The PCM-11 is typically utilized in industrial automation environments requiring high-speed, multi-axis synchronization. Common applications include:
- Automated assembly lines
- High-speed packaging machinery
- Material handling and conveyor systems
- Precision positioning and electronic gearing applications
Technical Specifications
| Model |
PCM-11 |
| Brand |
Emerson / Control Techniques |
| Product Category |
Application Motion Program Controller |
| Operating Temperature |
0 to 50 deg C |
| Storage Temperature |
-20 to 70 deg C |
| Power Supply |
Internal via drive backplane |
| Programming Port |
RS485 / Serial Interface |
| Memory Type |
Flash memory |
| Cooling |
Natural convection |
| Enclosure Rating |
IP 20 |
Installation Guidelines
- Ensure the drive is powered down and isolated before inserting or removing the PCM-11 module.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
- Ensure the module is fully seated in the drive backplane slot to maintain reliable bus communication.
- Maintain adequate clearance around the module to allow for natural convection cooling; do not obstruct ventilation paths.
- Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
- Verify that the ambient temperature remains within the specified 0 to 50 deg C range during operation.
FAQ
What is the primary function of the PCM-11 module?
The PCM-11 serves as an application motion program controller that offloads complex motion logic from the main drive processor to improve system response time and coordination.
How is the PCM-11 powered?
The module receives its power supply directly through the drive backplane connection, requiring no external power wiring.
What programming environment is used for this module?
The PCM-11 supports programs typically developed using specialized motion languages or IEC 61131-3 compliant environments, which are loaded via the RS485/Serial interface.
