Product Description

Overview

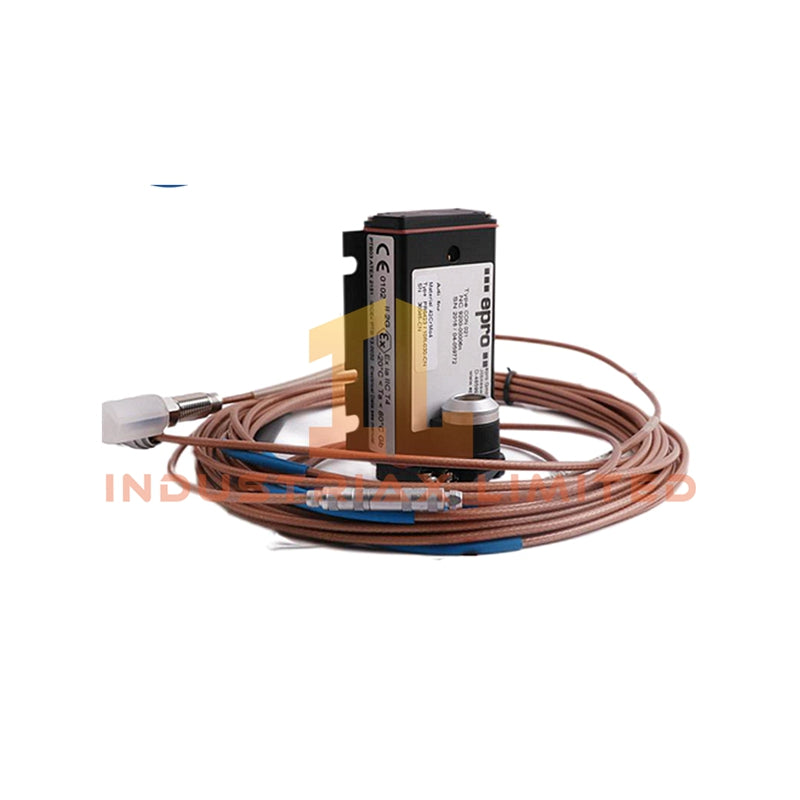

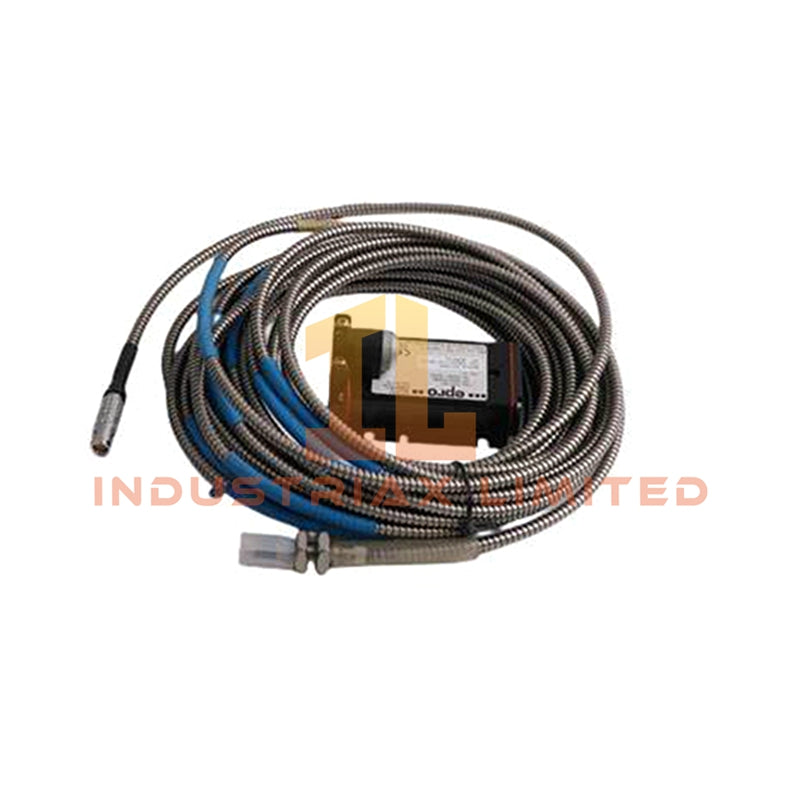

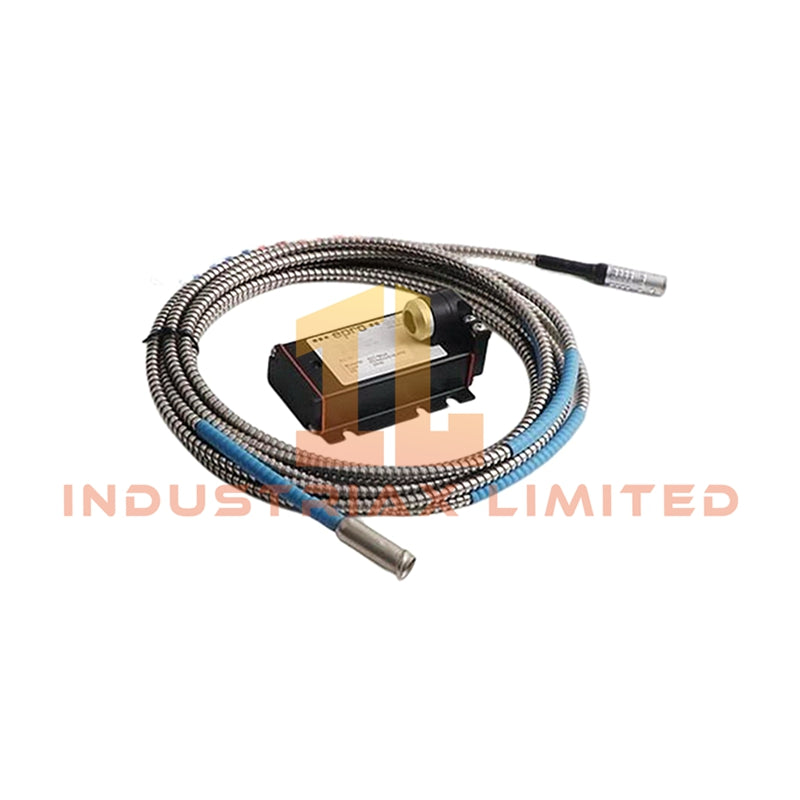

The CON021 | 914-100 signal converter paired with the PR6423/010-010-CN eddy current sensor provides high-precision, non-contact measurement of shaft displacement and vibration. This combination is engineered for critical rotating machinery such as steam turbines, large motors, and generators. Utilizing electromagnetic induction, the system converts subtle variations in gap distance into a linear analog voltage output, delivering reliable data for machine monitoring and protection systems.

Core Technical Features

High Sensitivity and Accuracy

• Detects sub-micron displacement and vibration variations.

• Essential for early fault detection in high-speed machinery.

Non-Contact Measurement

• The eddy current probe measures shaft motion without mechanical contact.

• Prevents sensor wear and eliminates interference with machine operation.

Exceptional Linearity

• The converter maintains a consistent voltage response across the full measurement range (typically 2.0 mm).

• Standard output range is -2V to -18V, ensuring precise correlation between physical displacement and electrical signal.

Industrial Reliability

• Operating temperature: Probe head withstands high temperatures near bearings.

• Pressure-resistant design suitable for lubricated and pressurized environments.

• Materials resist oil, hydraulic fluids, and common industrial chemicals.

Versatile Monitoring

• Supports both static measurements (axial shaft position) and dynamic measurements (radial vibration, eccentricity).

• Compatible with machine monitoring and control systems for real-time condition assessment.

Technical Specifications Table

Feature	Specification
Measurement Principle	Eddy Current / Non-Contact
Measurement Range	2.0 mm nominal
Output Signal	Analog Voltage (-8 V/mm typical sensitivity)
Probe Diameter	8.0 mm
Target Material	Conductive metals (calibrated for 42CrMo4)
Protection Rating	IP66/IP68 for probe head
Operating Temperature	Probe: -35°C to +150°C, Converter: -20°C to +80°C
Frequency Response	DC to 10 kHz typical
Applications	Radial vibration, axial thrust, shaft eccentricity

Application Note

This system is widely integrated into machine monitoring systems (MMS) such as Emerson AMS 6500 and MMS6000. It provides accurate real-time data to trigger alarms or protective actions if vibration or displacement exceeds operational limits, safeguarding high-value rotating equipment.

FAQ

Q: Can this sensor system detect both vibration and shaft displacement?
A: Yes, the PR6423/010-010-CN probe captures dynamic radial vibration and static axial displacement simultaneously.

Q: What is the typical measurement range?
A: The nominal measurement range is 2.0 mm, calibrated for conductive steel shafts.

Q: Is the system suitable for high-temperature environments?
A: The probe can operate up to +150°C, making it suitable for turbine and motor bearings.

Q: Are there alternative models for different mounting or cable lengths?
A: Emerson’s PR642x series offers multiple configurations to accommodate various cable lengths, connector types, and regional certifications.

Specifications

• Brand: EMERSON

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
