Overview

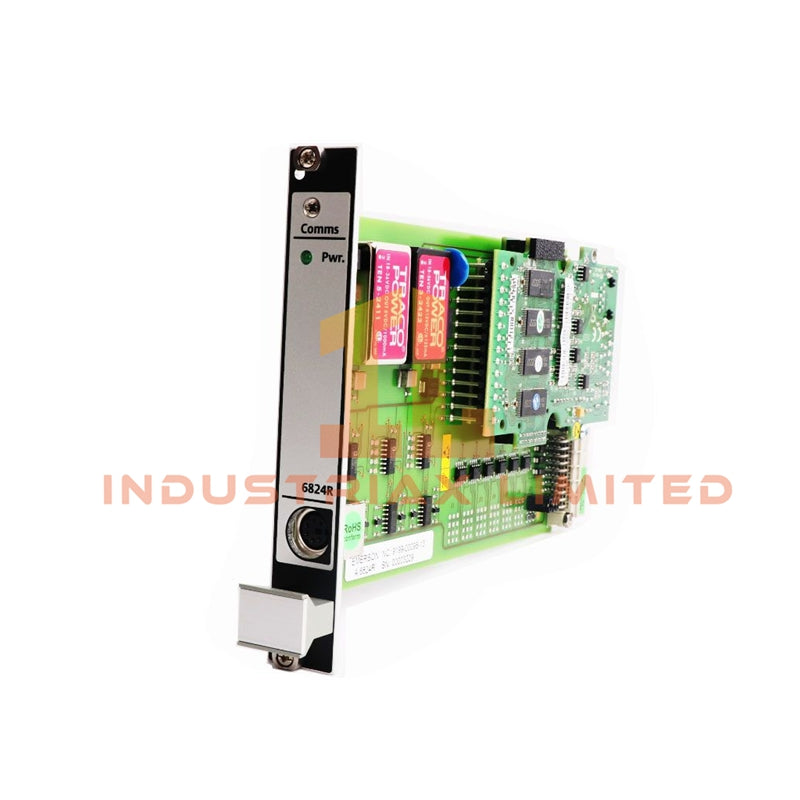

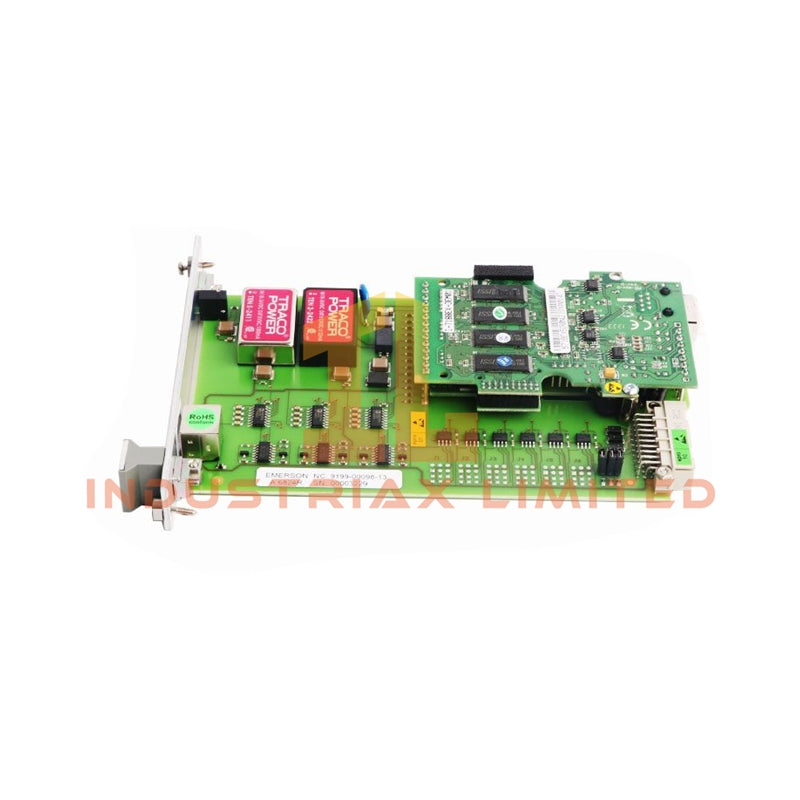

The A6824R from Emerson is a high-performance ModBus and rack interface module designed for the IMR6500 series machinery protection systems. Its 4TE wide, 1-slot plug-in format optimizes cabinet space, reducing the footprint by half compared to traditional 6U cards. This module supports optional redundancy, hot-swappable installation, and comprehensive self-monitoring to ensure reliable system performance in critical applications.
Key Features
-
Space-Saving Design: 4TE / 1-slot format minimizes cabinet space requirements.
-
Redundancy Option: Supports redundant configuration for fail-safe operation.
-
Hot-Swappable: Can be installed or replaced without powering down the rack.
-
API 670 Compliant: Meets international standards for machinery protection systems.
-
Secure Configuration: Password-protected settings prevent unauthorized changes.
-
Self-Monitoring: Continuous checks on hardware status, input power, and module temperature.
-
Multi-Rack Capability: Single module can serve multiple 19” racks, enabling flexible deployment.
-
Easy Handling: Integrated handle allows quick removal and identification of the module and sensors.
Communication & Data
-
ModBus RTU (Serial): 19.2 kBaud, 8 data bits, even parity, 1 stop bit.
-
Default IP Address: 192.168.255.1, Subnet Mask: 255.255.255.0.
-
ModBus Ethernet: RJ45 socket, 10Base-T.
-
Status Indicators: Green LED shows power supply health.
Technical Specifications
| Feature |
Specification |
| Model / Part Number |
A6824R |
| Module Type |
ModBus Rack Interface Module |
| Compatible Series |
IMR6500 Series |
| Width |
4TE |
| Rack Size |
19” |
| Redundancy |
Optional |
| Hot-Swap Capability |
Yes |
| Data Output |
ModBus RTU Serial & ModBus Ethernet |
| Serial Baud Rate |
19.2 kBaud |
| Data Bits / Parity / Stop Bits |
8 / Even / 1 |
| Default Network Address |
192.168.255.1 |
| Subnet Mask |
255.255.255.0 |
| Ethernet Port |
RJ45, 10Base-T |
| Indicators |
Green LED for Power Status |
| Self-Monitoring |
Hardware, Power Input, Temperature |
| Installation |
Hot-Swappable / 1-Slot Plug-In |
| Standards Compliance |
API 670 Machinery Protection |
Applications
-
Redundant data communication in machinery protection systems.
-
Integration with CSI 6500 and IMR6500 racks for vibration and speed monitoring.
-
Optimized for industrial environments where rack space and hot-swap flexibility are critical.
-
Supports secure multi-rack deployment in plant-wide monitoring networks.
FAQ
Q: Can this module be used in IMR6000 series racks?
A: No, the A6824R is designed specifically for the IMR6500 series. A separate 6TE, non-redundant version exists for IMR6000.
Q: Does the module require powering down the rack for installation?
A: No, it is fully hot-swappable.
Q: How is redundancy configured?
A: Redundancy can be enabled through the module configuration menu, providing automatic failover between primary and backup channels.
Q: What type of network interfaces are supported?
A: ModBus RTU over serial and ModBus Ethernet via RJ45 10Base-T.
