Description
Overview

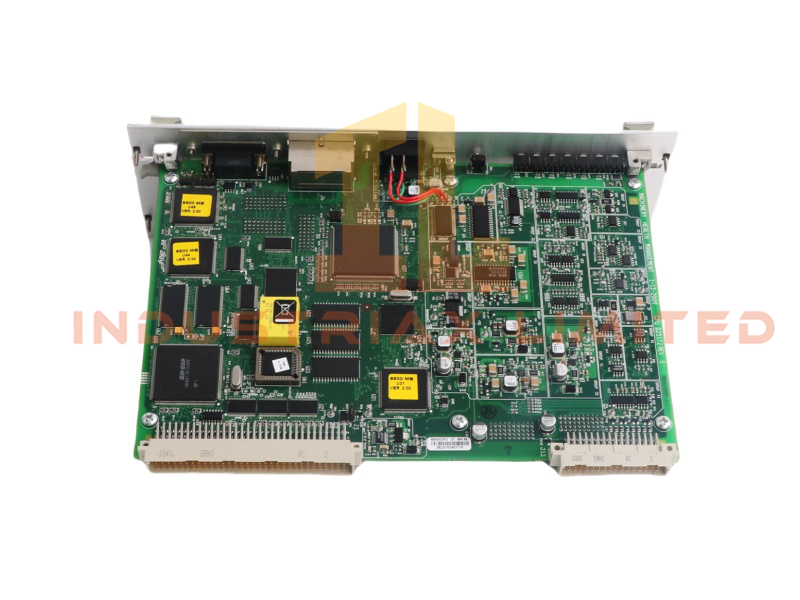

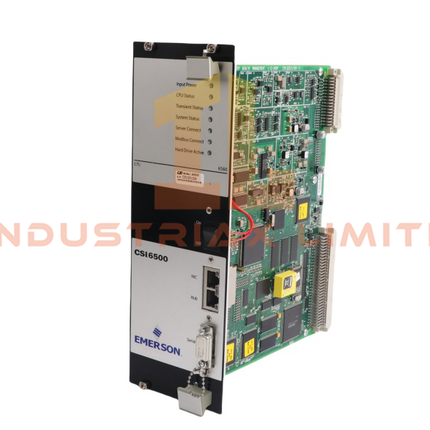

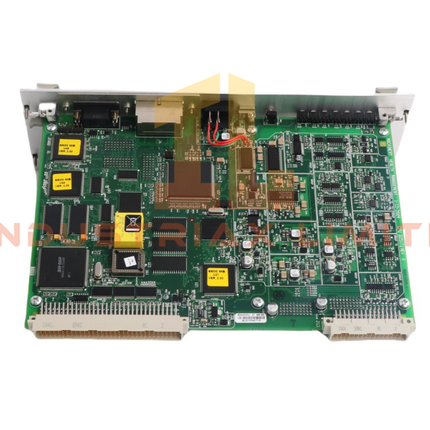

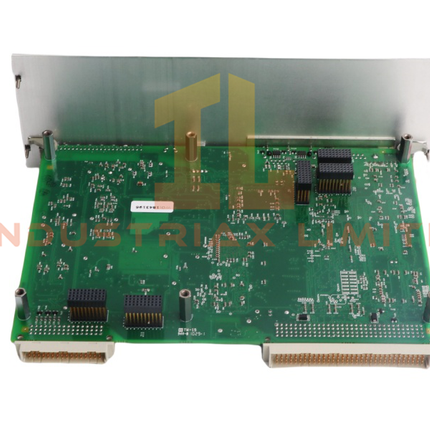

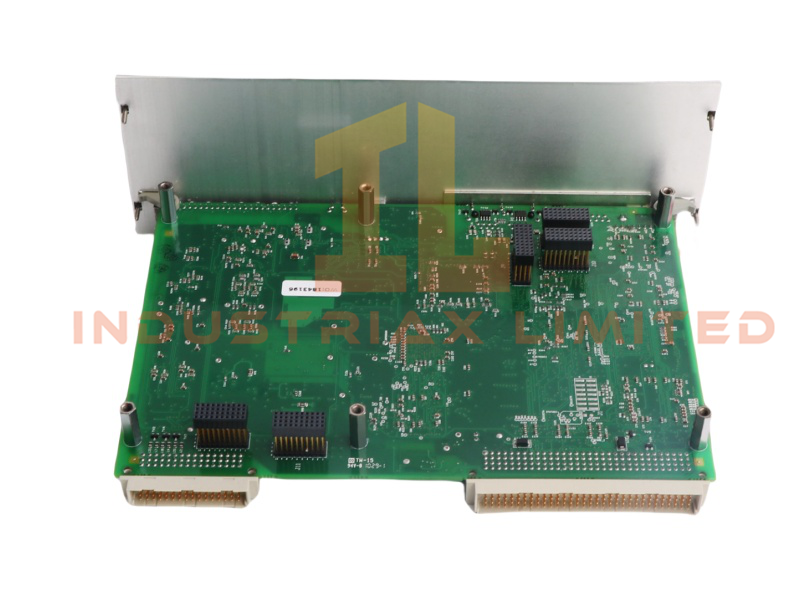

The A6560 transient processor card is a core analytical module within EMERSON’s AMS 6500 Machinery Health Monitoring platform. It is engineered to perform high‑speed vibration and transient data processing, enabling detailed diagnostics for rotating equipment across critical industrial sectors. Its architecture supports continuous condition monitoring, capturing dynamic events that conventional monitoring systems may miss.
Functional Characteristics
The A6560 card acquires raw vibration and dynamic signals from connected sensors and performs real‑time processing to extract key diagnostic parameters. It supports multi‑channel data acquisition, waveform capture, spectral analysis, and transient event detection. These capabilities allow maintenance teams to identify early indicators of mechanical degradation such as imbalance, misalignment, bearing wear, and rotor instability.
The module integrates seamlessly with AMS Machinery Manager software, providing engineers with a unified interface for configuration, trending, and advanced analysis. Its rugged construction ensures stable operation in harsh industrial environments, including elevated temperatures, mechanical vibration, and electrically noisy areas.
Technical Specifications
| Parameter |
Specification |
| Model |
A6560 |
| Product Type |
Transient Processor Card |
| Brand |
EMERSON |
| Product Line |
AMS 6500 |
| Condition |
Brand New |
| Function |
High‑speed transient and vibration data processing |
| Supported Signals |
Dynamic vibration inputs, transient waveform capture |
| Diagnostics |
Internal module health monitoring |
| Communication |
Ethernet‑based system communication |
| System Integration |
AMS 6500 Machinery Health Monitor |
| Weight |
0.48 kg |
| Dimensions |
9 × 18.5 × 26.1 cm |
| Origin |
USA |
| Minimum Order Quantity |
1 |
| Availability |
In Stock |
| HS Code |
8537101190 |
Performance Notes
-
High‑speed transient capture for advanced machinery diagnostics
-
Multi‑channel processing for complex rotating equipment
-
Robust design for long‑term operation in harsh industrial environments
-
Seamless integration with AMS software for visualization and analysis
Application Scenarios
-
Turbine and compressor vibration diagnostics
-
Transient event capture during machine startups and shutdowns
-
Condition monitoring of pumps, motors, and high‑speed rotating assets
-
Predictive maintenance programs requiring detailed waveform analysis
Similar Model Comparison
| Model |
Function |
Typical Use Case |
| A6560 |
Transient processing |
High‑speed vibration diagnostics |
| A6561 |
Dynamic monitoring |
General machinery health monitoring |
| A6500‑TP |
Transient protection |
Protection‑grade transient detection |
FAQ
Q: Does the A6560 support multi‑channel data acquisition? Yes. It is designed to process multiple vibration inputs simultaneously for comprehensive diagnostics.
Q: Can the A6560 operate in high‑vibration environments? Its rugged mechanical design ensures stable performance even in demanding industrial conditions.
Q: Is the A6560 compatible with AMS Machinery Manager software? Yes. It integrates directly with AMS software for configuration, trending, and advanced analysis.
