Description
Overview

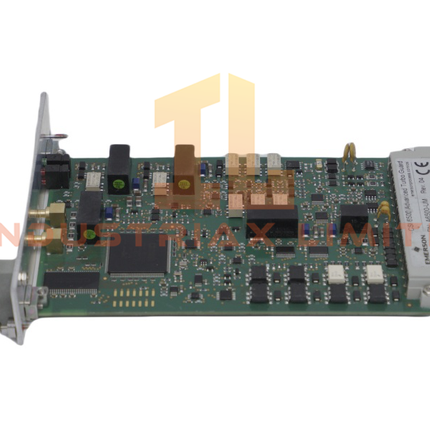

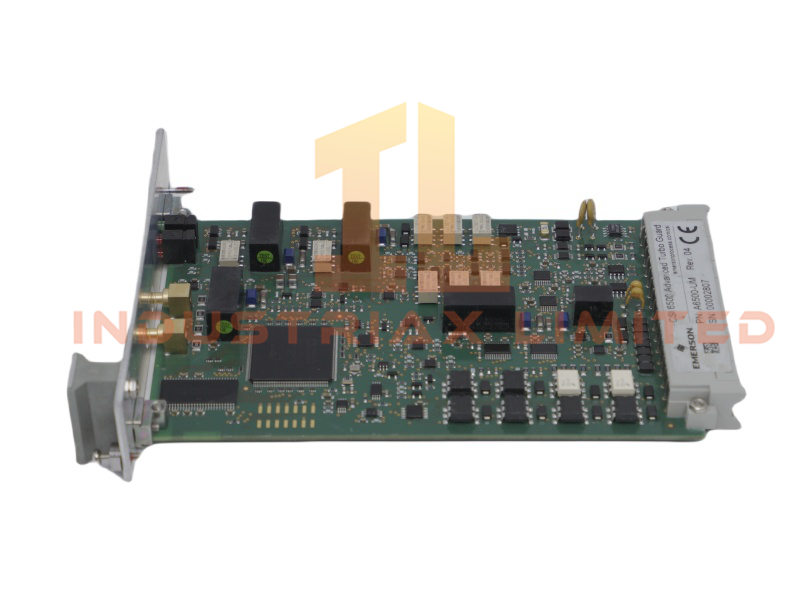

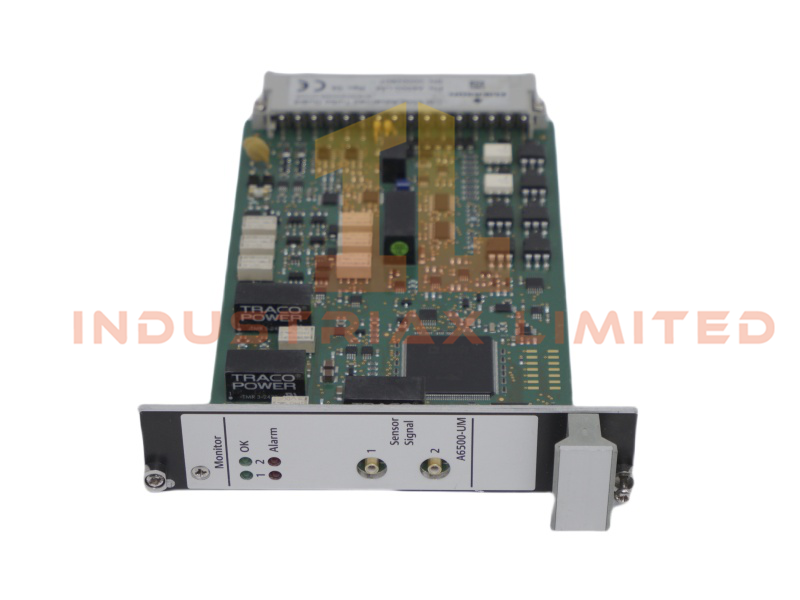

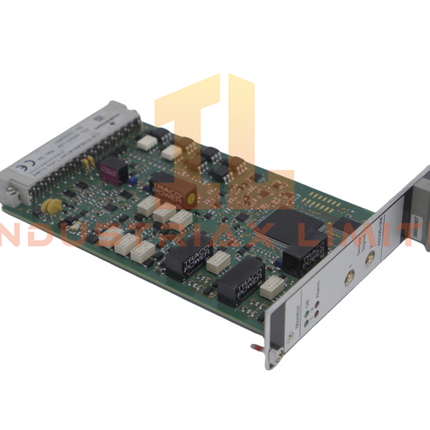

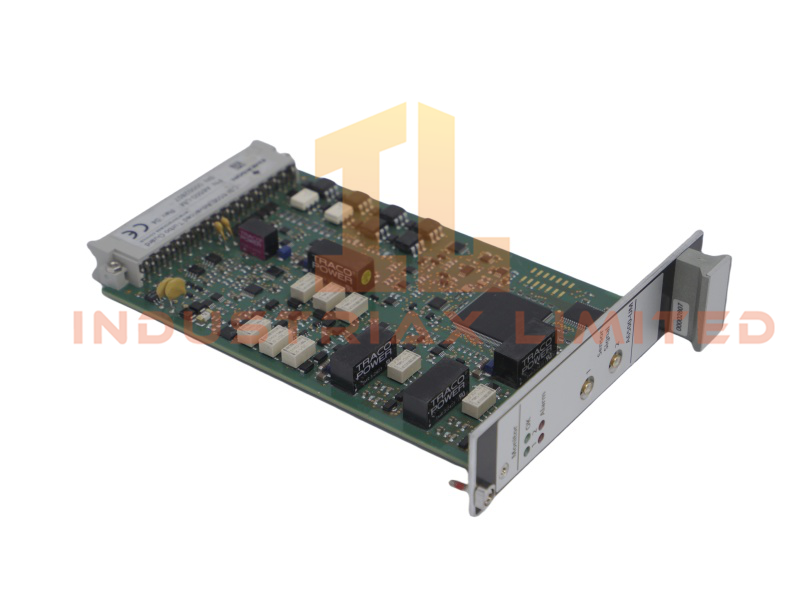

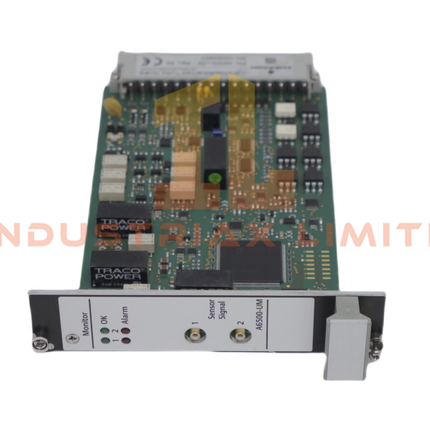

The A6500‑UM Universal Measurement Card is a multi‑function monitoring module designed for Emerson’s AMS 6500 machinery protection and condition monitoring platform. Engineered to support a broad range of sensor types, it enables comprehensive measurement of vibration, temperature, and other critical machine health parameters. Its flexible configuration capabilities make it suitable for diverse rotating equipment across heavy‑duty industrial environments.
Key Features
-
Universal measurement module for AMS 6500 systems
-
Supports multiple sensor types for vibration, temperature, and process parameters
-
High‑resolution signal conditioning and filtering
-
Designed for continuous monitoring of pumps, turbines, compressors, and other rotating assets
-
Robust mechanical construction for harsh industrial environments
-
Seamless integration with AMS software for configuration, trending, and diagnostics
Technical Specifications
Electrical & Measurement Characteristics
| Parameter |
Specification |
| Model Number |
A6500‑UM |
| Module Type |
Universal Measurement Card |
| Supported Sensors |
Vibration probes, accelerometers, RTDs, thermocouples, and other compatible transducers |
| Signal Conditioning |
High‑resolution filtering and processing |
| Measurement Functions |
Vibration, temperature, process parameters (depending on sensor type) |
| System Integration |
AMS 6500 machinery protection and monitoring platform |
Environmental Ratings
| Parameter |
Specification |
| Operating Temperature |
Industrial‑rated range |
| Humidity |
5–95% RH, non‑condensing |
| Contaminant Resistance |
ISA‑S71.04 G3 |
| Shock |
Industrial‑grade shock tolerance |
| Vibration |
Suitable for high‑vibration machinery environments |
Mechanical Data
| Parameter |
Specification |
| Dimensions |
9 × 18.5 × 26.1 cm |
| Weight |
0.48 kg |
| Mounting |
AMS 6500 rack system |
| Country of Origin |
USA |
Logistics
| Parameter |
Specification |
| Condition |
Brand New |
| Availability |
In Stock |
| MOQ |
1 |
| HS Code |
8537101190 |
Functional Description
The A6500‑UM module provides a flexible measurement platform for the AMS 6500 system, enabling users to monitor a wide range of machine health indicators using a single card type. Its universal input design supports vibration sensors, temperature probes, and other industrial transducers, allowing operators to consolidate monitoring functions across different equipment types.
Advanced signal conditioning ensures accurate, noise‑resistant measurements even in electrically and mechanically harsh environments. The module’s integration with AMS software enables engineers to configure channels, set alarm thresholds, and analyze trends, supporting predictive maintenance strategies and reducing unplanned downtime.
Built for long‑term durability, the A6500‑UM withstands shock, vibration, and temperature extremes commonly encountered in heavy industries such as mining, refining, and power generation. Its versatility and reliability make it a core component in multi‑channel machinery protection architectures.
Application Scenarios
-
Multi‑parameter monitoring in AMS 6500 systems
-
Vibration and temperature measurement for rotating machinery
-
Condition monitoring in mining, refining, and power generation
-
Mixed‑sensor environments requiring a universal input module
-
Predictive maintenance and machinery protection programs
FAQ
Q: What types of sensors can the A6500‑UM accept? A: It supports vibration probes, accelerometers, RTDs, thermocouples, and other compatible industrial transducers.
Q: Does the module integrate with AMS software? A: Yes. It supports full configuration, trending, and diagnostics through AMS tools.
Q: Is this module suitable for high‑vibration environments? A: Yes. Its rugged design meets industrial shock and vibration requirements.
