Description
Overview

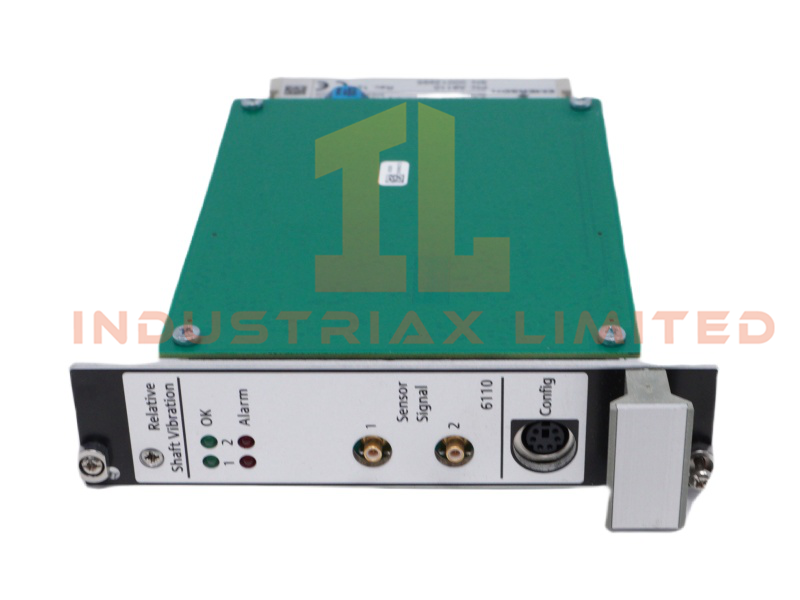

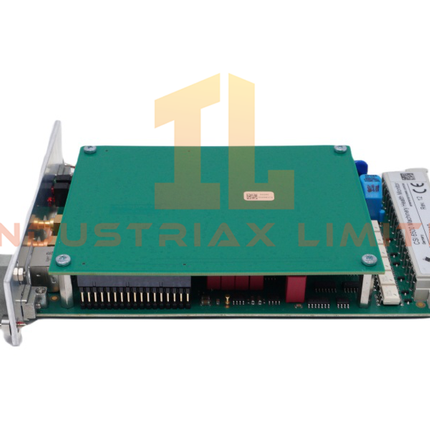

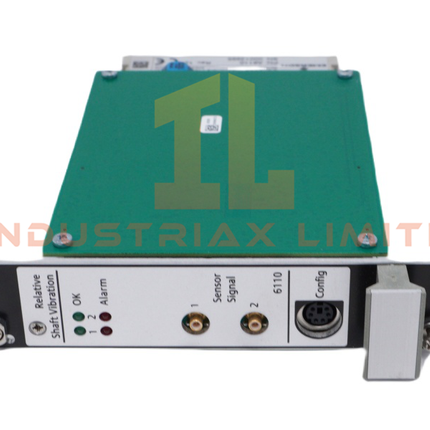

The A6110 Shaft Relative Vibration Monitor is a dedicated measurement module within the Emerson AMS 6500 machinery protection platform. Designed to evaluate shaft‑to‑bearing vibration behavior, it provides high‑resolution monitoring for rotating equipment where early detection of mechanical degradation is essential. Its precise signal conditioning and rugged construction make it suitable for continuous operation in demanding industrial environments.
Key Features
-
Shaft relative vibration monitoring for rotating machinery
-
Designed for AMS 6500 machinery protection systems
-
High‑accuracy signal conditioning for displacement probes
-
Supports continuous vibration trending and alarm generation
-
Robust mechanical design for harsh industrial environments
-
Seamless integration with AMS software for diagnostics and configuration
Technical Specifications
Electrical & Measurement Characteristics
| Parameter |
Specification |
| Module Type |
Shaft Relative Vibration Monitor |
| Measurement Function |
Shaft‑to‑bearing relative vibration |
| Compatible Sensors |
Proximity probes / displacement transducers |
| Signal Processing |
High‑resolution conditioning and filtering |
| Alarm Functions |
Configurable alert and danger thresholds |
| System Integration |
AMS 6500 machinery protection platform |
Environmental Ratings
| Parameter |
Specification |
| Operating Temperature |
Industrial‑rated range |
| Humidity |
5–95% RH, non‑condensing |
| Contaminant Resistance |
ISA‑S71.04 G3 |
| Shock |
Industrial‑grade shock tolerance |
| Vibration |
Suitable for high‑vibration environments |
Mechanical Data
| Parameter |
Specification |
| Dimensions |
3 × 19 × 12.7 cm |
| Weight |
0.3 kg |
| Mounting |
AMS 6500 rack system |
| Country of Origin |
USA |
Logistics
| Parameter |
Specification |
| Condition |
Brand New |
| Availability |
In Stock |
| MOQ |
1 |
| HS Code |
8537101190 |
Functional Description
The A6110 module provides continuous monitoring of shaft relative vibration, a critical indicator of machine health in turbines, compressors, pumps, and other high‑speed rotating assets. By measuring shaft displacement relative to the bearing housing, the module helps identify early‑stage issues such as misalignment, bearing wear, rotor instability, and mechanical looseness.
Its advanced signal conditioning ensures accurate measurement even in electrically noisy environments. When integrated with AMS software, the module supports configuration of alarm thresholds, trending, and diagnostic analysis, enabling predictive maintenance strategies and reducing unplanned downtime.
The module’s rugged design withstands industrial shock, vibration, and airborne contaminants, ensuring long‑term reliability in mission‑critical applications. Its compatibility with the AMS 6500 platform allows multi‑channel monitoring and centralized diagnostics for complex machinery systems.
Application Scenarios
-
Turbine and compressor shaft vibration monitoring
-
High‑speed rotating machinery protection
-
Predictive maintenance programs in refineries and chemical plants
-
Condition monitoring for power generation equipment
-
Multi‑channel vibration analysis in AMS 6500 systems
FAQ
Q: What type of sensors does the A6110 support? A: It is designed for proximity probes and displacement transducers used in shaft relative vibration measurement.
Q: Can the module be configured through AMS software? A: Yes. It integrates fully with AMS tools for setup, trending, and diagnostics.
Q: Is this module suitable for high‑vibration environments? A: Yes. Its construction meets industrial vibration and shock requirements.
