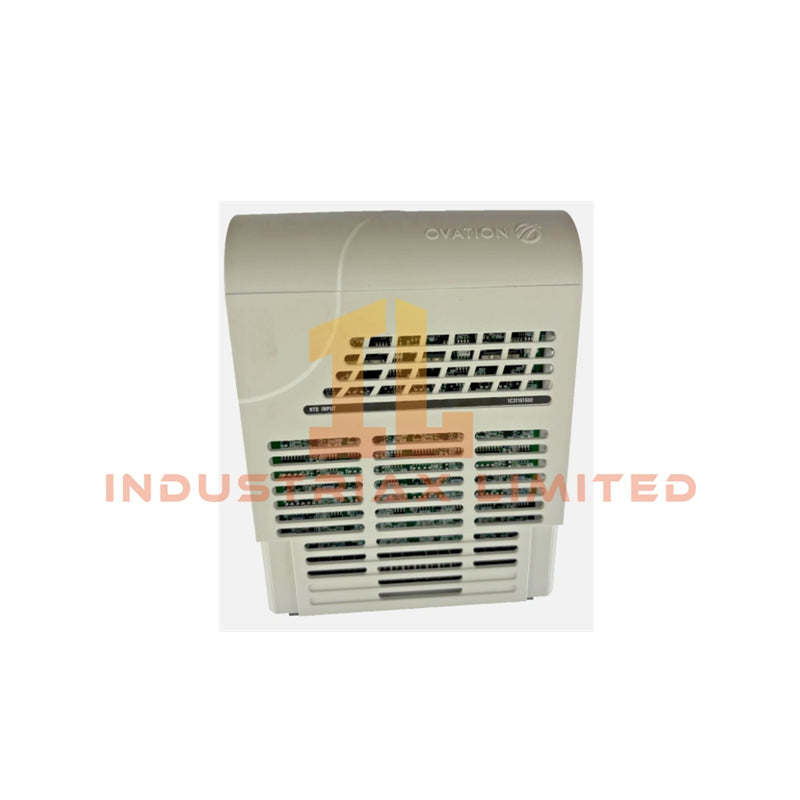

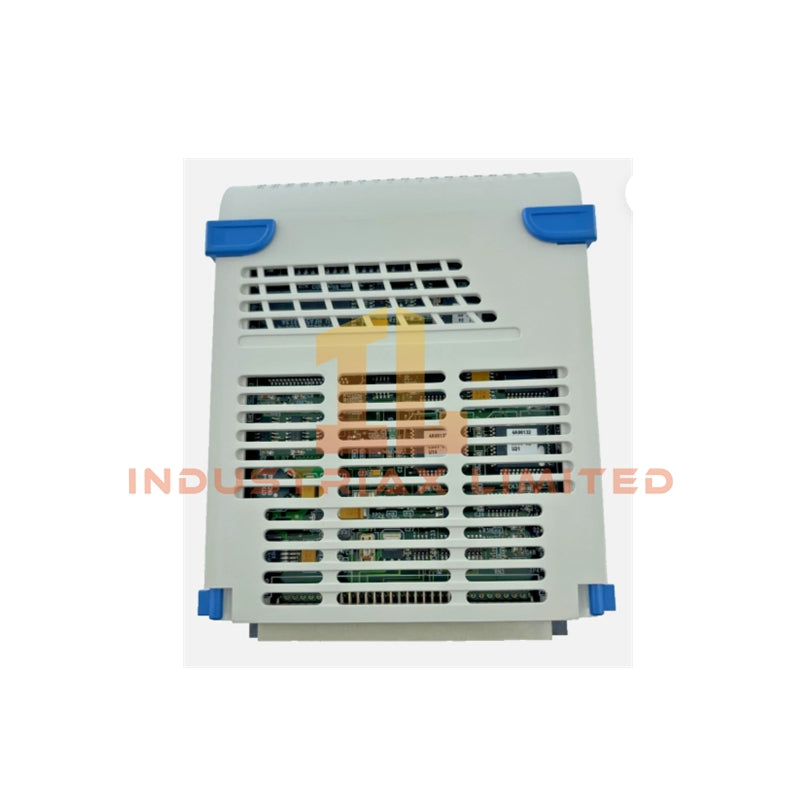

 The 1C31161G02 is a high-accuracy RTD input module developed for Emerson Ovation Distributed Control Systems (DCS). It converts temperature readings from RTD sensors into precise electrical signals for real-time monitoring and control in industrial environments.

Technical Specifications

Input and Measurement

• Input Type: RTD (Resistance Temperature Detector)

• Supported RTD Types: PT100, PT1000 (2-, 3-, or 4-wire configurations)

• Input Resolution: 0.01°C

• Measurement Accuracy: ±0.5% of full scale

Electrical and Power

• Operating Voltage: 24VDC

• Power Consumption: Maximum 1.2W

• Output Signal: MODBUS RTU compatible

Environmental and Mechanical

• Operating Temperature Range: -40°C to +85°C

• Storage Temperature Range: -40°C to +85°C

• Ingress Protection: IP67 (dustproof and waterproof)

• Dimensions: 6 cm × 12.5 cm × 6.3 cm

• Weight: 0.9 kg

Certifications

• CE

• RoHS

Functional Highlights

• Converts RTD sensor signals to control-ready electrical outputs

• Supports multiple RTD types with flexible wiring

• High-resolution temperature acquisition for critical processes

• Rugged, sealed design suitable for extreme industrial environments

• Seamless integration with Emerson Ovation DCS

Applications

• Power generation monitoring

• Chemical and petrochemical process control

• Environmental and HVAC monitoring

• Critical industrial temperature measurement

FAQ

Q: Which RTD types are compatible with this module?
A: The module supports PT100 and PT1000 sensors with 2-, 3-, or 4-wire configurations.

Q: Can it operate in extreme temperatures?
A: Yes, it is rated for -40°C to +85°C and IP67 protection for harsh conditions.

Q: How does it communicate with control systems?
A: It uses MODBUS RTU protocol for seamless integration with Emerson Ovation DCS.

Specifications

• Brand: EMERSON

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
