Product Description
Overview

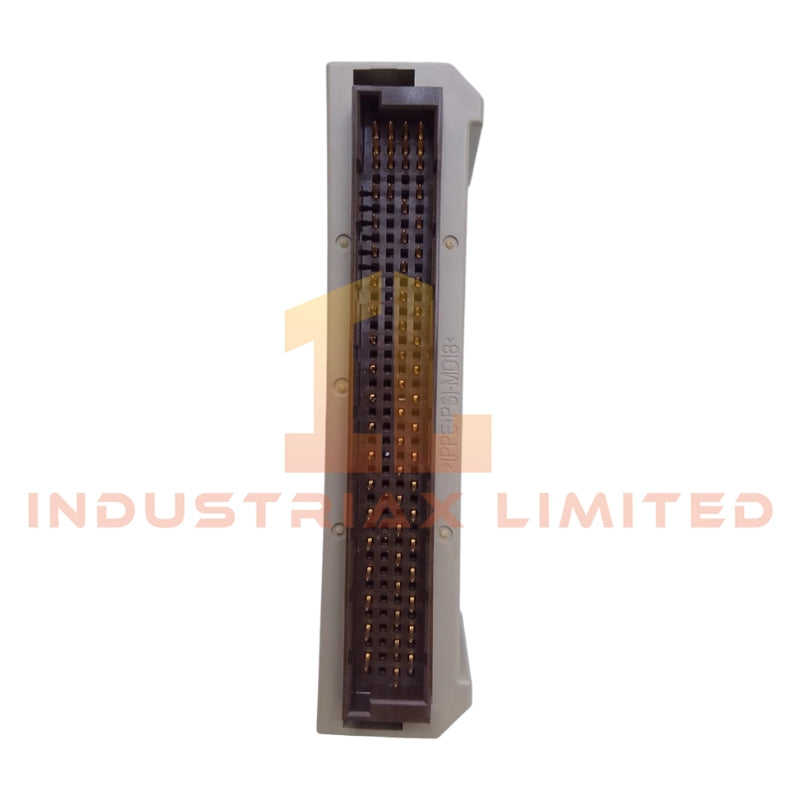

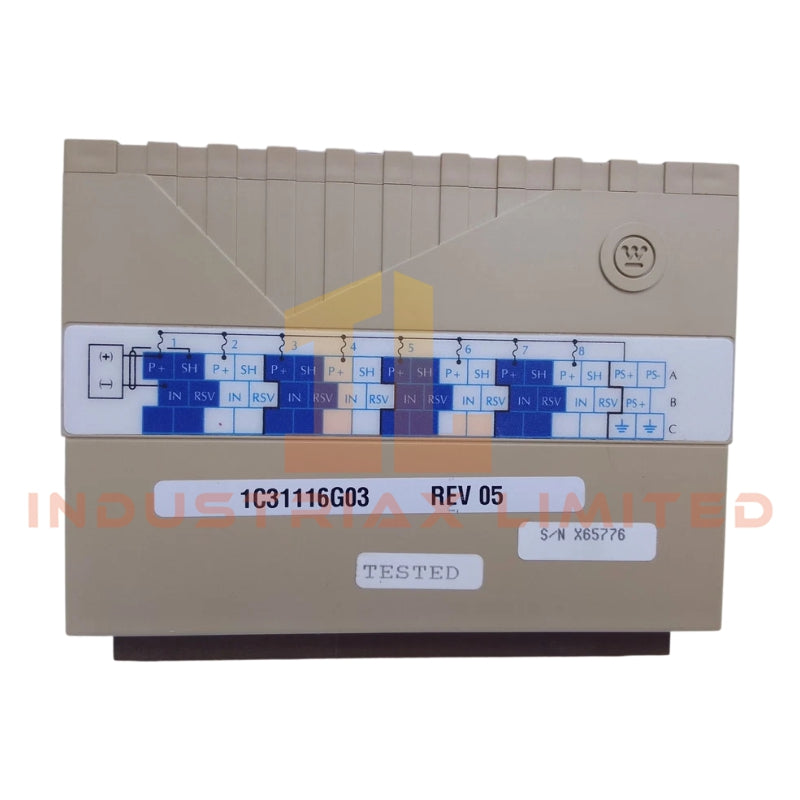

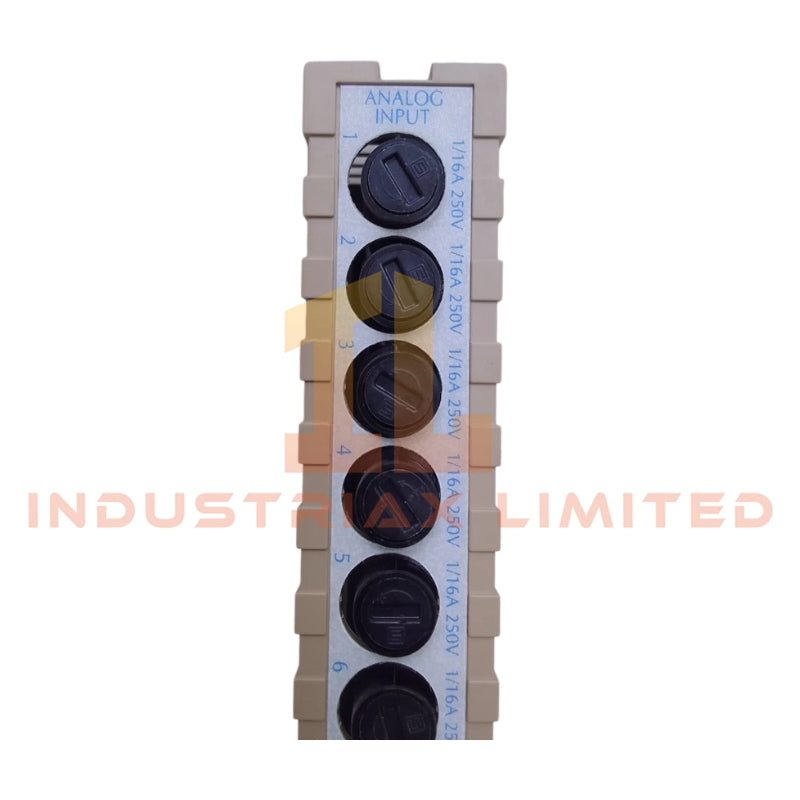

The 1C31116G03 (Ovation 1C31116G03) is a high-performance analog input module engineered for seamless integration with the Emerson Ovation Distributed Control System (DCS). Designed for precise signal monitoring and control applications, this module delivers reliable local-powered current inputs with high resolution and accuracy.
Technical Specifications
| Specification |
Details |
| Manufacturer |
Emerson |
| Model / Part Number |
1C31116G03 |
| Product Type |
Analog Input Module |
| Input Channels |
8 Analog Inputs |
| Input Signal Range |
0–20 mA (Locally Powered) |
| Resolution |
13-bit |
| Accuracy |
±0.1% of full scale (typical) |
| Response Time |
<100 ms |
| Isolation |
Channel-to-channel and channel-to-system |
| Operating Temperature |
0–60°C |
| Storage Temperature |
-40–85°C |
| Dimensions (L × W × H) |
15.2 cm × 10.8 cm × 2.5 cm (6 × 4.3 × 1 in) |
| Weight |
2 kg (4.4 lbs) |
Applications
The 1C31116G03 is ideal for real-time process monitoring, control loop feedback, and industrial automation applications in power generation, water treatment, and other critical infrastructure environments. It supports precise analog input conversion, ensuring accurate system performance and reliability.
FAQ
Q: Can this module support other input ranges besides 0–20 mA?
A: The module is designed specifically for 0–20 mA local-powered inputs. Alternative ranges require external signal conditioning.
Q: Is the module compatible with previous Ovation DCS versions?
A: Yes, it is backward compatible with most Emerson Ovation system generations.
Q: How does this model compare to the 1C31115G02?
A: The 1C31116G03 offers improved resolution (13-bit vs. 12-bit) and faster response time, providing enhanced signal accuracy for critical processes.
